GE Responder 2000 Service Manual

SECTION 8: Specifications and Safety
2025653-048 Revision B Responder
™
2000 Page 106
Energy Levels and Patient Impedance
The Biphasic Truncated Exponential (BTE) waveform delivers energy that is variant with the patient impedance. The
waveform is designed to deliver the selected energy when the patient impedance is 50 Ohms, as shown in the above
waveform table.

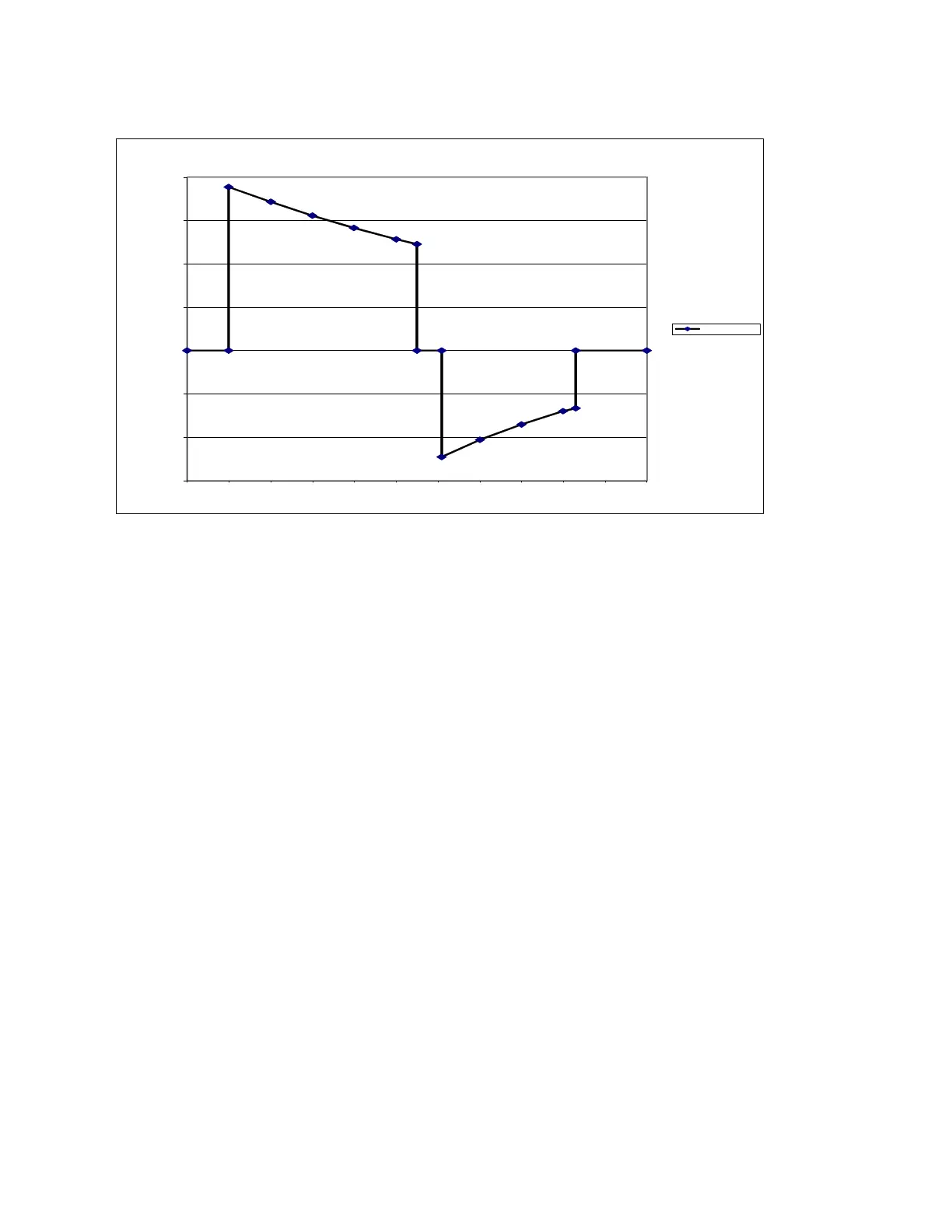

270J Waveform with 50 Ohm Resistive Load
-1500.0
-1000.0
-500.0
0.0
500.0
1000.0
1500.0
2000.0
-1.000 0.000 1.000 2.000 3.000 4.000 5.000 6.000 7.000 8.000 9.000 10.000
Time [ms]
V
o
l
t
s
270J/50ohm
