SECTION 4: Repair
2025653-048 Revision B Responder
™
2000 Page 40

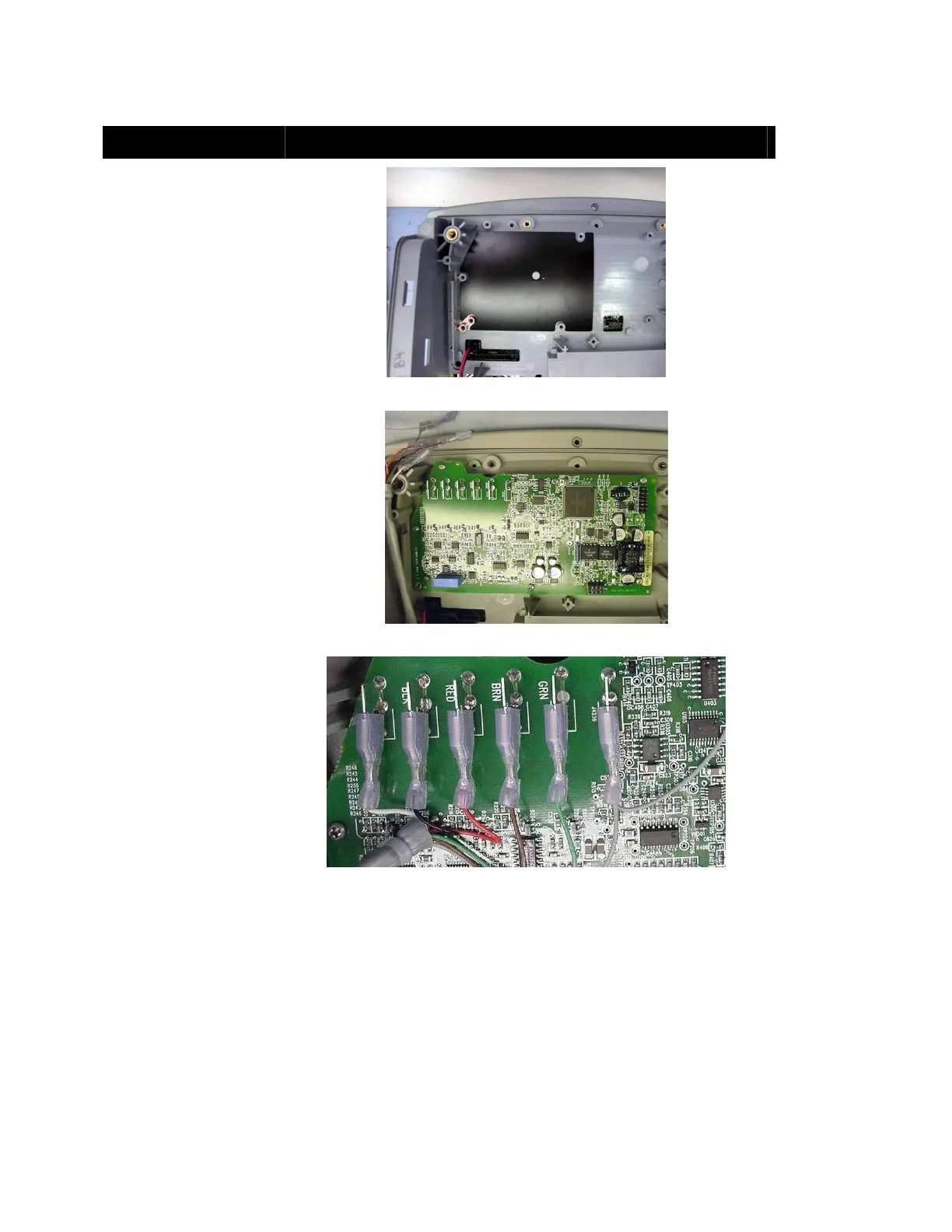

ECG Board Installation
Assembly Step Details
Install the ECG Insulator in
the Front Body.
Figure 39: ECG Insulator Installed
Install the ECG Board to
the Front Body by
connecting J412 on the
ECG Board to J212 on the
Main Board.
Install the seven Phillips
screws to hold the ECG
Board in place.
Figure 40: ECG Board Installed
Connect the ECG cable to
the ECG Board.
• J4231 White
• J4232 Black
• J4233 Red
• J4234 Brown
• J4235 Green
• J4236 Gray
Notes: Gently pull on each
connector to ensure it is
locked in place.
The extra gray connector
will be connected later.
Figure 41: ECG Cable Installation Detail
To Next Page
