SECTION 4: Repair
2025653-048 Revision B Responder
™
2000 Page 45
Therapy Board Installation
Assembly Step Details
Connect the ribbon cable to
J110 on the Therapy
Board.
Note: See the Ribbon
Cable Installation Notes for
proper installation (Figures
6, 7 and 8).
Fold the connected cable
under the Therapy Board.
Install the Therapy Board
with four Phillips screws.

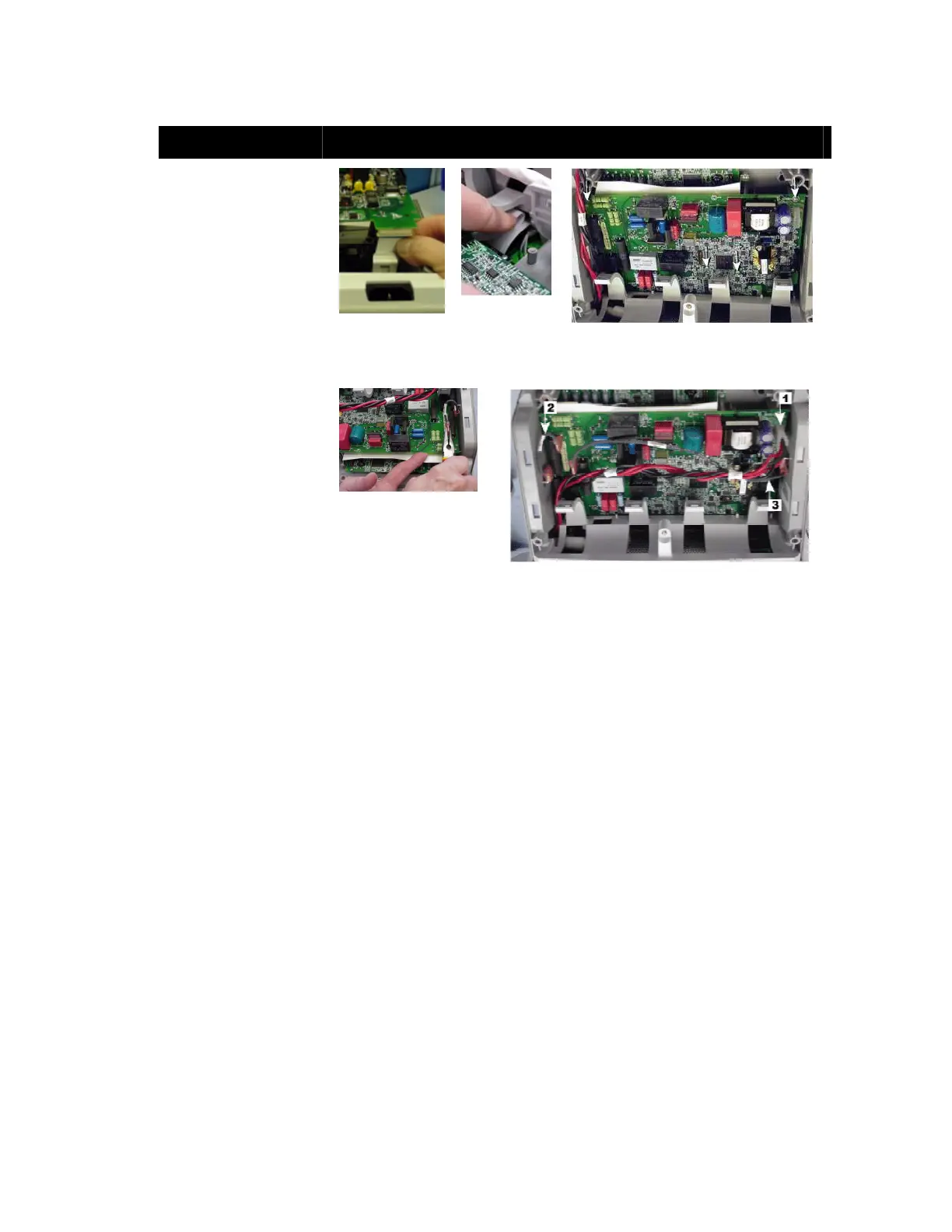

Figure 52:
Therapy Board
Ribbon Cable
Installation
Figure 53:
Ribbon Cable
Routing
Figure 54: Therapy Board Installed
Connect the following
cables to the Therapy
Board:
1. J103: Therapy Power
cable
2. J217 Charge Drain
cable (left)
3. J216 Charge Drain
cable (right)
Note: Use one finger to
support the Therapy Board
when making the
connections.
Figure 55: Therapy
Board Support
Figure 56: Therapy Board Cables Installed
To Next Page
