Section 5: Performance Verification and Safety Testing
2025653-048 Revision B Responder
™
2000 Page 58
Device Configuration

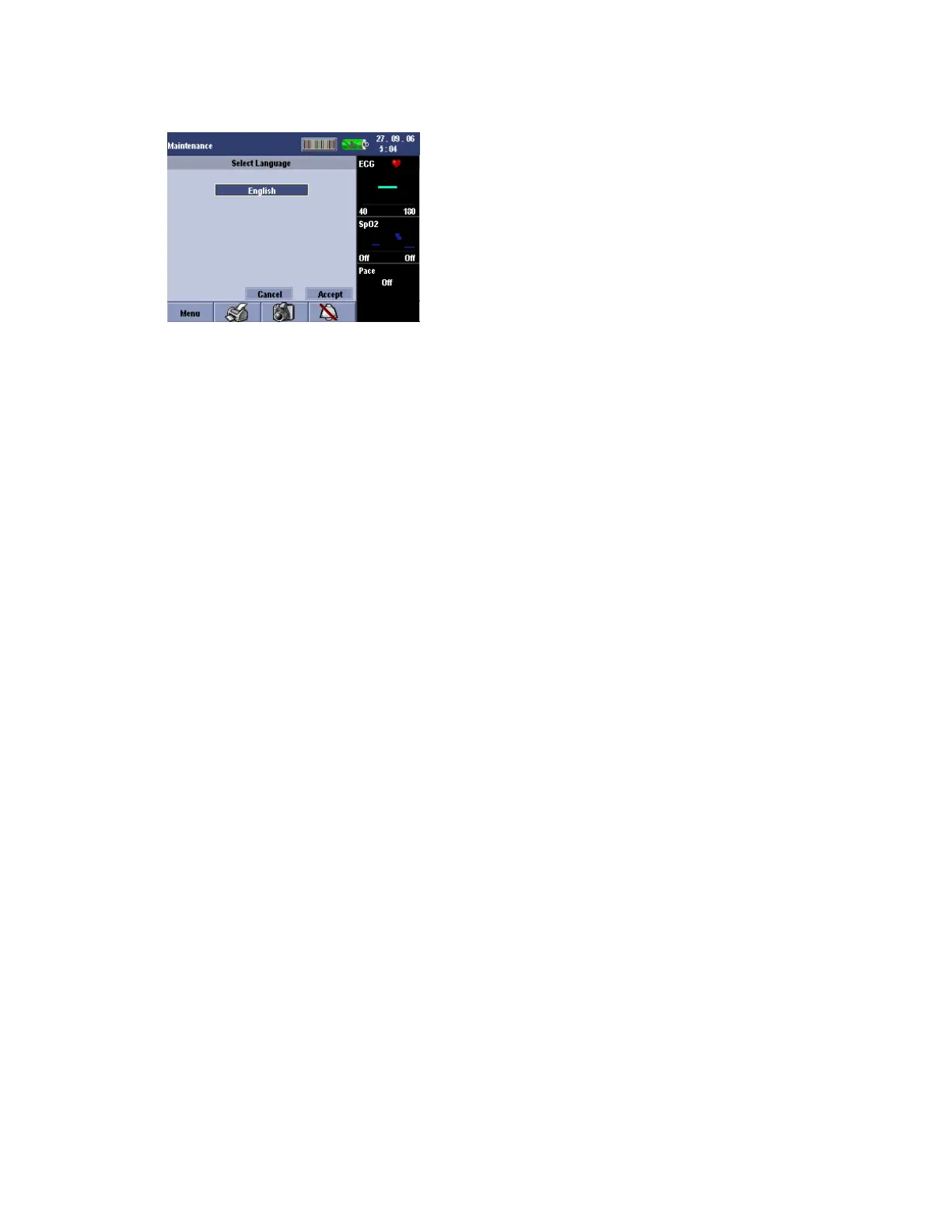

Select Language
Sets the system language to: English, French, German, Italian, Dutch, Portuguese, Russian, Spanish, or Swedish. Once a
new language is selected, the Responder 2000 cycles power.
Note: Maintenance mode text is always in English, regardless of the language selected.
Stored Data Management
Clear Event Logs
Clears all stored event logs. Always clear event logs after the Main board is replaced.
Clear Service Required Indicator
Clears the Service Required LED. Once a service fault is corrected, use the Clear Service Required menu item to turn
off the Service Required LED. If the LED does not clear, another fault is present.
Clear Settings Menu Password
Clears the Settings Menu password.
Clear All Stored Data
Clears all stored data, including:
• Event Logs
• Service Required Indicator
• Settings Menu Password
• All other Settings.
Send Event Logs to PC
Event logs may be downloaded to a PC and sent to Technical support to help troubleshoot a problem.
1. Go to Service Mode (password HEART1).
2. Select Stored Data Management > Send Event Logs To PC.
3. On the PC, start the Windows-based ServiceLink2000 Application.
4. Select the appropriate Com Port and click Start Com.
5. Click Receive Events. A progress bar is displayed.
6. When downloaded, save the events file to the desired location. A progress bar is displayed while the CSV file is
saved.
7. The ServiceLink2000 program closes after the file is successfully saved.
