SECTION 4: Repair
2025653-048 Revision B Responder
™
2000 Page 46
Capacitor Installation
Assembly Step Details

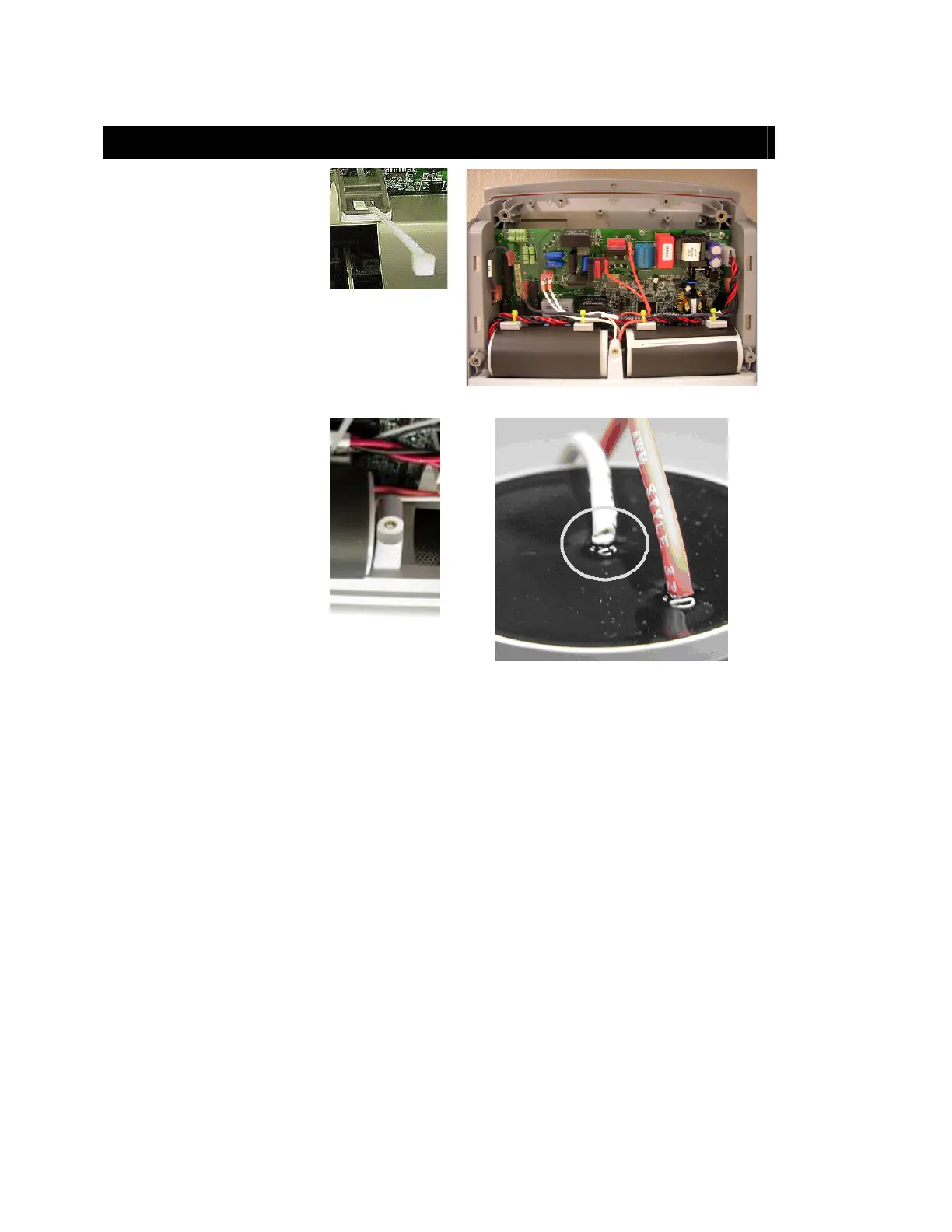

Figure 57: Tie
Wrap Installation
Detail
Figure 58: Capacitors Installed
Insert one tie wrap through each
capacitor support bracket. The tie
wraps are used to secure the
Therapy Board power cable, left
Charge Drain cable, and the
Capacitor lead wires after the lead
wires are connected.
Place each Capacitor in its support
bracket.
Connect the lead wires to the
Therapy Board:
• J105 & J107: White lead wires
• J104 & J106: Red lead wires
Secure the Therapy Board power
cable, left Charge Drain cable, and
the Capacitor lead wires with the tie
wraps.
Caution: Equipment Damage.
Misrouting or leaving too much slack
in the wires may cause wires to
contact hot components or become
damaged during reassembly.
Ensure all wires are routed and all
plugs are oriented exactly as shown
in Figure 58: Capacitors Installed.
Specific areas include:
• Red capacitor wires must have
no slack between the board
connectors and the tie wrap to
keep the wires away from the
Therapy Board components.
• The red/black cable bundle
must be routed down the side
of the left capacitor, not
behind it.
• Ensure the lead wires are
routed behind the plastic
center mount.
Caution: Equipment Damage.
When installing the capacitors,
avoid excess strain on the capacitor
leads. Excessive force can break or
damage the lead connection.
Figure 59: Lead
Wire Installation
Detail
Figure 60: Capacitor Lead Break
To Next Page
