Section 5: Performance Verification and Safety Testing
2025653-048 Revision B Responder
™
2000 Page 66
Lead Detection Test

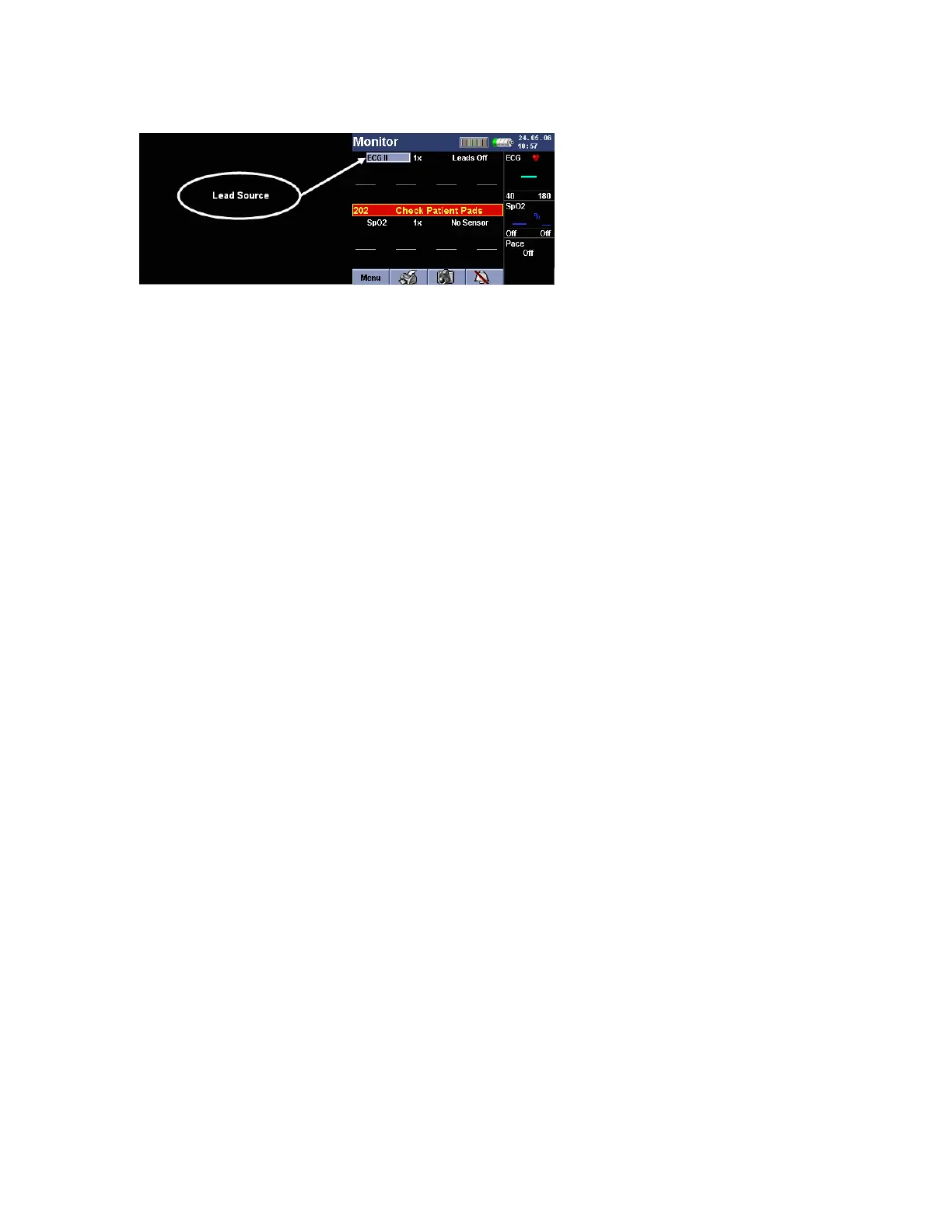

The diagram above indicates where the lead source is displayed.
1. Verify Responder 2000 is powered on.
2. Verify default Lead Source on Responder 2000 is ECG II.
3. Connect the Spoons cable between Responder 2000 and Impulse 4000 (Apex and Sternum).
4. Select Spoons on the Responder 2000 display as the lead source and ensure the signal is displayed.
5. Disconnect Spoons and connect Paddles cable to the Responder 200. Ensure paddles are securely stored on
left and right side of Responder 2000.
6. Select Paddles on the Responder 2000 display as the lead source and ensure the signal is displayed.
7. Disconnect paddles cable from Responder 2000 and connect pads cable to Responder 2000 and
Apex/Sternum of Safety Analyzer.
8. Select Pads on the Responder 2000 display as the lead source and ensure the signal is displayed.
9. Connect ECG Sync Cable to Responder 2000’s ECG connector.
10. Place the Responder 2000 in External Sync mode by performing the following:
a. Press Manual button on Responder 2000.
b. Select 2J with Rotary Selection knob.
c. Turn Rotary Selection knob until No Sync is highlighted.
d. Press Rotary Selection knob to change to Sync.
11. Verify Manual – Ext Sync is shown on upper left corner of Responder 2000 display.
12. Disconnect Sync cable from Responder 2000 and connect a 3 Lead ECG cable.
13. Use Rotary Selection knob to exit previous menu and then select the Lead source.
14. Verify the following leads may be selected:
o Paddles
o ECG I
o ECG II
o ECG III
15. Disconnect 3 Lead ECG cable from Responder 200 and connect 5 Lead ECG cable to Responder 2000.
16. Verify the following leads may be selected:
o Paddles
o ECG I
o ECG II
o ECG III
o aVR
o aVF
o aVL
o V
