Section 5: Performance Verification and Safety Testing
2025653-048 Revision B Responder
™
2000 Page 56

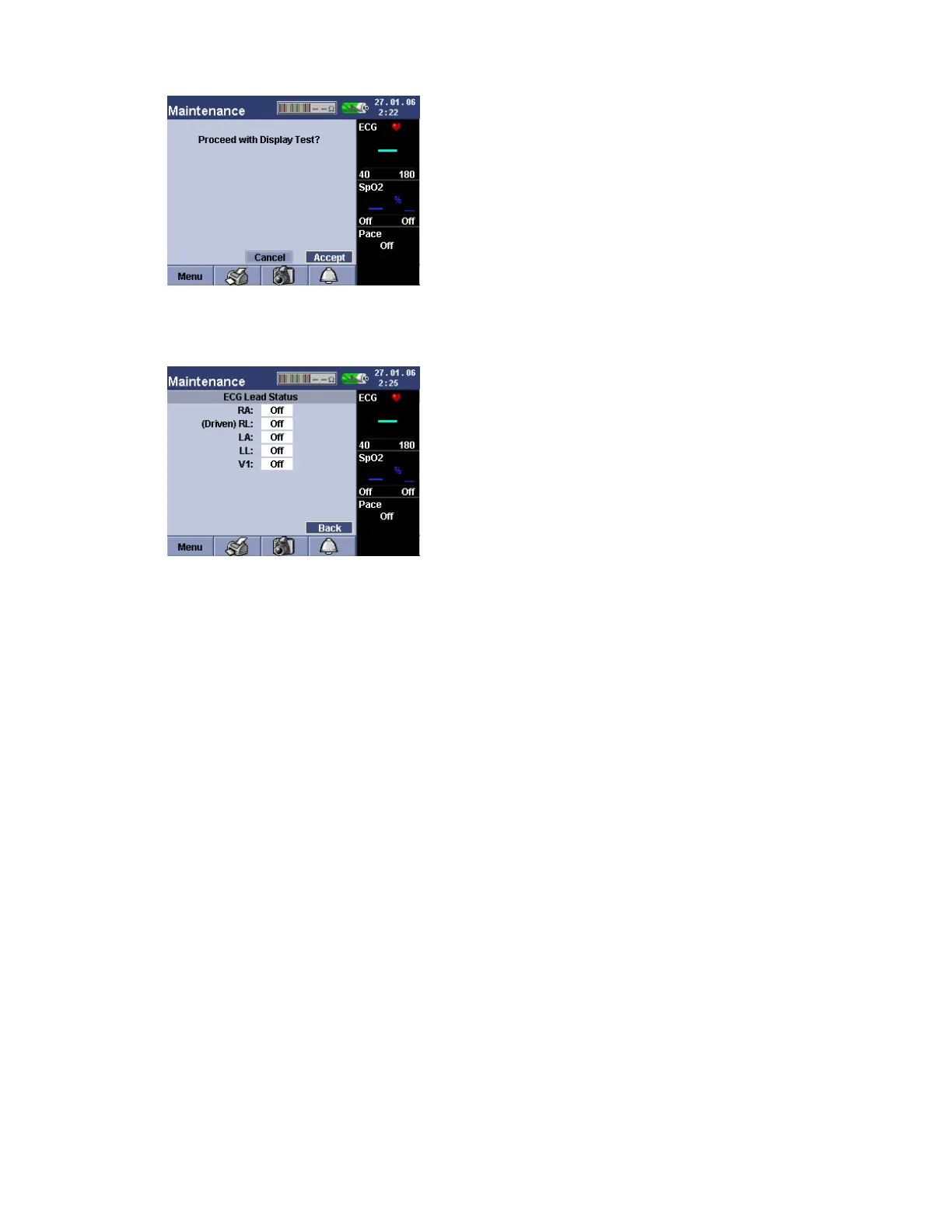

Display Test
The following colors fill the entire display in succession: White, Red, Green, Blue, and Black. Verify no pixels are stuck or
missing. After the test, the Responder 2000 then automatically cycles power.
ECG Lead Test
Displays lead status (on or off). See the ECG Lead Test Procedure on page 67 for proper indications.
Notes:
• If the lead RA, LA, LL or V1 is not connected (to either a Patient or ECG Simulator) or the lead is broken, the
Lead status displays OFF.
• If (Driven) RL lead is not connected or broken, all lead status are displayed OFF.
