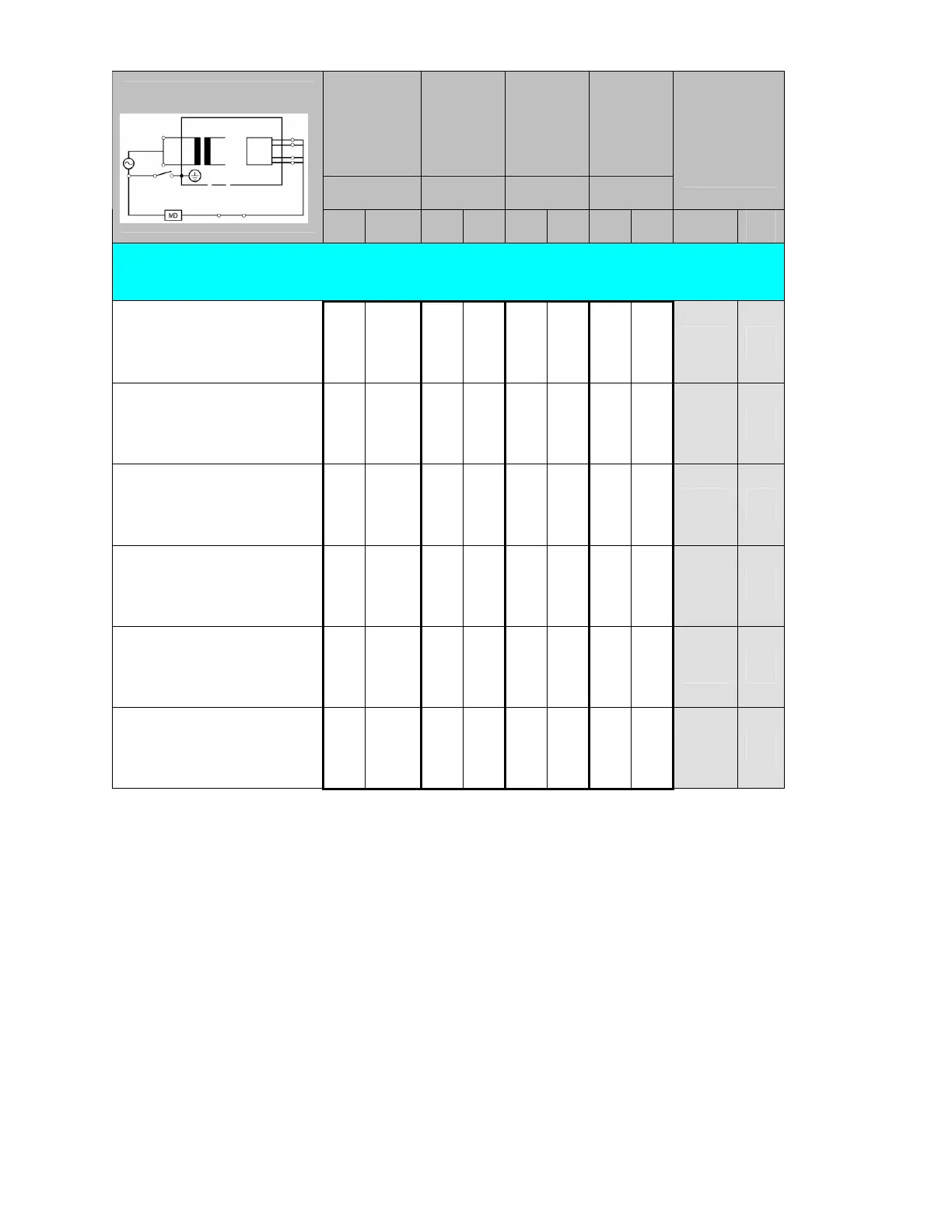

Section 5: Performance Verification and Safety Testing
2025653-048 Revision B Responder
2000 Page 82
S1: DPDT
Polarity
a) Normal
b) Reverse
S2: SPDT
Neutral
a) Closed
b) Open
S3: SPDT
Ground
a) Closed
b) Open
S4: SPDT
Test point
a) Internal
b) TP1
Position Position Position Position
Maximum
Limits
(uA)
Test Description
a b a b a b a b EN/IEC UL
Patient leakage current measurements: SpO
2
TP1 connected to “SpO
2
” (all SpO
2
connections tied together), Type BF defibrillation proof limits
Polarity: Normal
Neutral: Normal (Closed)
Ground: Normal (Closed)
X X X X
100 100
Polarity: Normal
Neutral: Open
Ground: Normal (Closed)
X X X X
500 500
Polarity: Normal
Neutral: Normal (Closed)
Ground: Open
X X X X
500 500
Polarity: Reverse
Neutral: Normal (Closed)
Ground: Open
X X X X
500 500
Polarity: Reverse
Neutral: Open
Ground: Normal (Closed)
X X X X
500 500
Polarity: Reverse
Neutral: Normal (Closed)
Ground: Normal (Closed)
X X X X
100 100
