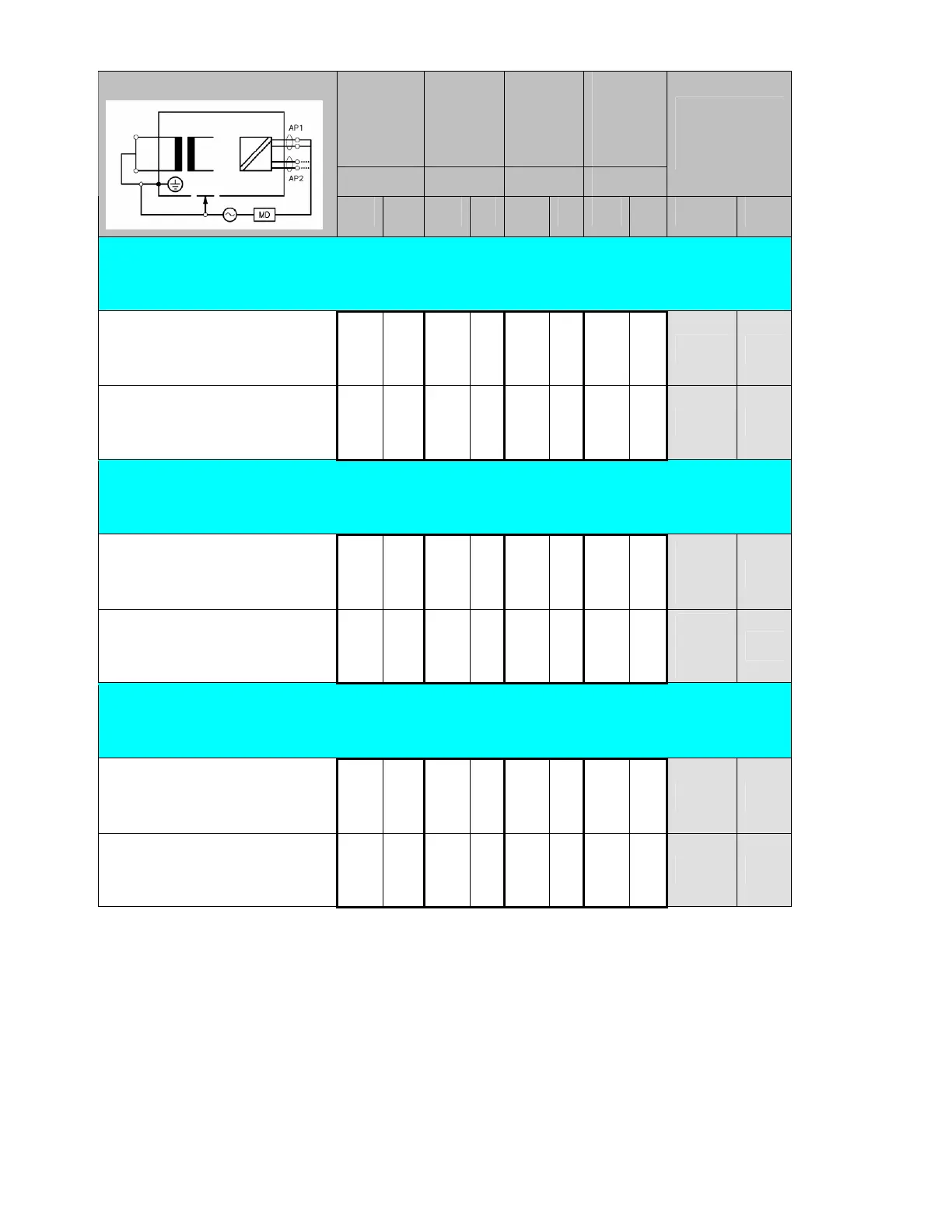

GE Responder 2000 Service Manual

Section 5: Performance Verification and Safety Testing
2025653-048 Revision B Responder
™
2000 Page 84
S1: DPDT
Polarity
a) Normal
b) Reverse
S2: SPDT
Neutral
a) Closed
b) Open
S3: SPDT
Ground
a) Closed
b) Open
S4: SPDT
Test point
a) Internal
b) TP1
Position Position Position Position
Maximum Limits
(uA)
Test Description
a b a b a b a b EN/IEC UL
Patient leakage current, Mains on Applied Part (All SIP/SOPs Grounded): LEADS
MD connected to “LEADS” (all LEADS connected together), Type CF defibrillation proof limits
Caution: mains voltage on “LEADS”
Polarity: Normal
Neutral: Open
Ground: Normal (Closed)
X X X X 50 50
Polarity: Reverse
Neutral: Open
Ground: Normal (Closed)
X X X X 50 50
Patient leakage current, Mains on Applied Part (All SIP/SOPs Grounded): PADDLES
MD connected to “PADDLES” (all PADDLES connections tied together), Type CF defibrillation proof limits
Caution: mains voltage on “PADDLES”
Polarity: Normal
Neutral: Open
Ground: Normal (Closed)
X X X X
100
(60601-
2-4)
50
Polarity: Reverse
Neutral: Open
Ground: Normal (Closed)
X X X X
100
(60601-
2-4)
50
Patient leakage current, Mains on Applied Part (All SIP/SOPs Grounded): SpO
2
MD connected to “SpO
2
” (all SpO
2
connections tied together), Type BF defibrillation proof limits
Caution: mains voltage on “SpO
2
”
Polarity: Normal
Neutral: Open
Ground: Normal (Closed)
X X X X
5,000 5,000
Polarity: Reverse
Neutral: Open
Ground: Normal (Closed)
X X X X
5,000 5,000
