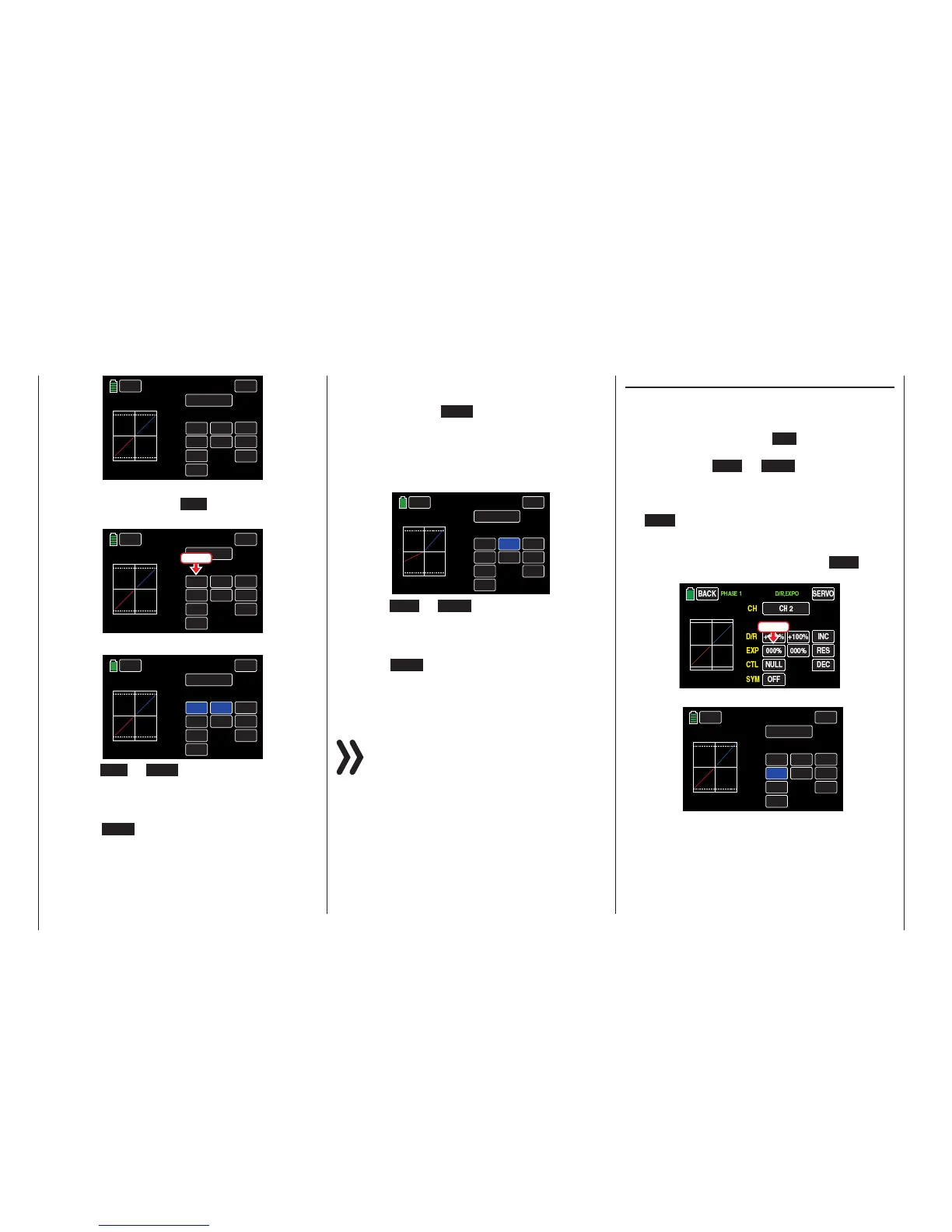

To set simultaneous dual rate values, make sure the
SYM line value button is ON . Then press a value
field in the D/R line:
BACK
CH
D/R
EXP
CTL
AILE
+100%
+100%
L 1
INC
RES
DEC
PHASE 1
000%
000%
SERVO
SYM
ON
D/R,EXP
Press
Both value fields highlight blue:
BACK
CH
D/R
EXP
CTL
AILE
+100%
+100%
L 1v
INC
RES
DEC
PHASE 1
000%
000%
SERVO
SYM
ON
D/R,EXP
Press the INC or DEC button at the right edge of
the display to increase/decrease the values. Alterna-
tively, press the arrow keys ( pq ) to the left of the
display screen to achieve the same result.
Press the  RES button to reset the changed value
back to the default.
The adjustment range is ±125%.
Setting Asymmetrical Dual Rate Values
To set individual dual rate values, make sure the SYM
line value button is  OFF . Then press to highlight
the value fields in the D/R line one at a time. Use the
left-side column to set the dual rate to the minus side
of the control travel and use the right-side column to
set the dual rate to the plus side of the control travel:
BACK
CH
D/R
EXP
CTL
AILE
+050%
+125%
L 1
INC
RES
DEC
PHASE 1
000%
000%
SERVO
SYM
OFF
D/R,EXP
Press the INC or  DEC button or the at the right
edge of the display to increase/decrease the values.
Alternatively, press the arrow keys ( pq ) to the left of
the display screen to achieve the same result.
Press the  RES button to reset the changed value
back to the default.
The dual rate curve is automatically displayed in the
graph.
Attention
For safety reasons, the dual rate value should
not fall below 20%.
Exponential Function
Set the exponential function the same way as the dual
rate function.
To set simultaneous exponential values, make sure
the SYM line value button is ON. Then press a val-
ue field in the EXP line. Both value fields highlight
blue. Press the INC or DEC button at the right
edge of the display to increase/decrease the values.
Alternatively, press the arrow keys ( pq ) to the left of
the display screen to achieve the same result. Press
the RES button to reset the changed value back to
the default.
To set individual, asymmetrical exponential values,
make sure the SYM line value button is OFF. Then
press the value fields in the EXP line one at a time:
Press
The field highlights blue:
BACK
CH
D/R
EXP
CTL
AILE
+100%
+100%
L 1
INC
RES
DEC
PHASE 1
000%
000%
SERVO
SYM
OFF
D/R,EXP
Use the left-side column to set the expo value to the
minus side of the control travel and use the right-side
column to set the expo value to the plus side of the
control travel.
