GRAUPNER mz-24 PRO - THR.CUT Motor - Throttle Cut Motor off

This submenu option is not available to motor-less glider
model types.

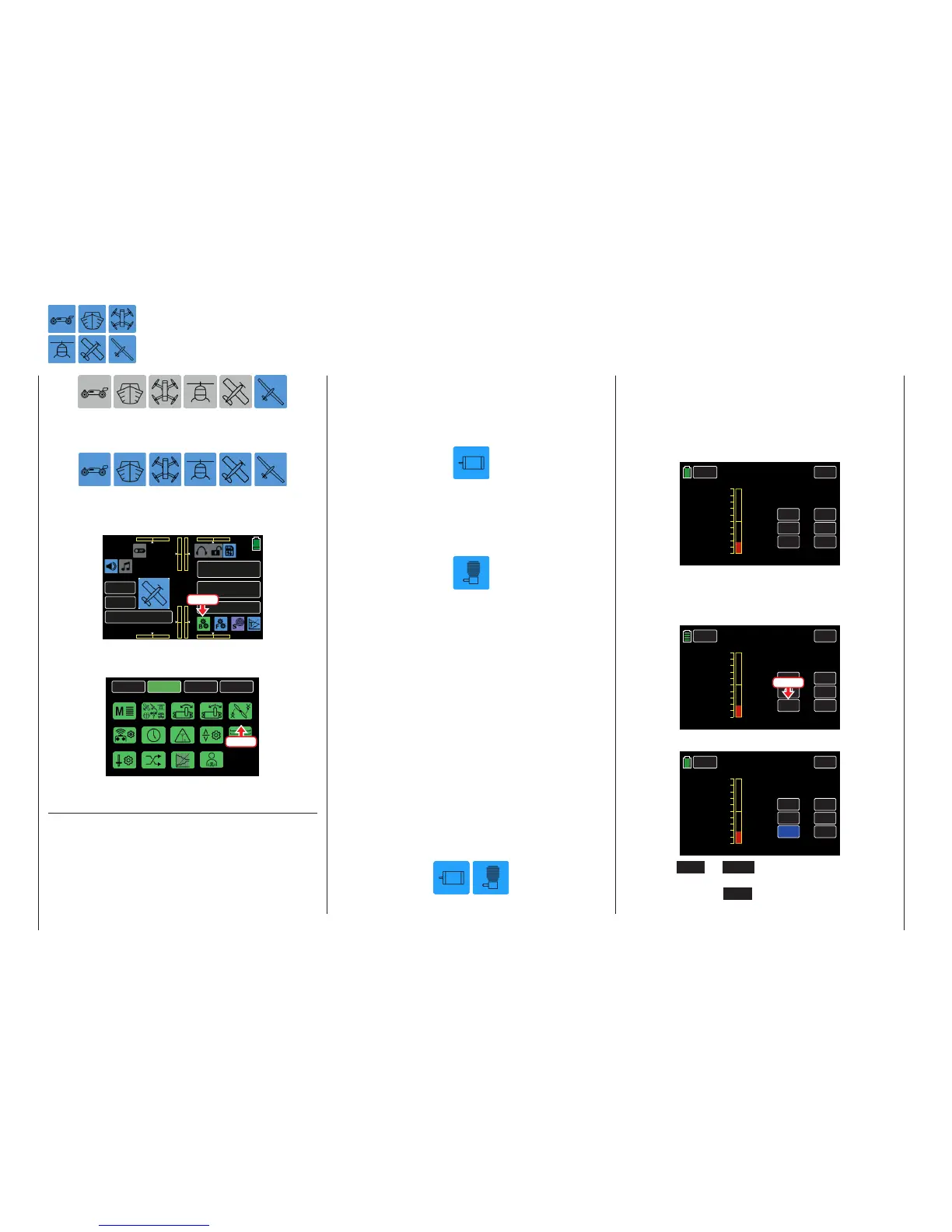

To set throttle cut, from the main display press the
BASE menu gear icon (green "B") to bring up the
BASE submenu screen:
000
000
000
000
mz
000%
000%
000
000
BATT TIME 00: 01: 23
MODELLNAME 1
M - 1
PHASE 1
000:00.0
000:00.0
4.2V
0:01:23
Press
From the BASE submenu display, press the Motor or
THR.CUT icon:
BACK
SYSTEM
BASE
FUNCTION
Model Sel
E.P.A
Model Type
REV/SUB
THR.CUT
Timer
TX ctl
Fail Safe
Trim Step
Servo
Out.Swap
CTL Set
Announce
Telemetry
Press
Throttle Cut
TheThrottleCut option allows a speed controller to
be shut off with a switch or movethe throttle control
servo to the pre-defined motor OFFposition (or idle
position).
This option can be used as an emergency OFF func-
tion. The Motor OFF position (or idle position) is des-
Throttle Cut
Switchable Throttle Cut/Motor Off
ignated in the value field of the SET line and needs to
be determined through experimentation.
The speed controller or the throttle servo only utilizes
the set position if a freely selectable switch has been
activated:
• By moving the selected switch to the ON posi-
tion the speed controller or the governor will be
reduced to the value which has been input in the
SET line, independent of the actual position of the
throttle/brake or throttle/pitch control stick.
In models with an ICE:
• If the set percentage in the SET line is less than
the current servo position, that is, the currentservo
position (green arrow to the left of the bar graphic)
is above the switching threshold (red arrow to the
right of the bar graphic), the speed controller re-
duces the motor speed, or the throttle servo closes
the carburetor as specified in the SET line once the
servo position falls below the switching threshold
of -66% when the switch is in the ON position.
• If the control stick position (green arrow on the left
of the bar graphic) is actually under the red arrow,
the speed controller or governor increases the
motor speed or the throttle servo opens the car-
buretor as specified in the SET line after moving
the switch to the ON position as soon as the con-
trol stick moves over +66% or under -66% of the
switch threshold if the Motor OFF position is set in
the plus side.
• In the Motor OFF position, the speed controller or
governor is disabled until the selected switch is
not moved again.
The default preset value of the field in the SET line of
the idle or Motor Off position is -100% of the throttle/
brake or throttle/pitch control stick travel:
BACK
ACT
CTL
SET
DEC


PHASE 1
RES
INC
SERVO
–100%
ON
INH
THR.CUT
Programming
To change the default for the Motor OFF posi-
tion,press the value field in the SET line:
BACK
ACT
CTL
SET
DEC


PHASE 1
RES
INC
SERVO
–100%
ON
INH
THR.CUT
Press
The field highlights blue:
BACK
ACT
CTL
SET
DEC


PHASE 1
RES
INC
SERVO
–100%
ON
INH
THR.CUT
Press the INC or DEC button at the right edge of
the display to increase/decrease the value of the ac-
tive field. Press the RES button to reset the changed
value back to the default. Alternatively, press the ar-
66 Base menu - Motor stop
