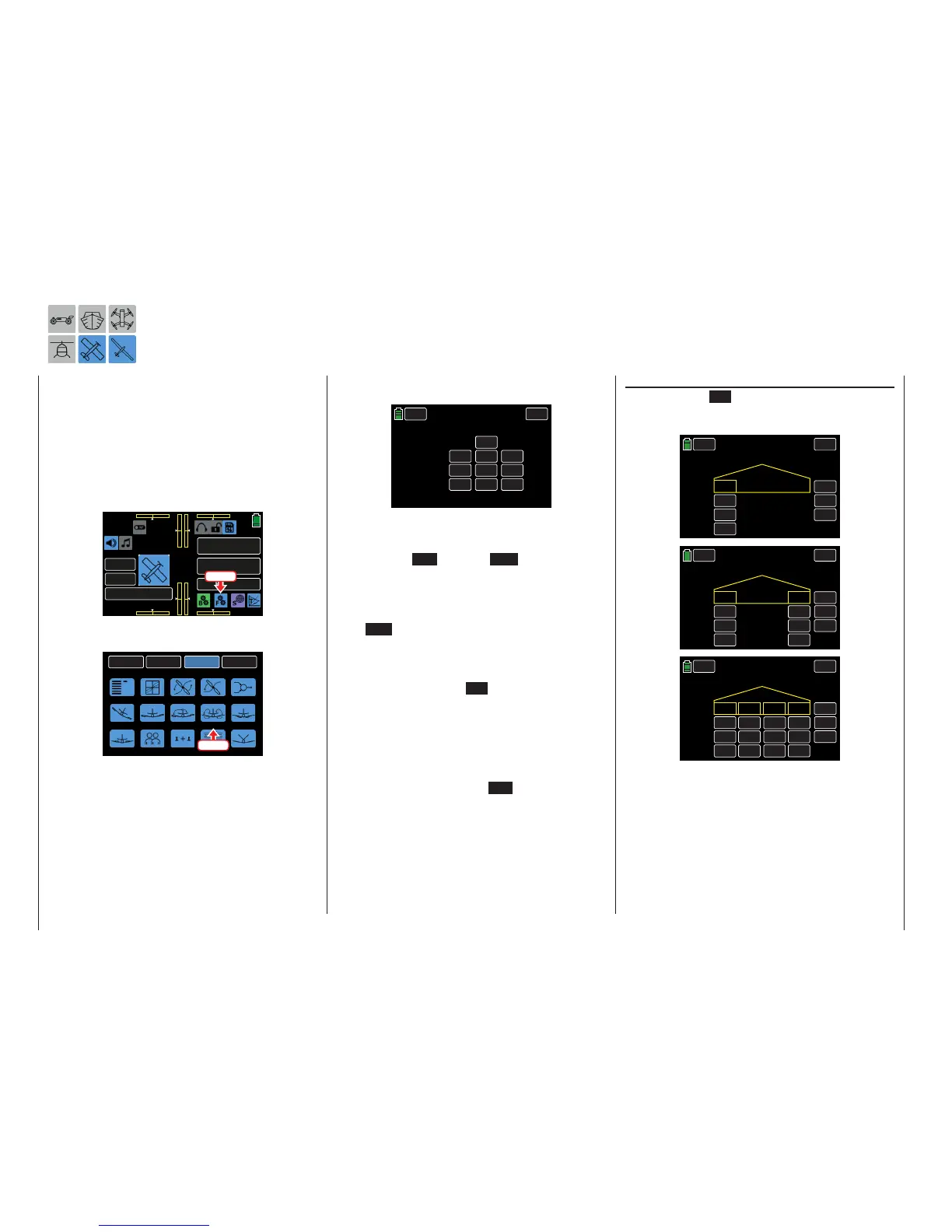

Flap MIX
Flap Mixer Adjustment
This submenu option is not available for models using
the 1AILE and 2AILE settings.
Use this function to adjust the elevator, aileron and
flaps to have better control in tighter curves, adjust-
ing upward or downward torque, and aileron flap pair
movement.
To adjust these settings, from the main display press
the FUNCTION menu gear icon (blue “F”) to bring up
the FUNCTION submenu screen:
000
000
000
000
mz
000%
000%
000
000
BATT TIME 00: 01: 23
Extra 360
M - 2
PHASE 1
000:00.0
000:00.0
4.2V
0:01:23
Press
From the FUNCTION submenu, press the Flap MIX
icon:
BACK
SYSTEM
BASE
FUNCTION
Phase
Wing MIX
D/R,EXPO
THR.CRV
Idle LOW
Snap roll
Prog.MIX
Aile diff
Flap MIX
Flap set
TTrainer
Airbrake
Sequence
Logical sw
V-Tail
Press
Phase-Dependent Settings
This submenu allows for different phase-specific val-
ues to be programmed. Phase names are displayed
in green in the upper left side of the screen next to
the BACK button. Standard default naming for the
phases are usually displayed as NORMAL/PHASE
1. (Additional phases will be named numerically, e.g.
Phase 2, Phase 3, etc.) To define multiple phases,
refer to the FUNCTION submenu Phase section (page
120). Each new phase will need to be assigned to a
different switch. To change the phases, activate the
corresponding switch(es).
SET
CTL
ON
ON
FLAP TYPE ACT
ON
FLAP
AILE >> FLAP
ELEV >> FLAP
FLAP >> ELEV
INH
INH
INH
>>
>>
>>
>>
BACK
PHASE 1 Flap MIX
SERVO
Programming
• ACT Column (Active)
To activate ON or inhibit INH a specific phase
combination, press to change the value fields in
the appropriate row.
This turns on and off the effect of the control ele-
ment on the selected mixer when the value field
is ON and a switch is assigned to the specific
phase.
• SET Column (Setting)
To switch to the mix type setting display menu,
press the appropriate >> button in the SET col-
umn.
• CTL Column (Control/Switch)
Press the button in the appropriate row to as-
sign a control to the respective mixer. Refer to the
BASE submenu CTL Set section (page 90) for in-
formation on setting switches. When the phase
is activated by turning the ON button in the ACT
Column, the assigned switch will perform the ad-
justments made in the SET display screen.
FLAP Line
By pressing the >> button in the FLAP line, one of
three display screens will appear, depending on the
selected number of flaps:
INC
RES
DEC
+100%
+100%
FLAP1
000%
OFFSET
RATE A
RATE B
FLAP
BACK
PHASE 1 Flap MIX
SERVO
INC
RES
DEC
+100%
+100%
+100%
+100%
FLAP1 FLAP2
000%
000%
OFFSET
RATE A
RATE B
FLAP
BACK
PHASE 1 Flap MIX
SERVO
INC
RES
DEC
+100%
+100%
+100%
+100%
FLAP1 FLAP2
000%
000%
OFFSET
RATE A
RATE B
FLAP
BACK
PHASE 1 Flap MIX
SERVO
FLAP3
FLAP4
+100%
+100%
+100%
+100%
000% 000%
• Lines RATE A / B
Determine the value input in the RATE A / B line the
flap deflection grade through the selected control
when the following situations occur:
192 Function menu | Airplane models - Flaps mixer
