GRAUPNER mz-24 PRO - V-Tail

V-Tail

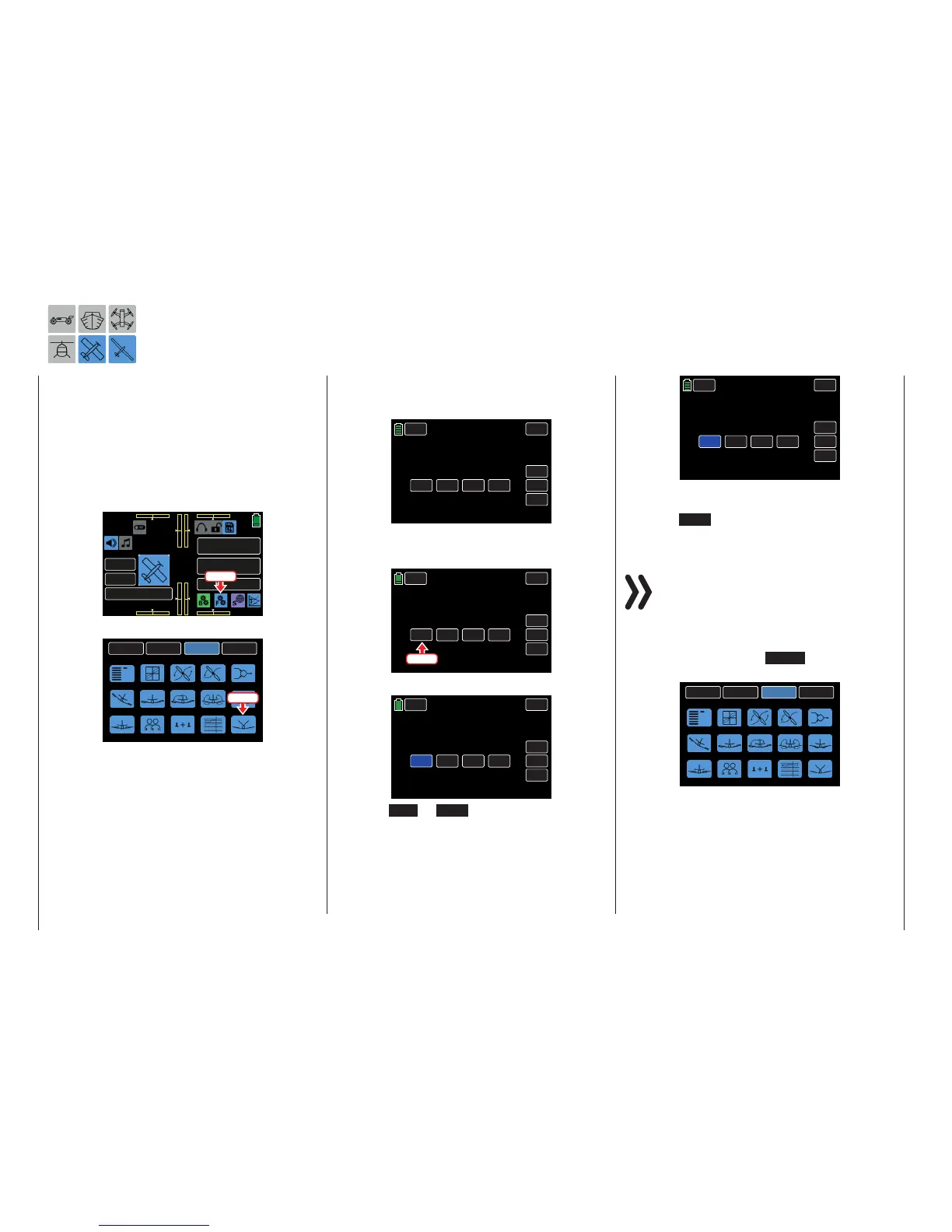

V-Tail Actuation Adjustment
This submenu option is only available for model types
with a V-Tailconfiguration.
The elevator and rudder are controlled by two sepa-
rately-articulated rudders arranged in a V-shape. The
coupling function for the rudder and elevator control
is automatically transferred from the program.
To adjust these settings, from the main display press
the FUNCTION menu gear icon (blue “F”) to bring up
the FUNCTION submenu screen:
000
000
000
000
mz
000%
000%
000
000
BATT TIME 00: 01: 23
Extra 360
M - 2
PHASE 1
000:00.0
000:00.0
4.2V
0:01:23
Press
From the FUNCTION submenu, press the V-Tail icon:
BACK
SYSTEM
BASE
FUNCTION
Phase
Wing MIX
D/R,EXPO
THR.CRV
Idle LOW
Snap roll
Prog.MIX
Aile diff
Flap MIX
Flap set
TTrainer
Airbrake
Sequence
Logical sw
V-Tail
Press
Phase-Dependent Settings
This submenu allows for different phase-specific val-
ues to be programmed. Phase names are displayed
in green in the upper left side of the screen next to
the BACK button. Standard default naming for the
phases are usually displayed as NORMAL/PHASE
1. (Additional phases will be named numerically, e.g.
Phase 2, Phase 3, etc.) To define multiple phases,
refer to the FUNCTION submenu Phase section (page
120). Each new phase will need to be assigned to a
different switch. To change the phases, activate the
corresponding switch(es).
PHASE 1 V-Tail
RUDDER
INC
RES
DEC
ELEVATOR
BACK
A
+100%
+100%
+100%
+100%
BA
B
SERVO
Programming
Press the appropriate value field to be changed:
PHASE 1 V-Tail
RUDDER
INC
RES
DEC
ELEVATOR
BACK
A
+100%
+100%
+100%
+100%
BA
B
SERVO
Press
The field highlights blue:
PHASE 1 V-Tail
RUDDER
INC
RES
DEC
ELEVATOR
BACK
A
+100%
+100%
+100%
+100%
BA
B
SERVO
Press the INC or DEC buttons or the arrow keys
( pq ) to increase/decrease the value:
PHASE 1 V-Tail
RUDDER
INC
RES
DEC
ELEVATOR
BACK
A
+075%
+100%
+100%
+100%
BA
B
SERVO
Use the same procedure to adjust the other value
fields.
Press the  RES button to reset the changed value
back to the default.
Notice
Remember that the mixing travel of the mixers is
cumulative with simultaneous control stick move-
ment,and one or both servos may mechanically
collide. To prevent this, reduce the related set mixing
values.
To save and exit, press the BACK button at the top
left of the display to return to the previous menu:
BACK
SYSTEM
BASE
FUNCTION
Phase
Wing MIX
D/R,EXPO
THR.CRV
Idle LOW
Snap roll
Prog.MIX
Aile diff
Flap MIX
Flap set
TTrainer
Airbrake
Sequence
Logical sw
V-Tail
206 Function menu | Airplane model - V-tail
