GRAUPNER mz-24 PRO - Timer

Timers
Timer and Clock Settings
BACK
MODE
START SW
RESET SW
TIMER1
00
NULL
NULL
T.RES
LAP SW
000
LAP List
NULL
UP
ALARM
00
00
DEC
RES
INC
NEXT
>>
:
:
STOP SW
NULL
LAP ALARM
OFF
Timer
Tip
Press the NEXT button at the top right edge of the
display to scroll through the setting screens: TIMER1,
TIMER2 and DATE/TIME.
TIMER1 and TIMER2
To program TIMER1 or TIMER2, begin by choosing
direction in the MODE line. By default, UP = forward
count-up and DOWN = backwards countdown.
To proceed without setting an alarm, skip to the Start/
Stop Timer1 and Timer2 section (page 77).
Alarm function
An alarm function can be activated for a forward-count-
ing and backward-counting timer by setting the de-
sired time-frame in the minute and/or second field in
the ALARM line. A warning beep will sound during the
last 20 seconds of the set duration so that users do
not have to continuously monitor the display during
flight.
Acoustic Signal Sequence
20 s before zero: 2 beeps
Single beep every 2 seconds
10 s before zero: single beep
Single beep every second with a
changed pitch
5 s before zero: single beep every second with re-
duced frequency
Zero: voice trigger
To set the desired time period, press the left minute
field:
BACK
MODE
START SW
RESET SW
TIMER1
00
NULL
NULL
T.RES
LAP SW
000
LAP List
NULL
UP
ALARM
00
00
DEC
RES
INC
NEXT
>>
:
:
STOP SW
NULL
LAP ALARM
OFF
Timer
Press
Or the right second field:
BACK
MODE
START SW
RESET SW
TIMER1
00
NULL
NULL
T.RES
LAP SW
000
LAP List
NULL
UP
ALARM
00
00
DEC
RES
INC
NEXT
>>
:
:
STOP SW
NULL
LAP ALARM
OFF
Timer
Press
The field highlights blue:
BACK
MODE
START SW
RESET SW
TIMER1
00
NULL
NULL
T.RES
LAP SW
000
LAP List
NULL
UP
ALARM
00
00
DEC
RES
INC
NEXT
>>
:
:
STOP SW
NULL
LAP ALARM
OFF
Timer

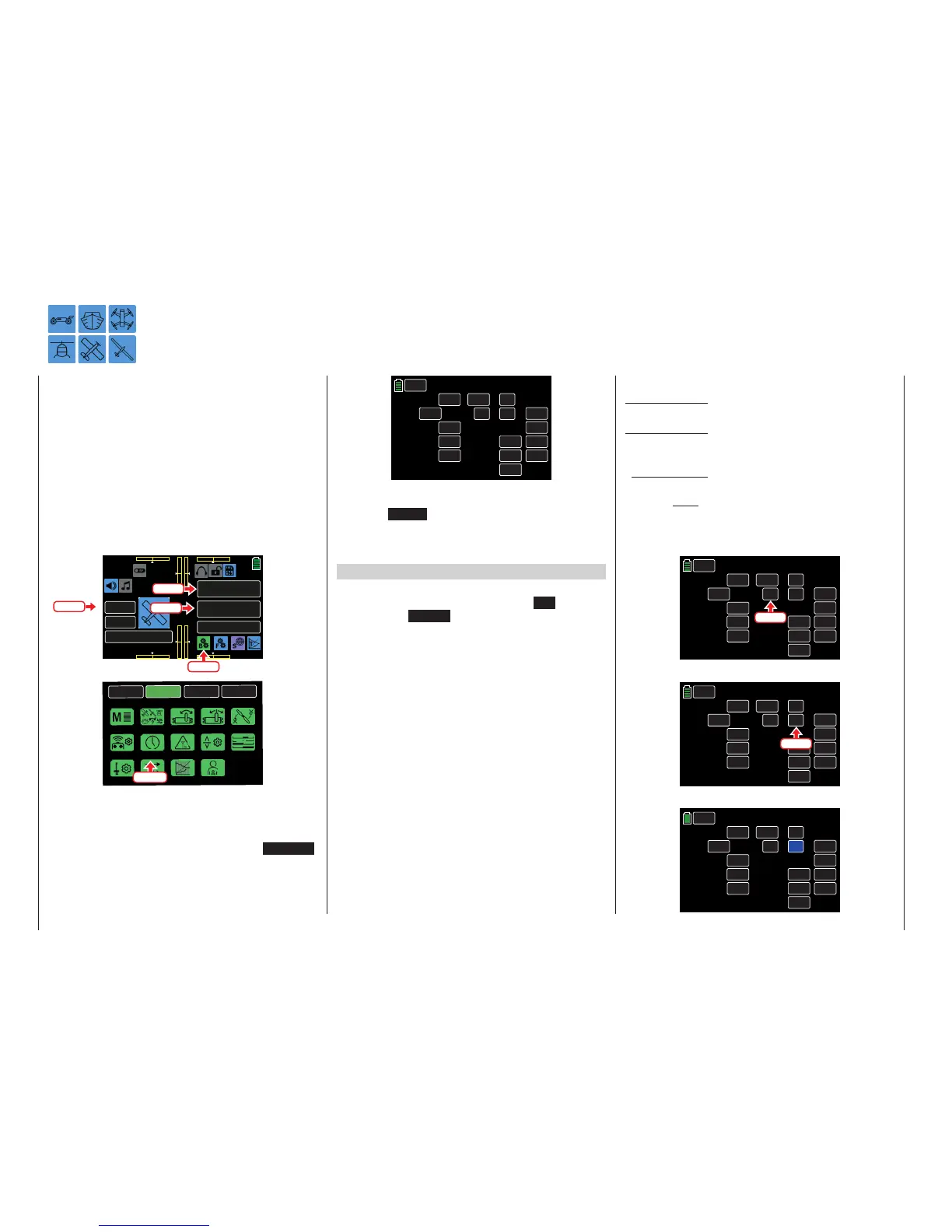

The mz-24 PRO comes with two forward/backward
timers, alarm, battery and model timers and a date/
time clock.
There are four ways to access the BASE submenu
Timer. Press the battery/model timer on the left side
of the main menu to bring up the battery/model set-
ting screen. Press and hold either of the two large
forward/backward timers on the right side of the main
menu to bring up the timer displays (top timer for Tim-
er1, bottom timer for Timer2). Or press the green gear
icon at the bottom of the screen to bring up the BASE
submenu. Press the Timer icon to bring up the timer
display.
000
000
000
000
mz
000%
000%
000
000
BATT TIME 00: 01: 23
MODELLNAME 1
M - 1
PHASE 1
000:00.0
000:00.0
4.2V
0:01:23
Press
Press
Press
BACK
SYSTEM
BASE
FUNCTION
Model Sel
E.P.A
Model Type
REV/SUB
THR.CUT
Timer
TX ctl
Fail Safe
Trim Step
Servo
Out.Swap
CTL Set
Announce
Telemetry
Press
Tip
Quickly press or tap the main menu Timer1 and Tim-
er2 buttons to reset to the default values of 000:00.0.
Press and hold timer buttons to be taken to the corre-
sponding timer setting display screen.
Press
74 Base menu - Timers
