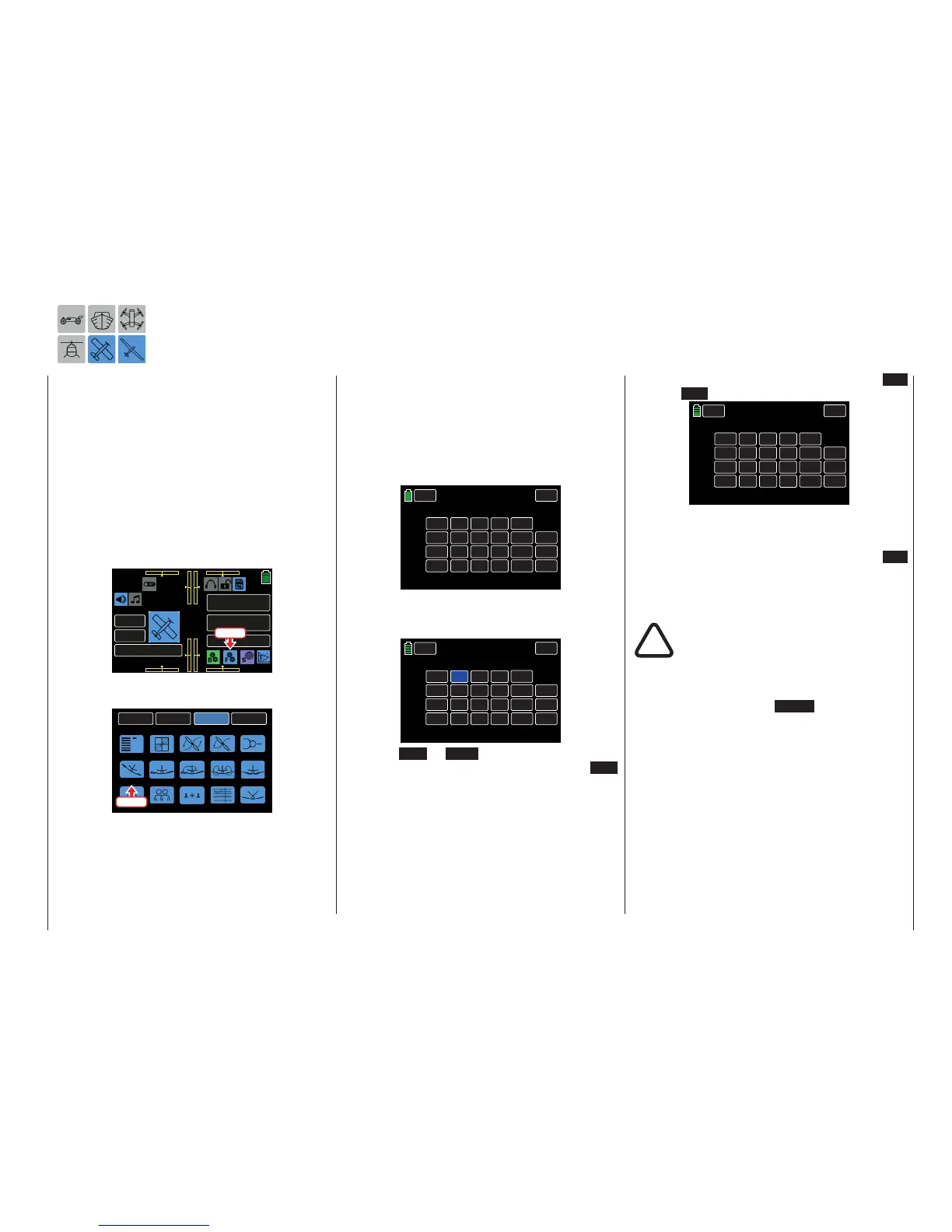

GRAUPNER mz-24 PRO Programming Manual

Snap Roll
Automated Programming
A snap-roll is a purposely accelerated stall resulting
in a “spin”. This function enables up to four pre-pro-
grammed snap settings (positive right/negative, right,
left and positive left/negative) per phase. The position
of the switch assigned to the individual presets de-
termines the respective figure program in which the
control stick signals are set at a fixed value indepen-
dent of the momentary control stick positions. That is,
all aileron, elevator and rudder servos move as if the
relevant control stick has been shifted to the preset
position.
To adjust these settings, from the main display press
the FUNCTION menu gear icon (blue “F”) to bring up
the FUNCTION submenu screen:
000
000
000
000
mz
000%
000%
000
000
BATT TIME 00: 01: 23
Extra 360
M - 2
PHASE 1
000:00.0
000:00.0
4.2V
0:01:23
Press
From the FUNCTION submenu display, press the
Snap roll icon:
BACK
SYSTEM
BASE
FUNCTION
Phase
Wing MIX
D/R,EXPO
THR.CRV
Idle LOW
Snap roll
Prog.MIX
Aile diff
Flap MIX
Flap set
TTrainer
Airbrake
Sequence
Logical sw
V-Tail
Press
Some pilots automatically program snap rolls when
flying.
Phase-Dependent Settings
This submenu allows for different phase-specific val-
ues to be programmed. Phase names are displayed
in green in the upper left side of the screen next to
the BACK button. Standard default naming for the
phases are usually displayed as NORMAL/PHASE
1. (Additional phases will be named numerically, e.g.
Phase 2, Phase 3, etc.) To define multiple phases,
refer to the FUNCTION submenu Phase section (page
120). Each new phase will need to be assigned to a
different switch. To change the phases, activate the
corresponding switch(es).
PHASE 1 Snap roll
SERVO
RUDD
CTL
ON
INC
RES
DEC
ON
ON
INH
ELEV
BACK
MODE AILE
ACT
ON
–100%
R/U
R/D
L/U
L/D
INH
INH
INH
–100%
–100%
–100%
+100%
+100%
+100%
–100%
+100%
+100%
+100%
–100%
Set the values within a range of ±150% in the appro-
priate column and row. Press the value field to high-
light blue:
PHASE 1 Snap roll
SERVO
RUDD
CTL
ON
INC
RES
DEC
ON
ON
INH
ELEV
BACK
MODE AILE
ACT
ON
–100%
R/U
R/D
L/U
L/D
INH
INH
INH
–100%
–100%
–100%
+100%
+100%
+100%
–100%
+100%
+100%
+100%
–100%
Press the INC or DEC buttons or the arrow keys
( pq ) to increase/decrease the value. Press the RES
button to reset the changed value back to the default.
Press the button in the ACT column to activate ON
or inhibit INH the settings:
PHASE 1 Snap roll
SERVO
RUDD
CTL
ON
INC
RES
DEC
ON
ON
ON
ELEV
BACK
MODE AILE
ACT
ON
–100%
R/U
R/D
L/U
L/D
ON
ON
ON
–100%
–100%
–100%
+100%
+100%
+100%
–100%
+100%
+100%
+100%
–100%
Press the value button in the CTL line to assign a
control switch. Refer to the BASE submenu CTL Set
section (page 90) for information on setting switch-
es. When the phase is activated by turning the ON
button in the ACT column, the assigned switch will
perform the adjustments set on this screen.
WARNING
!
Never turn on a snap-roll program acci-
dentally, especially during flight! If the
programs are turned on at in the wrong
location or time, it can cause significant property
damage and/or injury.
To save and exit, press the BACK button at the top
left of the display to return to the previous menu.
181
Function menu | Airplane models - Snap Roll
