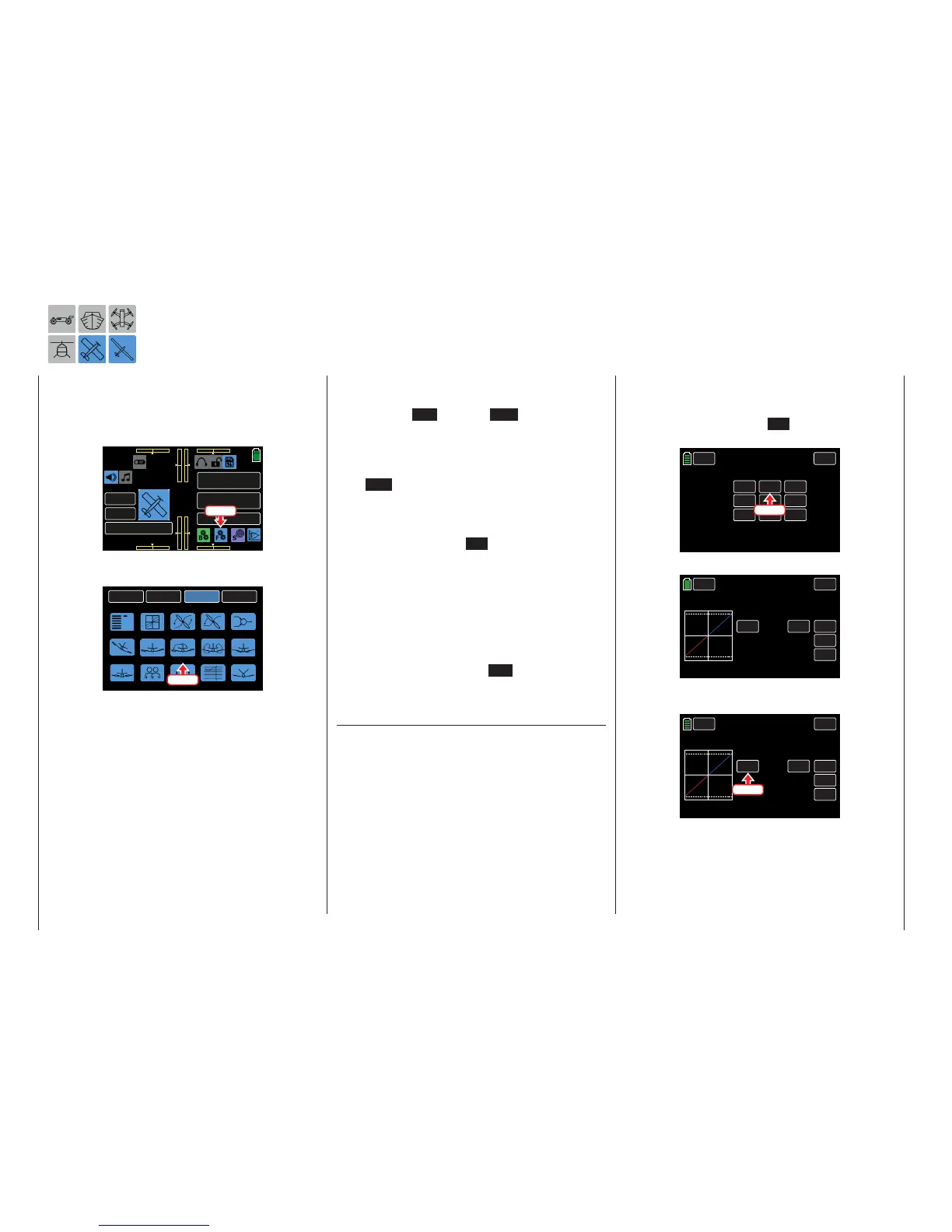

GRAUPNER mz-24 PRO - Wing MIX - Wing Mixer

Use this function to adjust the rudders, ailerons and
elevators to fix deflection direction during flight.
To adjust these settings, from the main display press
the FUNCTION menu gear icon (blue “F”) to bring up
the FUNCTION submenu screen:
000
000
000
000
mz
000%
000%
000
000
BATT TIME 00: 01: 23
Extra 360
M - 2
PHASE 1
000:00.0
000:00.0
4.2V
0:01:23
Press
From the FUNCTION submenu, press the Wing MIX
icon:
BACK
SYSTEM
BASE
FUNCTION
Phase
Wing MIX
D/R,EXPO
THR.CRV
Idle LOW
Snap roll
Prog.MIX
Aile diff
Flap MIX
Flap set
TTrainer
Airbrake
Sequence
Logical sw
V-Tail
Press
Phase-Dependent Settings
This submenu allows for different phase-specific val-
ues to be programmed. Phase names are displayed
in green in the upper left side of the screen next to
the BACK button. Standard default naming for the
phases are usually displayed as NORMAL/PHASE
1. (Additional phases will be named numerically, e.g.
Phase 2, Phase 3, etc.) To define multiple phases,
refer to the FUNCTION submenu Phase section (page
120). Each new phase will need to be assigned to a
different switch. To change the phases, activate the
corresponding switch(es).
Wing MIX
Wing Mixer Adjustment
Programming
• ACT Column (Active)
To activate ON or inhibit INH a specific phase
combination, press to change the value fields in
the appropriate row.
This turns on and off the effect of the control ele-
ment on the selected mixer when the value field
is ON and a switch is assigned to the specific
phase.
• SET Column (Setting)
To switch to the mix type setting display menu,
press the appropriate >> button in the SET col-
umn. Refer to the specific sections below for in-
formation on the individual mix types (pages 188-
191).
• CTL Column (Control/Switch)
Press the button in the appropriate row to as-
sign a control to the respective mixer. Refer to the
BASE submenu CTL Set section (page 90) for in-
formation on setting switches. When the phase
is activated by turning the ON button in the ACT
Column, the assigned switch will perform the ad-
justments made in the SET display screen.
RUDD >> AILE Line (Rudder >> Aileron)
In aerobatic flight, the behavior of the longitudinal axis
is influenced when therudder is actuated. This is par-
ticularly problematic in "knife edge flying" since the
wings are vertical in this flight position and the only
lift is from the fuselage when the rudder is deflected.
This can cause a model to rotate on the longitude axis
as if the aileron were actuated. When the rudders are
controlled, a correction is necessary along the longi-
tudinal axis (aileron) within an adjustable range.
The setting range of ±150 % makes it possible to ap-
propriately adapt the deflection direction. This mixer
can be turned on and off so that the model can be
used exclusively via the rudder. Turn mixer off with a
control (which cannot be independently reset), a con-
trol switch or a logical switch.
To set the mixer, press the >> button in the RUD-
D>>AILE line:
MIX.TYPE
RUDD >> AILE
AILE >> RUDD
RUDD >> ELEV
INH
INH
INH
>>
>>
ON
ON
ON
>>
ACT CTLSET
BACK
PHASE 1 Wing MIX
SERVO
Press
The RUDD>>AILE setting display opens:
BACK
RATE
RUDD >> AILE
+100%
INC
RES
DEC
A
+100%
B
PHASE 1
SERVO
Wing MIX
Press the desired value field. In the example below,
RATE A needs to be at +50%:
BACK
RATE
RUDD >> AILE
+100%
INC
RES
DEC
A
+100%
B
PHASE 1
SERVO
Wing MIX
Press
188 Function menu | Airplane models - Airplane mixer
