BATT TIME 00: 01: 23
MODELLNAME 1
M - 1
PHASE 1
000:00.0
000:00.0
4.2V
0:01:23

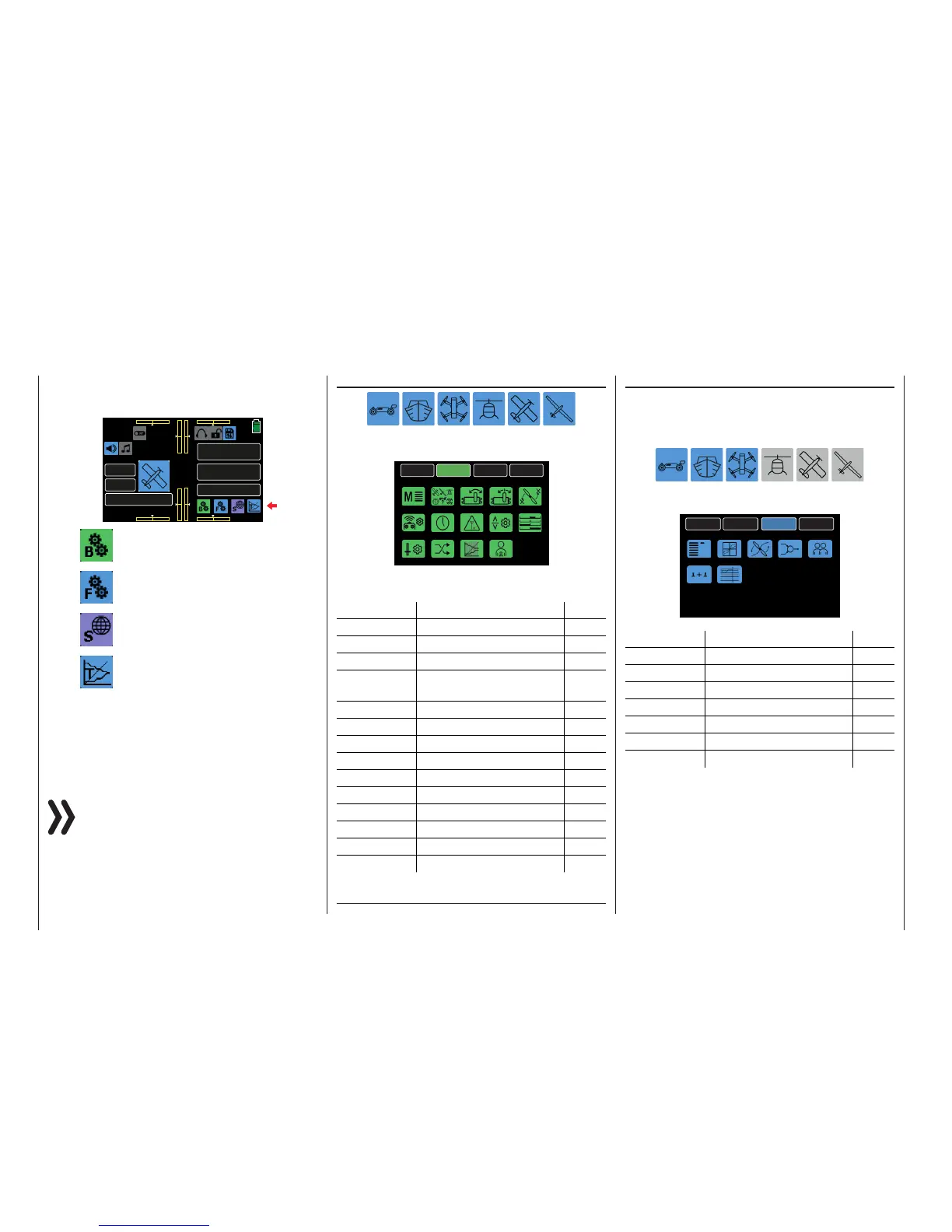

BASE menu = green B icon
FUNCTION menu = blue F icon
SYSTEM menu = purple S icon
TELEMETRY menu = blue T icon
These submenus contain all of the setting and display
menus required to program models and the mz-24
PRO transmitter.
This manual follows the sequence order of the menus
as they appear in the transmitter.
Notice
The display screen-shots of this manual are in-
tended for illustration purpose only. Therefore
please note that the represented settings and
setting values cannot be used for 1:1 reference.
B (BASE Menu)
Press the BASE menu gear icon (green “B”) to bring
up the BASE submenu screen:
This menu contains all of the base setting and display
menus that are needed to set up the model:
Name Menu Page
Model Sel Model Selection 38
Model Type Model Type 60
E.P.A Servo Path/Servo Limit 62
REV/SUB
Servo Reverse/Servo Sub-
Trim
64
Motor Throttle Cut* 66
TX ctl Transmitter Controls 68
Timer Timers 74
Fail Safe Fail Safe Settings 80
Trim Step Trim Setup 82
Servo Servo Monitor 86
CTL Set Control Settings 90
Out.Swap Transmitter Output 96
Telemetry Telemetry Settings 98
Announce Announcements 118
F (FUNCTION Menu)
The icons displayed in the FUNCTION submenu
screen vary depending on the active model type and
basic settings. Locate the blue model type icon for
information relative to that model.
Press the FUNCTION menu gear icon (blue “F”) to
bring up the FUNCTION submenu screen:
BACK
SYSTEM
BASE
FUNCTION
Phase
D/R,EXP
THR.CRV
Prog.MIX
Trainer
Sequence
Logical sw
Name Menu Page
Phase Phase setting 120
D/R,EXP Dual rate, Expo 124
THR.CRV Throttle curve 128
Prog.MIX Programmable mixers 134
Trainer Trainer system 141
Logical sw Logical switch 148
Sequence Sequencer 150
* This icon remains hidden for models without a motor
34 Program description
