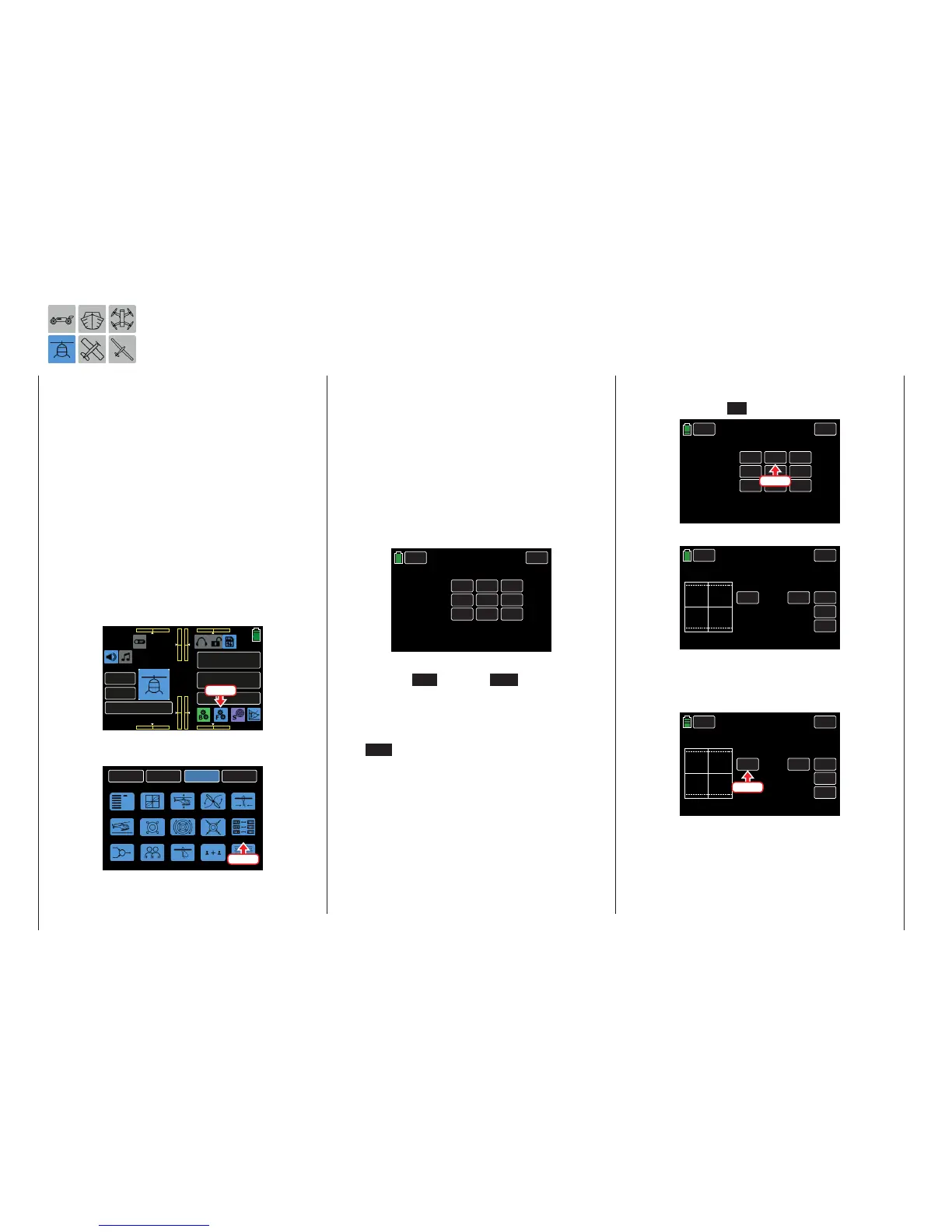

THR.MIX
Phase-Dependent Throttle Tracking with Roll, Elevation and Tail Settings
Use this function to individually adjust throttle track-
ing with roll, pitch and tail control.
The throttle needs to follow an increase in pitch and
should track with large cyclical control movements
that tilt the swashplate in the desired direction. The
motor output should be adapted when the thrust of
the tail rotor is increased to maintain a constant sys-
tem speed. This is useful for aerobatics (e.g. perform-
ing rolls) since cyclical control deflections are used
with middle collective pitch values where the carbu-
retor is about halfway open and require significantly
higher motor output.
When using a governor to automatically maintain the
rotor speed, the governor adapts the output as nec-
essary. Adjust throttle tracking in these three mixers.
To adjust these settings, from the main display press
the FUNCTION menu gear icon (blue “F”) to bring up
the FUNCTION submenu screen:
000
000
000
000
mz
000%
000%
BATT TIME 00: 01: 23
Starlet
M - 3
PHASE 1
000:00.0
000:00.0
4.2V
0:01:23
Press
From the FUNCTION submenu display, press the
THR.MIX icon:
BACK
SYSTEM
BASE
FUNCTION
Phase
S.Limit
D/R,EXP
THR.CRV
Gyr/Gover
Swash
THR.HOLD
PIT.CRV
S.MIX
THR.MIX
Trainer
Prog.MIX
Logical sw
PIT>>TAIL
Sequence
Press
Phase-Dependent Settings
This submenu allows for different phase-specific val-
ues to be programmed. Phase names are displayed
in green in the upper left side of the screen next to
the BACK button. Standard default naming for the
phases are usually displayed as NORMAL/PHASE
1. (Additional phases will be named numerically, e.g.
Phase 2, Phase 3, etc.) To define multiple phases,
refer to the FUNCTION submenu Phase section (page
120). Each new phase will need to be assigned to a
different switch. To change the phases, activate the
corresponding switch(es).
PHASE 1
SERVO
THR.MIX
BACK
ACT
NICK >> THRO
TAIL >> THRO
ROLL >> THRO
INH
INH
INH
>>
>>
>>
ON
ON
ON
SET CTL
MIX.TYPE
• ACT Column (Active)
To activate ON or inhibit INH a specific phase
combination, press to change the value fields in
the appropriate row.
This turns on and off the effect of the control ele-
ment on the selected mixer when the value field
is ON and a switch is assigned to the specific
phase (refer to the CTL Column section on page
175).
• SET Column (Setting)
To bring up the phase settings screen, press the
bracket buttons >> in the appropriate row:
PHASE 1
SERVO
THR.MIX
BACK
ACT
NICK >> THRO
TAIL >> THRO
ROLL >> THRO
INH
INH
INH
>>
>>
>>
ON
ON
ON
SET CTL
MIX.TYPE
Press
The settings display screen opens:
BACK
RATE
ROLL >> THRO
000%
INC
RES
DEC
A
000%
B
PHASE 1
SERVO
THR.MIX
Based on the defaults shown here, adapt the cur-
rent settings as needed by pressing the value field
to be changed. In the example below, RATE A
needs to be changed to -012%:
BACK
RATE
ROLL >> THRO
000%
INC
RES
DEC
A
000%
B
PHASE 1
SERVO
THR.MIX
Press
176 Function menu | Helicopter model - Throttle mixer
