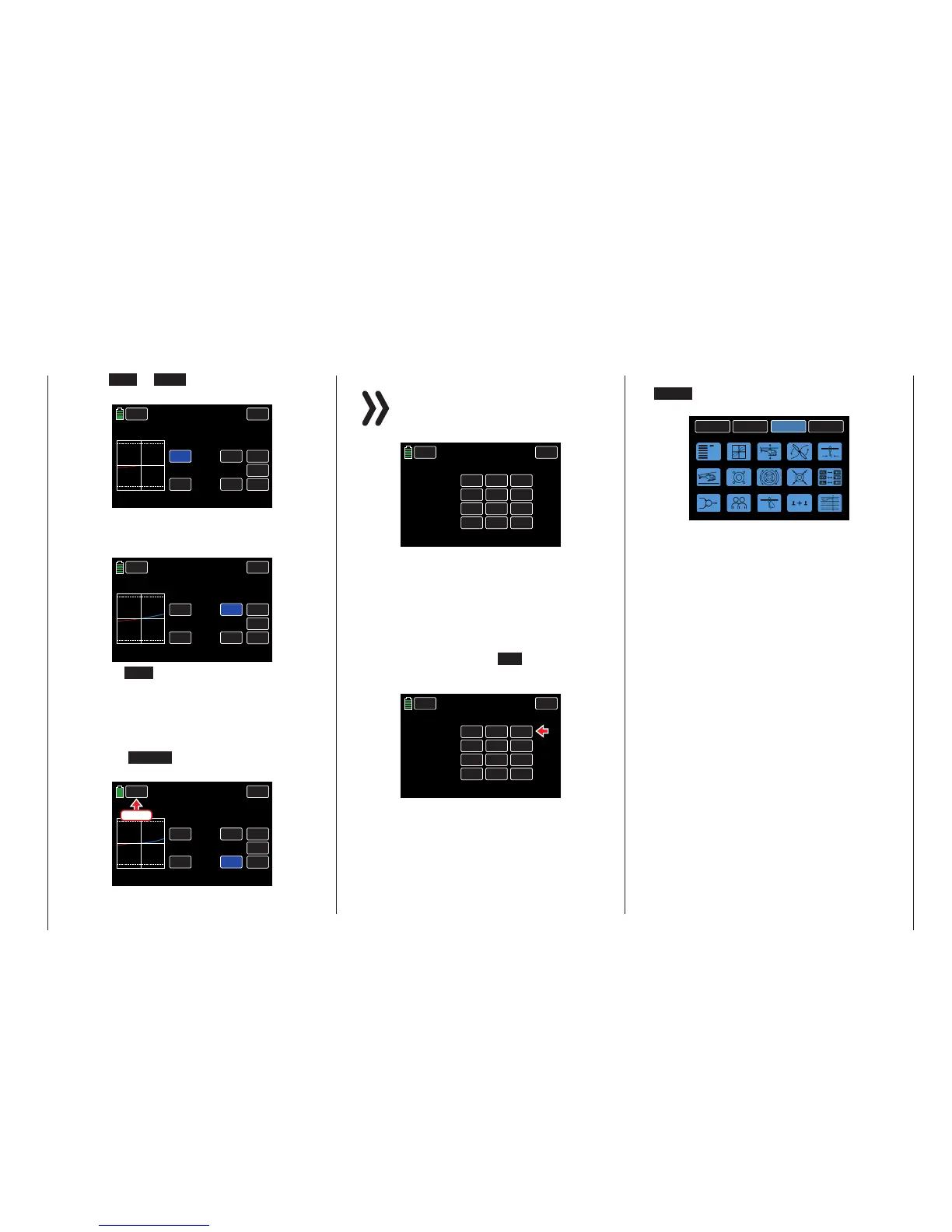

Press the INC or DEC buttons or the arrow keys (
pq ) to increase/decrease the value:
BACK
EXP
RATE
ROLL >> NICK
INC
RES
DEC
A
000%
000%
000%
B
PHASE 1
SERVO
S.MIX
–012%
Use the same procedure for the value on the oppo-
site side of the control travel. In the example be-
low, RATE B needs to be changed to -012%:
BACK
EXP
RATE
ROLL >> NICK
INC
RES
DEC
A
000%
000%
B
PHASE 1
SERVO
S.MIX
–012%
–021%
Press the RES button to reset the changed value
back to the default.
Make the necessary changes in the two EXP val-
ue fields as described in the FUNCTION submenu
D/R.EXP section (page 124).
To save and exit back to the S.MIX main display,
press the  BACK button at the top left of the
screen:
BACK
EXP
RATE
ROLL >> NICK
INC
RES
DEC
A
B
PHASE 1
SERVO
S.MIX
–012%
–021%
+050%
+050%
Press
Notice
The mixed values portrayed in the above
graphics are for demonstration purposes only
and do not represent real values.
PHASE 1
SERVO
S.MIX
BACK
ACT
NICK >> ROLL
PITC >> ROLL
PITC >> NICK
ROLL >> NICK
INH
INH
INH
ON
>>
>>
>>
>>
ON
ON
ON
ON
SET CTL
MIX.TYPE
Select and adjust all mixers as previously de-
scribed.
• CTL Column (Control/Switch)
Press the field in the appropriate button to as-
sign a control to the respective mixer. Refer to the
BASE submenu CTL Set section (page 90) for in-
formation on setting switches. When the phase
is activated by turning the ON button in the ACT
Column, the assigned switch will perform the ad-
justments made in the SET display screen:
PHASE 1
SERVO
S.MIX
BACK
ACT
NICK >> ROLL
PITC >> ROLL
PITC >> NICK
ROLL >> NICK
INH
INH
INH
ON
>>
>>
>>
>>
ON
ON
ON
SW 5
SET CTL
MIX.TYPE
To save and exit to the FUNCTION menu, press
the BACK button at the top left of the screen.
BACK
SYSTEM
BASE
FUNCTION
Phase
S.Limit
D/R,EXP
THR.CRV
Gyr/Gover
Swash
THR.HOLD
PIT.CRV
S.MIX
THR.MIX
Trainer
Prog.MIX
Logical sw
PIT>>TAIL
Sequence
175
Function menu | Helicopter model - Helicopter mixer
