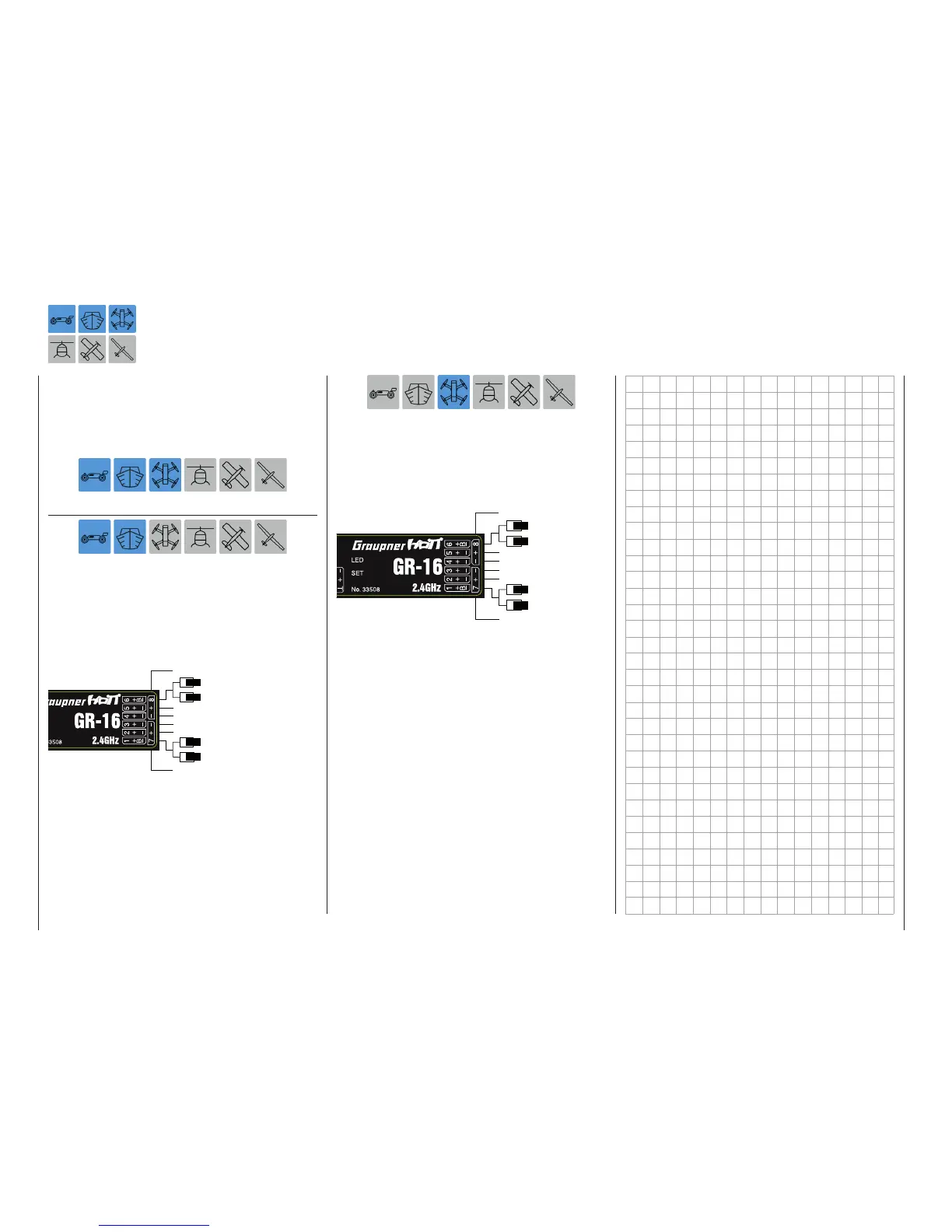

Receiver Configuration
Vehicles, Boats and Drones
This manual is grouped by model type. Refer to sec-
tions of the appropriate model type for programming
information specific to that model. For example, in-
formation specific to vehicles, boats and drones, look
for any/all of the following three icons to be highlight-
ed blue:
Connection Notices
For surface models there are basically four different
ways of assigning the control functions (forward/
backward and left/right) of both control sticks. The
options that are chosen depend on individual prefer-
ences. It is recommended to keep the control modes
1 - 4 compatible by connecting control function 1 with
the forward/backward function and the control func-
tion 4 with the direction function:
engine servo or speed controller
(forward/backward)
free or special function
free or special function
left/right
free or special function
free or special function
free or special function
free or special function
receiver power supply
receiver power supply
For drones there are basically four different ways of
assigning the four control functions (roll, nick, yaw
and throttle/pitch) of both sticks. The options that are
chosen depend on individual preferences. It is recom-
mended to keep the control modes 1 - 4 compatible
by connecting them according to the following sche-
ma:
motor/pitch
(up/down)
free or special function
free or special function
yaw
roll
nick
free or special function
free or special function
receiver power supply
receiver power supply
30 Receiver assignation
