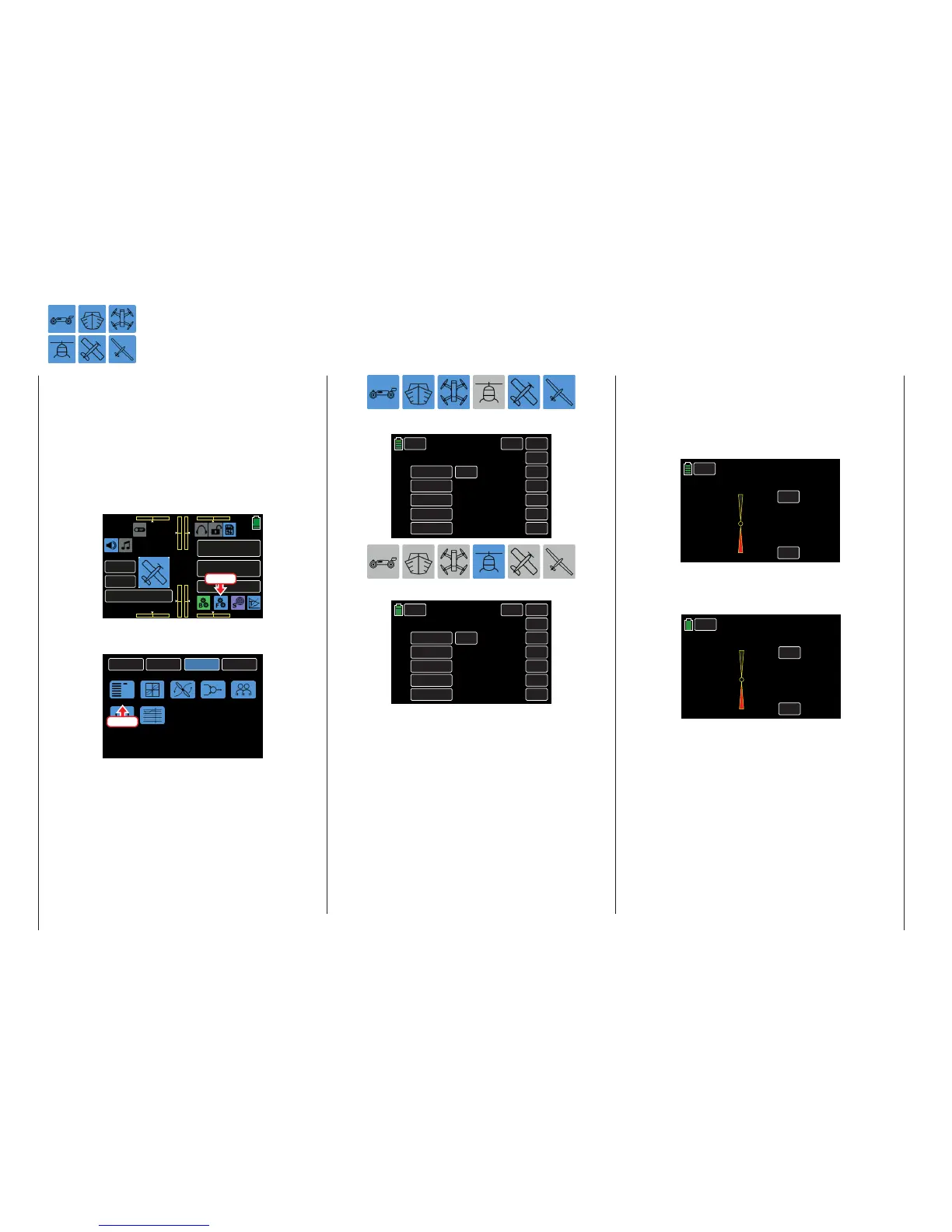

GRAUPNER mz-24 PRO - Phase

Phase
Phase Settings
Referred to as Q.Links in previous Graupner radios,
flight phases allow users to switch between different
sets of trim settings according to the flight phase (i.e.
takeoff, landing, etc.). The mz-24 PRO HoTT trans-
mitter also allows phases to be linked to mixers. In
the Phase menu, up to 6 different settings for different
flight phases can be set within a model memory.
To change the phase settings, from the main display
press the FUNCTION menu gear icon (blue “F”) to
bring up the FUNCTION submenu screen:
000
000
000
000
mz
000%
000%
000
000
BATT TIME 00: 01: 23
MODELLNAME 1
M - 1
PHASE 1
000:00.0
000:00.0
4.2V
0:01:23
Press
From the FUNCTION submenu display, press the
Phase icon:
BACK
SYSTEM
BASE
FUNCTION
Phase
D/R,EXP
THR.CRV
Prog.MIX
Trainer
Sequence
Logical sw
Press
Phase names are displayed in green in the top center
of the screen. Standard default naming for phases
is usually displayed as NORMAL/PHASE 1. (Addi-
tional phases will be named numerically, e.g. Phase
2, Phase 3, etc.) Each new phase will need to be as-
signed to a different switch. To change the phases,
activate the corresponding switch(es).
The six settings do not have to be sequential and
phase lines can be left empty.
Phase display for all models (except helicopters):
BACK
1.
2.
3.
4.
5.
PHASE 1
CPY
DEL
DEC
0.0s
NAM
NEXT
NEW
INC
PHASE 2
PHASE 3
PHASE 4
PHASE 5
PHASE
SLOW
CTL
Phase
SET
Phase display for helicopters:
BACK
1.
2.
3.
4.
5.
NORMAL
CPY
DEL
DEC
0.0s
NAM
NEXT
NEW
INC
AUTOROT
RPM 1
RPM 2
RPM 3
PHASE
SLOW
CTL
Phase
SET
For all models (including helicopters) always start with
PHASE 1 of the NORMAL link. NORMAL/PHASE1 is
the default when no Phase switch is set, or when no
Phase has been assigned to specific switch combi-
nations.
Note that individual switches have allocation priority
towards flight phases. The underlying schema is de-
scribed as follows:
• If all flight phase switches, if any, are open (i.e.
OFF position), the flight phase NORMAL is active:
• If only one switch is closed (i.e. ON position), then
the flight phase that has been assigned to the cur-
rently closed switch is active:
• If two or more switches are closed, the flight
phase with the lower phase number is active.
BACK
ON
SW 6
OFF

BACK
ON
SW 6
OFF

120 Function menu | general - Phase
