Appendix

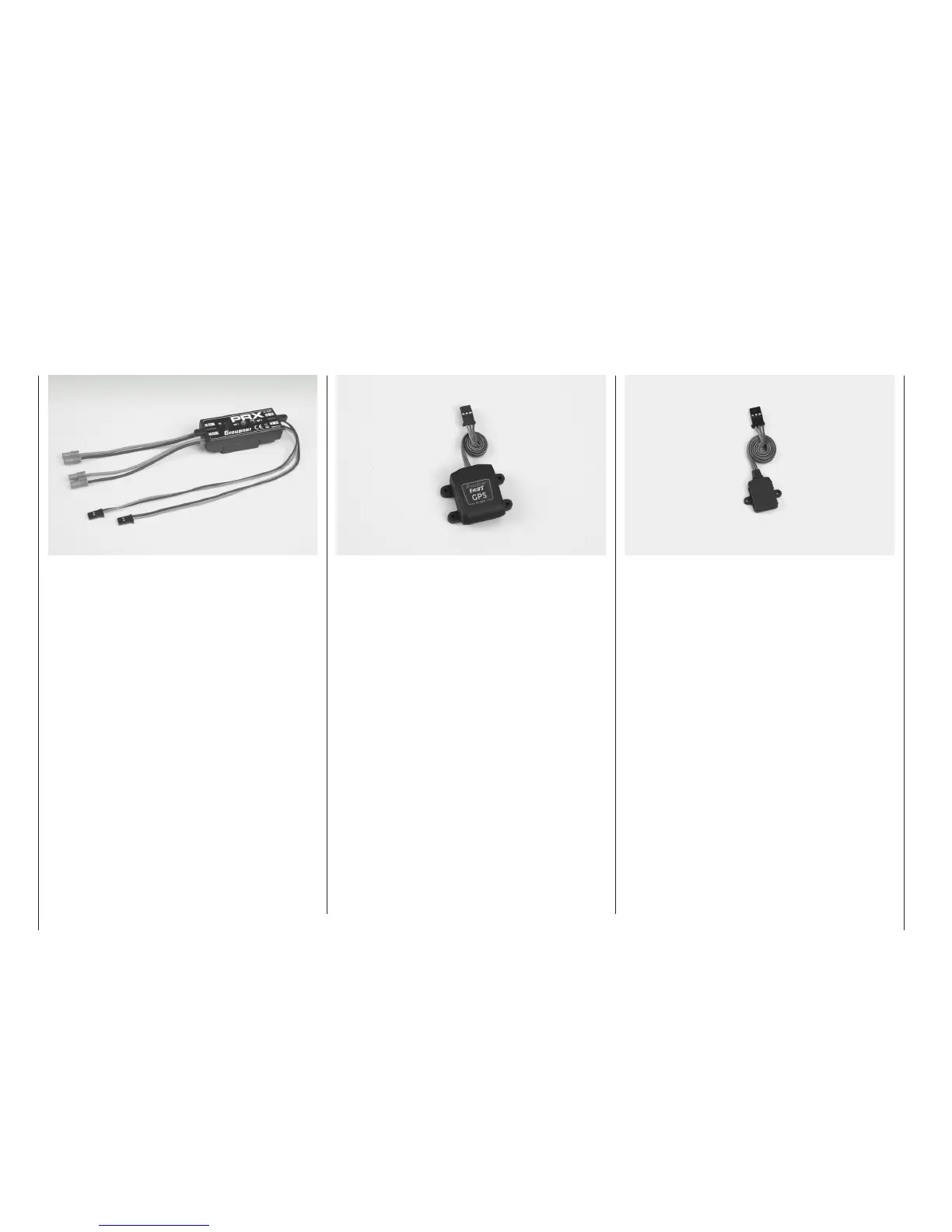

Vario Module Graupner HoTT
No. 33601
Variowith altitude signals and 5 tones for ascending and descend-
ing, altitude display and storage of min. and max. altitude.
• Additional warning thresholds for min. altitude, max. alti-
tude,speed of ascent and descent in two levels
• Settable warning time: OFF, 5, 10, 15, 20, 25, 30 seconds, con-
stant
• Settable repeated warning time: constant, 1, 2, 3, 4, 5 min., once
• The Vario sensor can be connected directly to the telemetry in-
put of the receiver.
Technical Data
• Altitude measurement: -500 m to +3000 m
• Resolution: 0.1 m
• Vario sensitivity: programmable 0.5 m/3s, 1 m/3 s, 0.5 m/s, 1 m/s,
3 m/s pro tone
• Average calculation: programmable 4 - 20 measurements per
measured value
PRX (Receiver Power)
No. 4136
Highly developed, stabilized receiver power supply with intelligent
power management.
The unit offers a stabilized and adjustable receiver power supply to
further enhance the reliability of the power supply. Compatible with
different receiver batteries for uncomplicated, wide-ranging use. If
the battery voltage fails during operation, this event is saved and
displayed to help prevent the use of a receiver battery (which is too
small), or to prevent battery failure.
• For operation with one or two receiver batteries (simultaneous
discharge when twobatteries are used).
• Appropriate for a 5- or 6-cell NiMH battery, or 2-cell LiPo or LiFe
battery Graupner/JR, G3,5, G2 and BEC plug-in systems.
• Three adjustable levels for the output voltage to supply the re-
ceiver (5.1 V / 5.5 V / 5.9 V).
• Two ultrabright LEDs separately display the charge of battery 1
and battery 2.
• Integrated high-quality On/Off switch
• High-current resistant design
• Flatter switch and LED construction not to influence the charac-
teristics and the optic of the model
• Flatter design of the fastening brackets, LEDs and switches for
easy installation with an accompanying drilling template.
Graupner HoTT GPS/Vario Module
No. 33600
Vario with altitude signals and five tones for ascending and de-
scending, an integrated GPS with distance measurement, travel
measurement, speed display, and flight direction/coordinates dis-
play.
• Additional warning thresholds for min. altitude, max. alti-
tude,speed of ascent and descent in two levels
• Altitude display and storage of min. and max. altitude.
• Settable warning time: OFF, 5, 10, 15, 20, 25, 30 seconds, con-
stant
• Settable repeated warning time: constant, 1, 2, 3, 4, 5 min., once
• The Vario sensor can be connected directly to the telemetry in-
put of the receiver.
Technical data for the Vario:
• Altitude measurement: -500 m to +3000 m
• Resolution: 0.1 m
• Vario sensitivity: programmable 0.5 m/3s, 1 m/3 s, 0.5 m/s, 1 m/s,
3 m/s pro tone
• Average calculation: programmable 4 - 20 measurements per
measured value
