D/R,EXP
Control Attitude Settings for Control Functions 2, 3 and 4
The dual rate/expo function allows users to assign
switches and phases to change or influence the con-
trol deflections and characteristics of channels 2, 3
and 4.

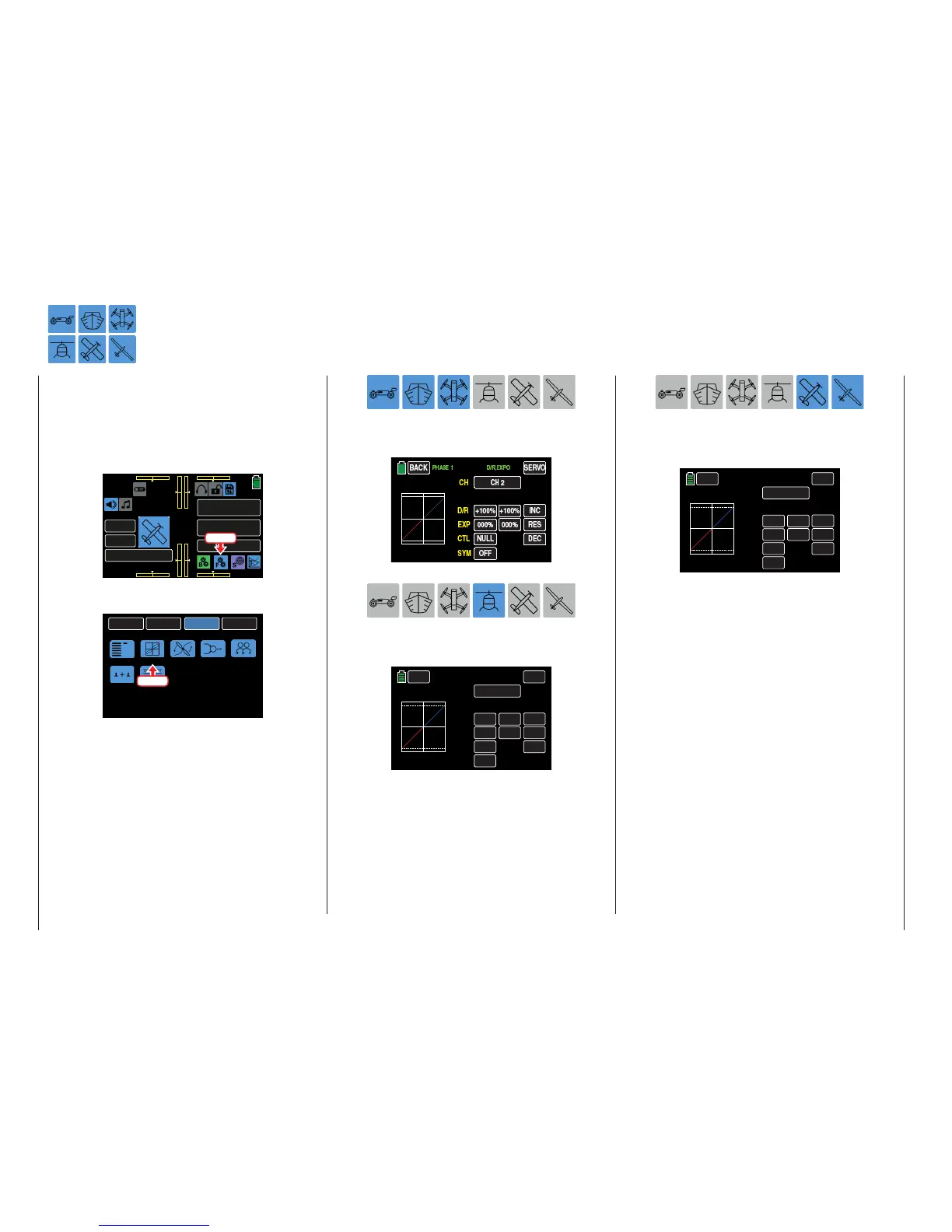

To change these settings, from the main display press
the FUNCTION menu gear icon (blue “F”) to bring up
the FUNCTION submenu screen:
000
000
000
000
mz
000%
000%
BATT TIME 00: 01: 23
MODELLNAME 1
M - 1
PHASE 1
000:00.0
000:00.0
4.2V
0:01:23
Press
From the FUNCTION submenu display, press the
D/R,EXP icon:
BACK
SYSTEM
BASE
FUNCTION
Phase
D/R,EXP
THR.CRV
Prog.MIX
Trainer
Sequence
Logical sw
Press
This procedure is identical for all models, but the
channel page labeling differs between models. Refer
to the model type to understand the different values in
the field to the right of the CH line.
For all CARS, BOATS or DRONES, the channel set-
ting pages of this submenu are labeled CH2, CH3 and
CH4, as shown below:
For all HELICOPTERS, the channel setting pages of
this submenu are labeled ROLL (CH2), NICK (CH3)
and TAIL (CH4), as shown below:
BACK
CH
D/R
EXP
CTL
ROLL
+100%
+100%
NULL
INC
RES
DEC
PHASE 1
000%
000%
SERVO
SYM
OFF
D/R,EXP
For all AIRPLANES or GLIDERS, the channel setting
pages of this submenu are labeled AILE (CH2), ELEV
(CH3) and RUDD (CH4), for aileron, elevator and rud-
der, as shown below:
BACK
CH
D/R
EXP
CTL
AILE
+100%
+100%
NULL
INC
RES
DEC
PHASE 1
000%
000%
SERVO
SYM
OFF
D/R,EXP
Tip
The 7 individual characteristic curve points for control
function CH1 (throttle/brake) can be set in the follow-
ing sections: all models except helicopters FUNCTION
submenu THR.CRV (page 128), and helicopter models
FUNCTION submenu THR.CRV (page 160).
Dual Rate enable the control surface deflection limits
to be changed while still retaining full stick movement,
i.e. ‘normal’ deflection plus a setting for decreased/
increased deflection limits at full stick movement. D/R
acts independently from functions that associate a
single servo or are actuated thorough a complex mix-
er or coupling function by multiple servos. (Refer to
the BASE submenu CTL Set (page 90) or Definition
of Terms Control Function (page 24) for additional
information.)
The control deflections can be set for each switch
position between 0 and 125% of the normal control
travel.
EXP allows users to adjust the sensitivity of the con-
trol surface deflection around smaller stick move-
ments. For example, the elevators are barely moved
when the stick moves around its central position, but
124 Function menu | general - DR/Expo
