This manual is grouped by model type. Refer to sec-
tions of the appropriate model type for programming
information specific to that model. For example, infor-
mation specific to airplanes and gliders, look for any/
all of the following two icons to be highlighted blue:
Installation Notices
Notice
The servos must be connected to the receiver in
the indicated sequence. Leave outputs that are
not required unassigned.
Follow the instructions on the following pages.

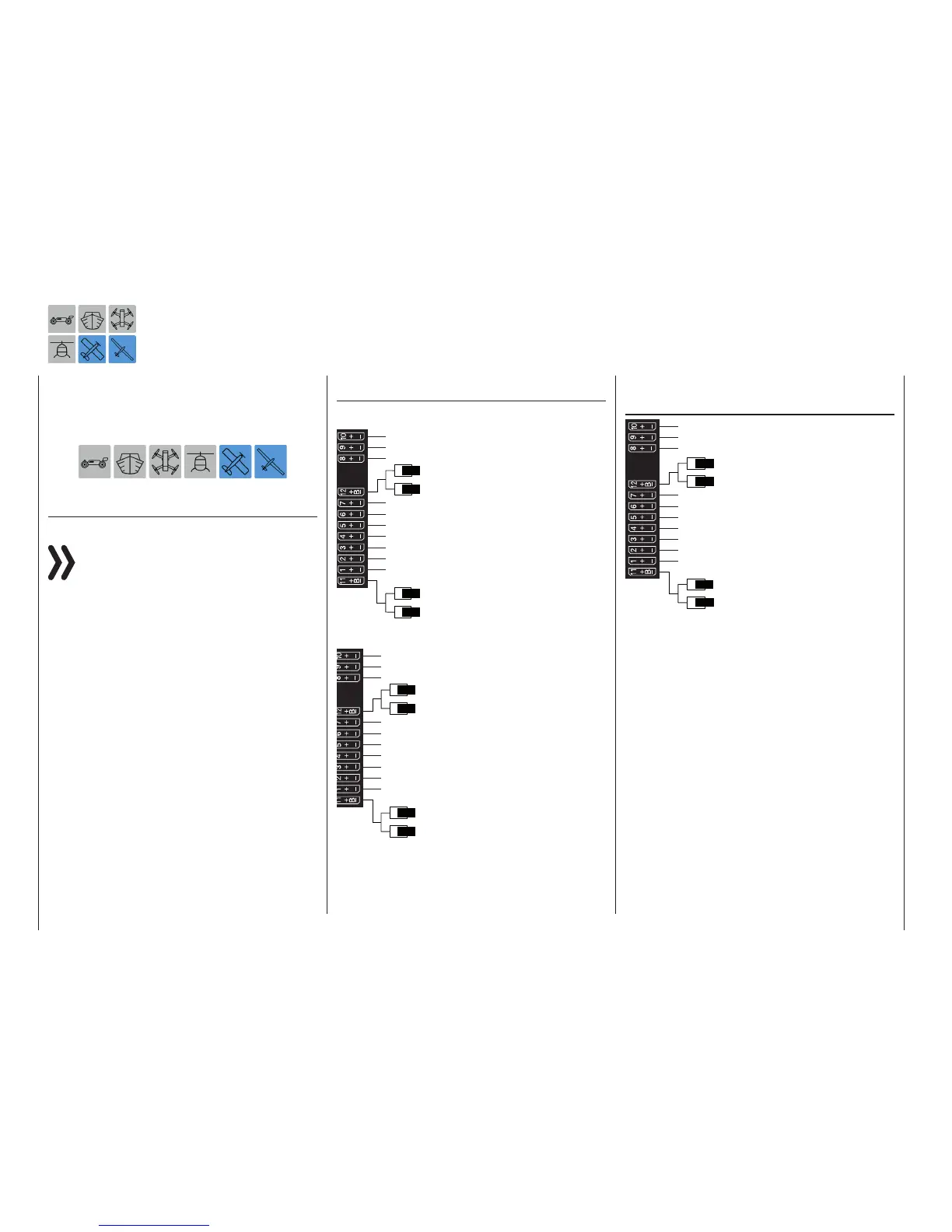

Fixed-Wing Models With or Without Motor - Up to
4 Ailerons and 4 Flaps
Normal Tail Unit or 2 Elevator Servos
receiver power supply
free or AILERON2 left or special function
free or AILERON2 right or special function
rudder
AILERON or AILERON left
elevator or elevator1
free or 2nd elevator or special function
receiver power supply
Airbrake or engine servo or electric drive controller
AILERON right or special function
FLAP of FLAP left
FLAP right or free or special function
free or FLAP2 left or special function
free or FLAP2 right or special function
V-Tail Unit
receiver power supply
free or special function
free or special function
AILERON or AILERON left
free or special function
receiver power supply
airbrake or engine servo or electric drive controller
AILERON right or special function
FLAP or FLAP left
FLAP right or free or special function
free or FLAP2 left or special function
free or FLAP2 right or special function
elevator/rudder left
elevator/rudder right
Receiver Configuration
Motor-Powered Airplanes and Gliders
Delta/Flying Wing Models With or Without Motor
- Up to 4 Ailerons/Elevators and 4 Flap/Elevator
Servos
receiver power supply
free or special function
free or special function
aile/elev left
aile/elev right
free or special function
receiver power supply
Airbrake or motor servo
or ESC for electric models
free or special function
fre or flap / elev left
free or flap / elev right
free or special function or flap 2 / elev left
free or special function or flap 2 / elev right
free or rudder
