Notice
Do not use the CH6 (helicopter) or CH1 (all other
models) servo reverse option to reverse the con-
trol stick direction. The Thr.HOLD function ac-
tive warning CH1-Pos does not follow this kind of re-
verse control direction. Only use for situation adaptation.
To reverse the control direction, use the FUNCTION
submenu PIT.CRV (page 154) for helicopters models
and THR.CRV (page 128) for all the other model types.

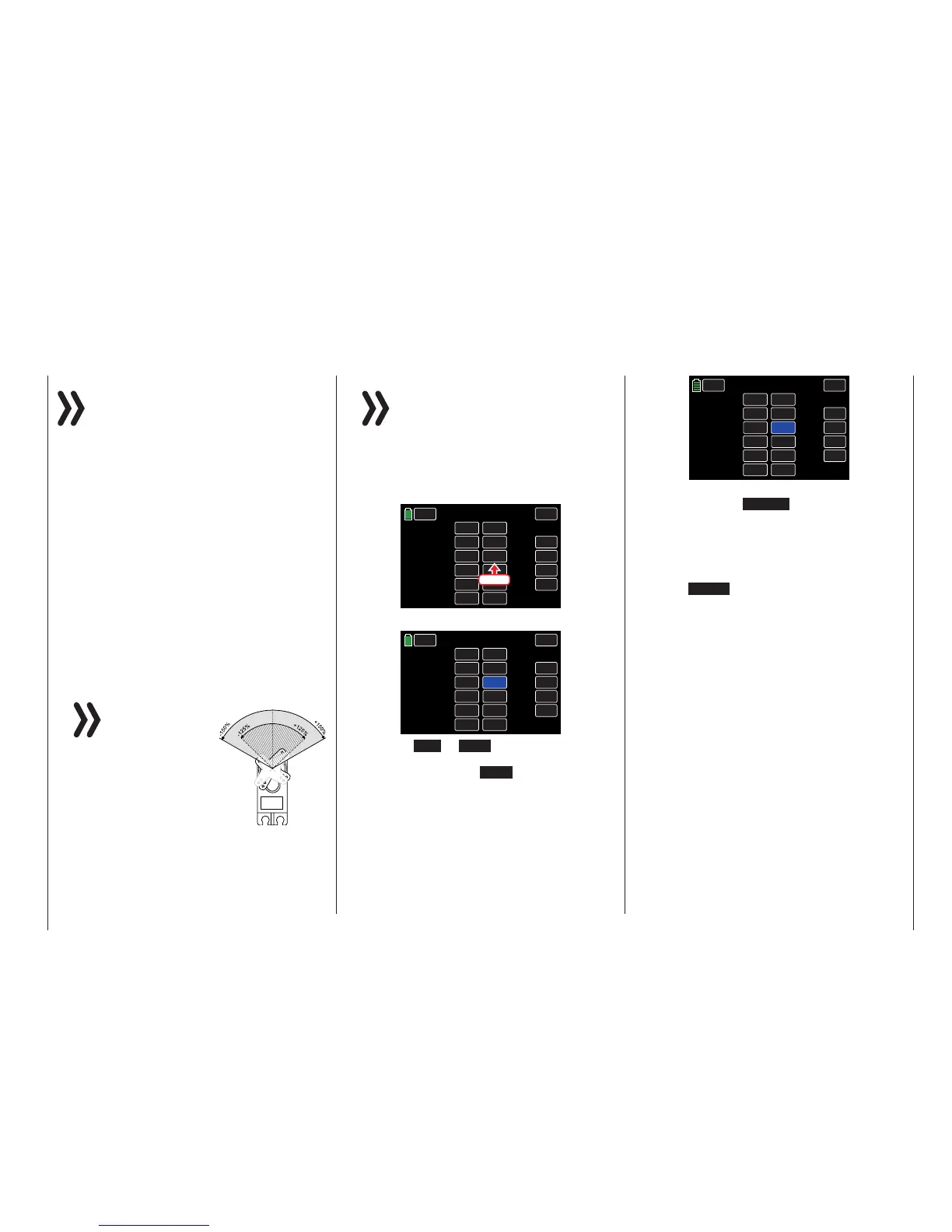

2. Setting the Center Stick Position
The servo middle position is for adapting servos
that are not standard (servo middle position with
a pulse length of 1.5 ms or 1500 μs ) as well as
for minor adaptations, for example fine adjustment
to the neutral position of control surfaces on the
model.
Independent of trim controls and any mix settings,
the center stick position can be shifted around
±125% within the maximum servo travel of ±150%.
The servo is always adjusted independently of all
other trim and mix settings.
Notice
Note that if the neu-
tral position is ad-
justed strongly, ser-
vo travel on one side may
be restricted since the total
travel is limited to ±150%
for electronic and mechani-
cal reasons.
S
e
e
l
C
e
n
t
r
e
a
d
j
u
s
t
m
e
n
t
Notice
Move the trim control into the middle position
before changing the middle values.
Programming
To change the neutral position of a specific servo,
press the corresponding SUB.TR button:
BACK
SERVO
CH 1.
CH 2.
CH 3.
CH 4.
CH 5.
CH 6.
INC
RES
DEC
000%
000%
000%
000%
000%
000%
NOR
NOR
NOR
NOR
NOR
NOR
REV
SUB.TR
NEXT
Press
The field highlights blue:
BACK
SERVO
CH 1.
CH 2.
CH 3.
CH 4.
CH 5.
CH 6.
INC
RES
DEC
000%
000%
000%
000%
000%
000%
NOR
NOR
NOR
NOR
NOR
NOR
REV
SUB.TR
NEXT
Press the INC or DEC button at the right edge
of the display to increase/decrease the value of the
active field. Press the RES button to reset the
changed value back to the default. Alternatively,
press the arrow keys ( pq ) to the left of the dis-
play screen to achieve the same result:
BACK
SERVO
CH 1.
CH 2.
CH 3.
CH 4.
CH 5.
CH 6.
INC
RES
DEC
000%
000%
+012%
000%
000%
000%
NOR
NOR
NOR
NOR
NOR
NOR
REV
SUB.TR
NEXT
To advance directly to the BASE submenu Servo
display, press the SERVO button in the top right
corner of the screen. Alternatively, simultaneously
press the arrow keys ( pq ) to the left of the dis-
play (while no fields are highlighted) to also bring
up the Servo display.
Press the BACK button to return to the REV/SUB
display screen.
65
Base menu - Servo reverse/Servo center
