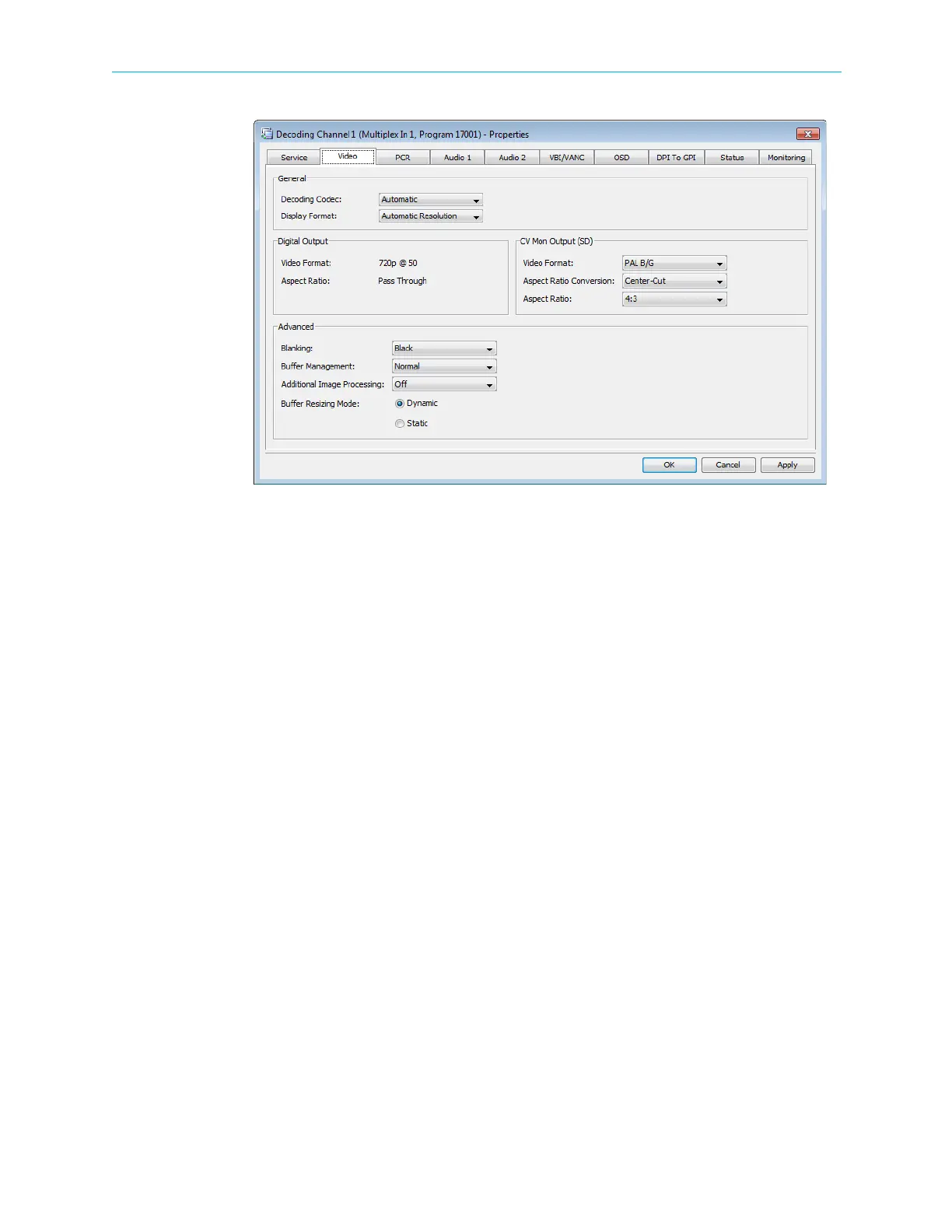

Figure 7–16: Decoding Channel Properties – Video tab
High Definition (HD) Digital Output parameters:
■ Video Format – selects the video format.
Options: 720p@50, 720p@59, 720p@60, 1080i@50, 1080i@59, 1080i@60.
■ Aspect ratio Conversion – selects the aspect ratio conversion for the output stream. To be
performed if the incoming stream aspect ratio is not the same as the configured output
aspect ratio.
Options:
❑ Pillarbox (Side-bars)
❑ Full Screen
❑ Letterbox
❑ Center-cut
■ CV Mon Output (SD) – sets the parameters for the SD analog (CV) monitoring output,
consisting of SD video format, SD aspect ratio and aspect ratio conversion.
