Chapter 7 Device Configuring Using EMS Device Properties
© 2012 Harmonic Inc. 157 ProView 7000 v.2.6, Rev. E

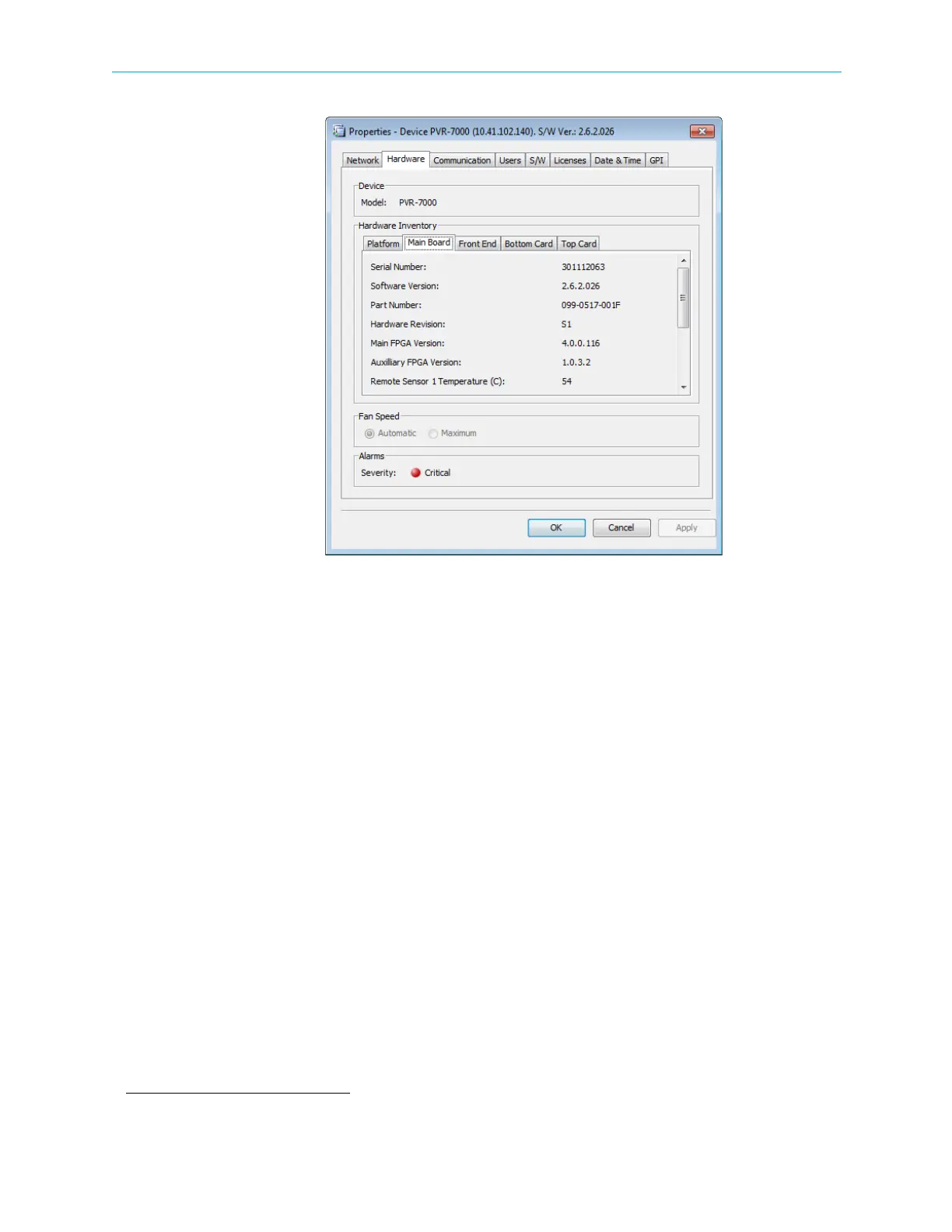

Figure 7–39: Device properties dialog – Hardware – Main Board tab
Front End
The Front End properties tab displays the following parameters on the front end unit installed
in the device:
■ Front End Type
■ Part number
■ Serial number
■ Hardware Revision information
■ Front End sensor temperature (in °C)
■ Front End FPGA version number
■ DVB-S and DVB-S2
14
(if available) demodulator version information
14. Requires a license with some hardware configurations, see B.6 Front End Card Features for details.
