Appendix B Connectors and Front End Card Options Overview of Rear Panel Ports and Connectors
© 2012 Harmonic Inc. 183 ProView 7000 v.2.6, Rev. E

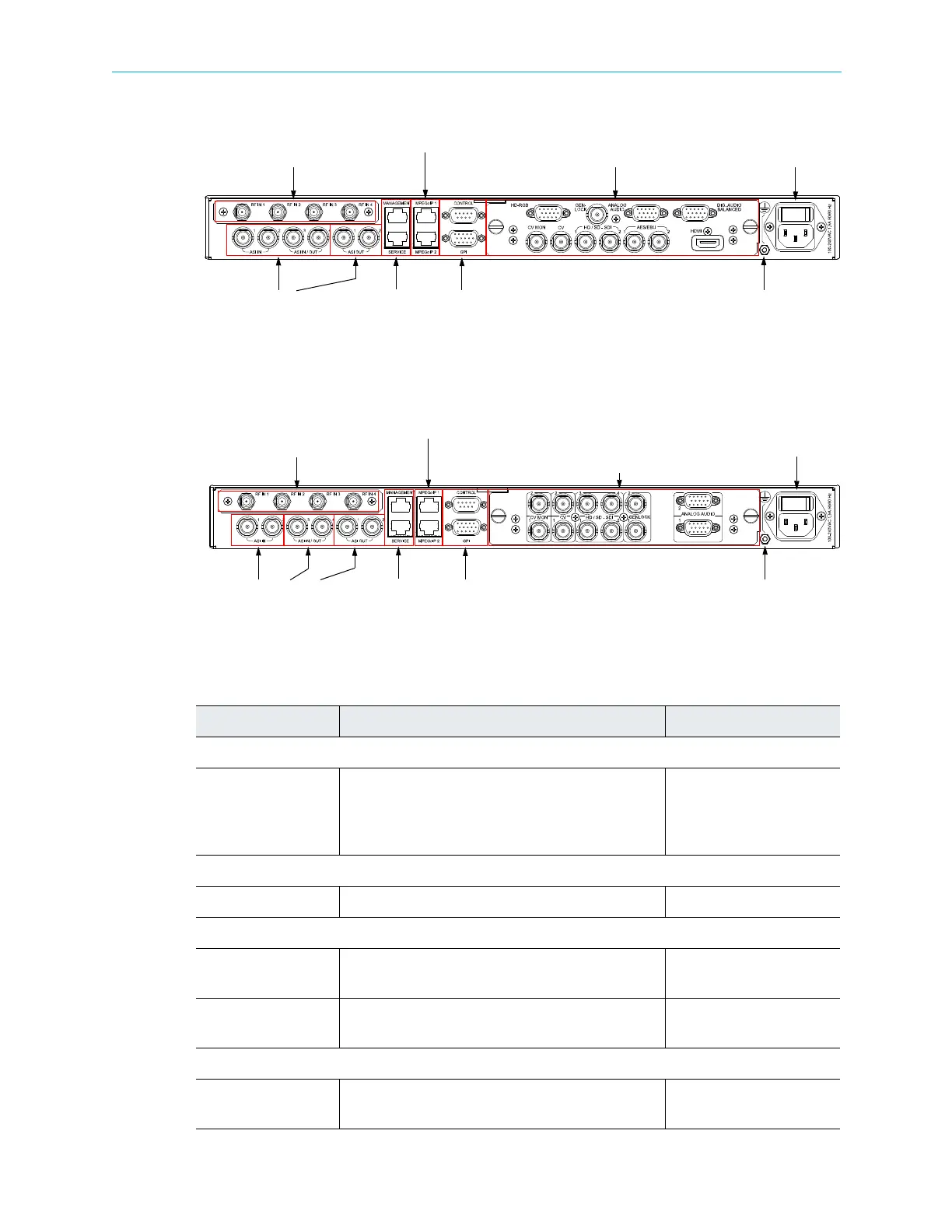

Figure B–3: ProView 7100™ Decoder Rear Panel
Figure B–4: ProView 7100™ Decoder Rear Panel with Dual Decoder and genlock
Table B–1: Rear Panel Ports and Connectors
Interface Description Connector Type
DVB-S/S2 front-end module
RF IN
1
1 x DVB-S/S2 RF modulated input stream with single
port demodulator card
4 x DVB-S/S2 RF modulated input stream with quad
port demodulator card
F-Type, 75 Ω
MPEGoIP ports
MPEGoIP 1 & 2 2 x GbE data ports 100/1000 Base-T, RJ-45
ASI in/out ports
ASI IN 1, 2, 3 & 4 2 x ASI input stream – ProView 7100™
4 x ASI input stream – ProView 7000™
BNC, 75 Ω
ASI OUT 1, 2, 3 & 4 2 x ASI output stream – ProView 7000™
4 x ASI output stream – ProView 7100™
BNC, 75 Ω
Decoder module, audio/video output interface
HD-RGB 1 x RGB High Definition video output with single
decoder
D-Type, 15-pin condensed
DVB-S/S2
front-end module
Decoder module,
audio/video output interface
ASI in/out ports
Grounding
Jackscrew
AC power connector
and switch
Management
and service
MPEGoIP ports
Control and GPI
DVB-S/S2
front-end module
Dual decoder module,
audio/video/genlock output
interface
ASI in/bi/out ports
Grounding
Jackscrew
AC power connector
and switch
Management
and service
MPEGoIP ports
Control and GPI
