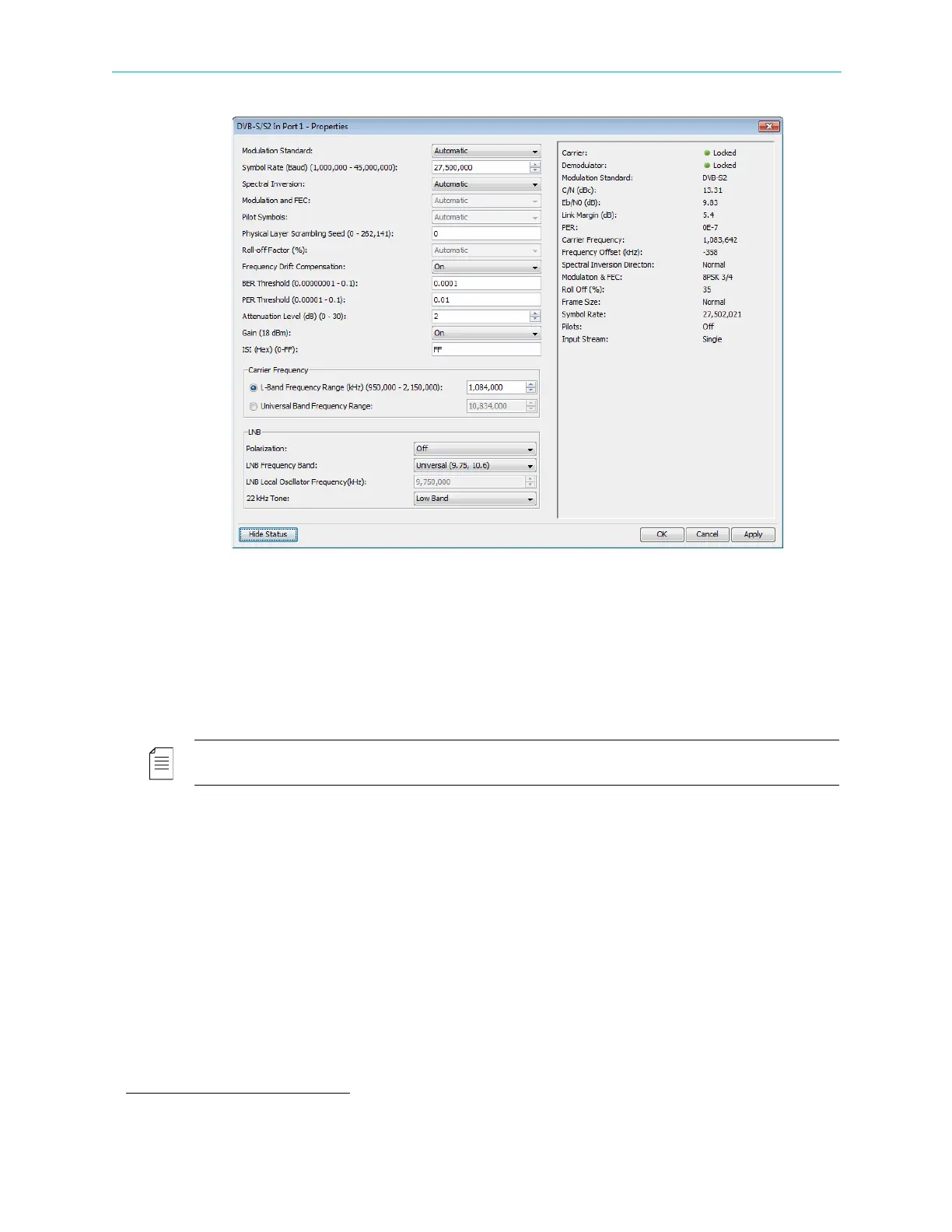

Figure 7–1: DVB-S/S2 Input Port Properties
The editable properties comprise of the following:
■ Modulation Standard – Options:
❑ Automatic
4
❑ DVB-S
❑ DVB-S2
4
NOTE: Some of the following properties are relevant for only one modulation standard (DVB-S or DVB-S2)
and displayed accordingly.
■ Symbol Rate – Sets the symbol rate value. Range 1,000,000 – 45,000,000 Bd, adjustable in
100 Bd steps.
■ Spectral Inversion – Sets the mode of operation for the spectral inversion function.
Options:
❑ Automatic – Default for DVB-S.
4
❑ Normal – Default for DVB-S2.
4
❑ Inverted
4. Only available with certain hardware configurations, see B.6 Front End Card Features.
