Chapter 4: Spectrum X hardware reference
Key Component UHD link
8 Output, Secondary or HD/SD
branded
Output: B
NOTE: “HD/SD-branded” refers to Independent Branding mode.
NOTE: For input of non-UHD content, use I/O 2.

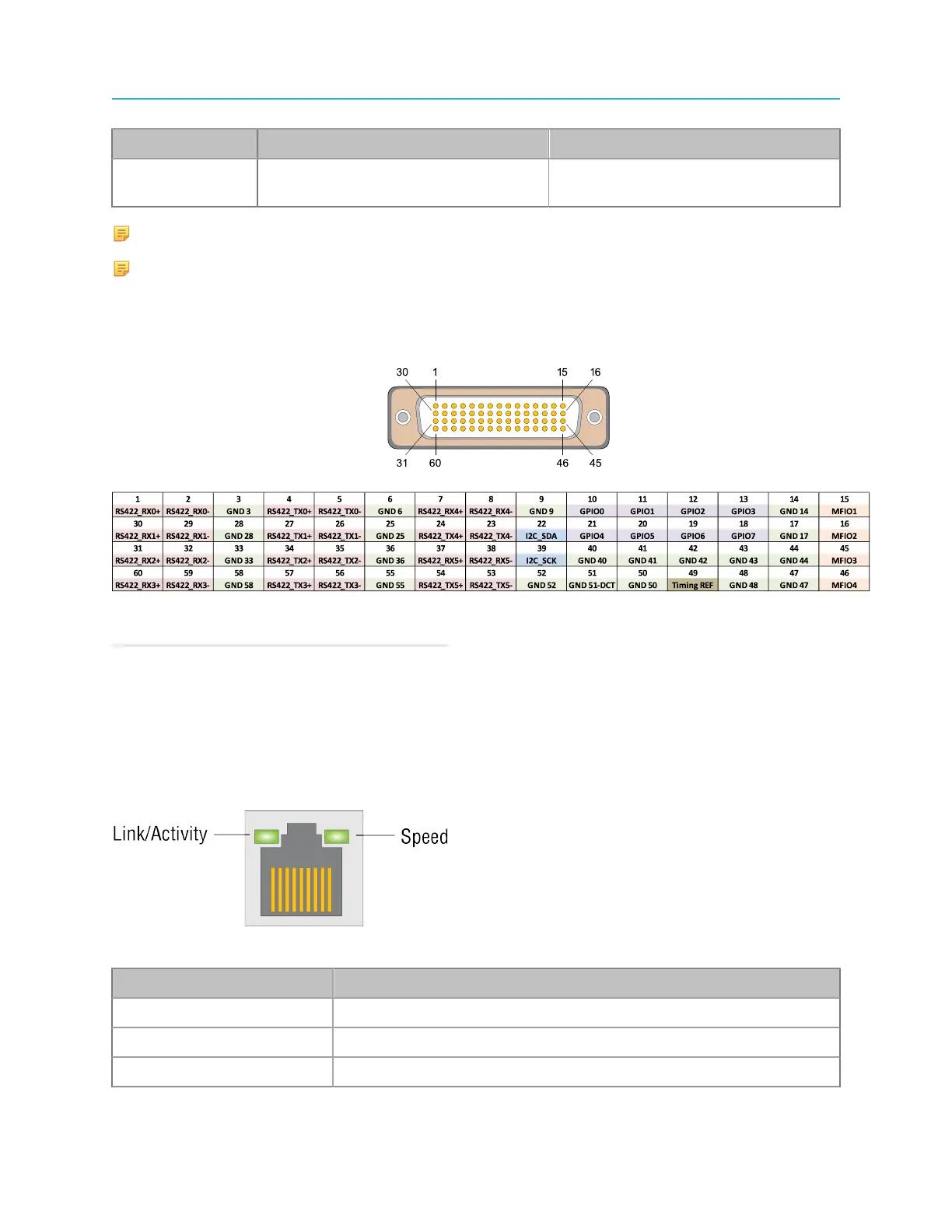

High Density DSUB 60 connector pinout
The DSUB 60 connector provides connections for RS-422, GPIO, reference video, and multi-function I/O.
Figure 4-9: DSUB 60 connector pinout
Related information
Breakout cable on page 114
Reference breakout cable on page 117
1 Gigabit Ethernet port LED states
The 1 Gigabit Ethernet ports can be used for system management or file transfers. The LEDs provide
information on link status, activity, and speed.
Figure 4-10: 1 Gigabit Ethernet port LED
LED/State Condition
Link/Activity: green (blink) Network activity
Link/Activity: green (solid) Network link established
Link/Activity: off No link
110
