Chapter 10: MediaStore 7200 series hardware reference
Disk drive LED indicators
Each disk drive has an Activity LED and a Status LED.

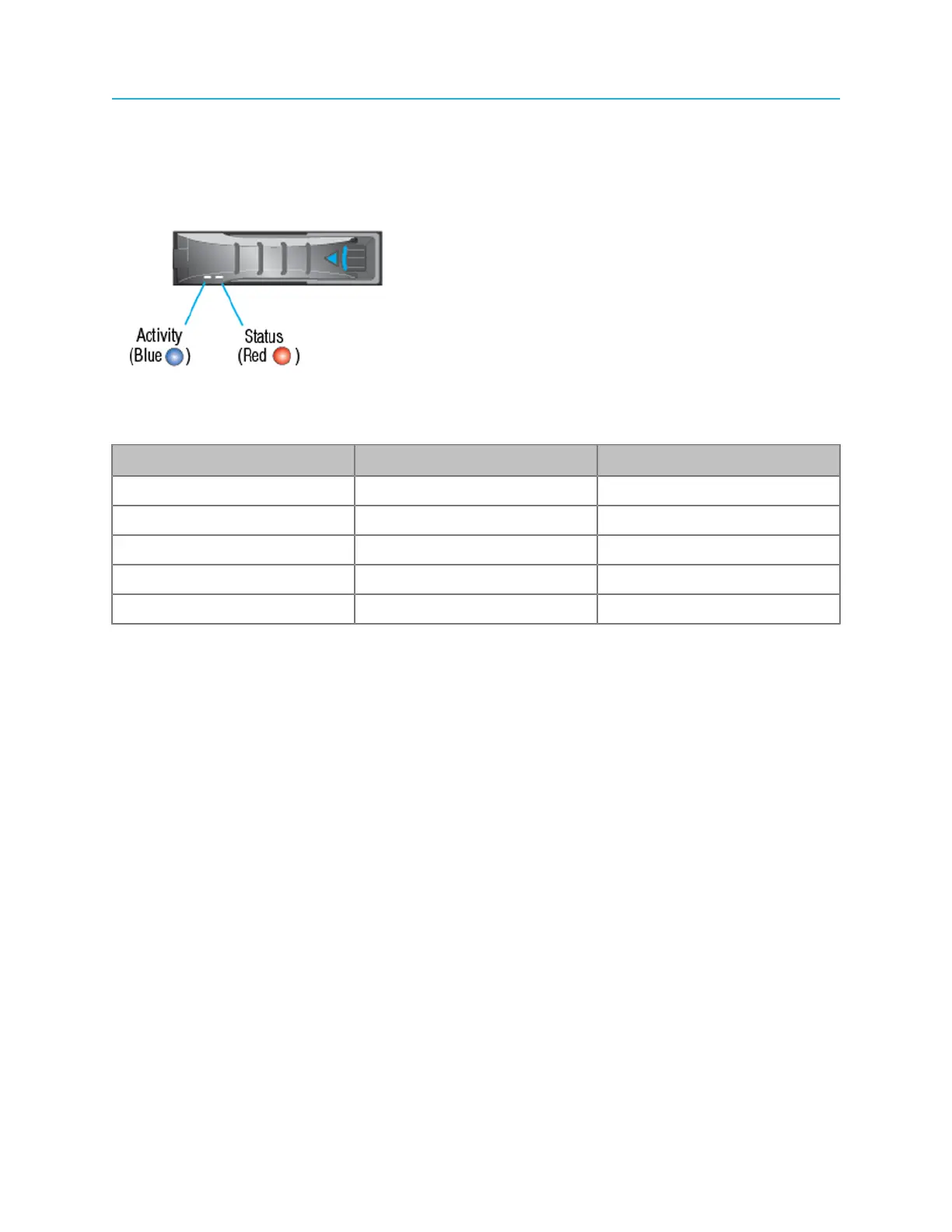

Figure 10-4: MediaStore 7200 disk drive LED indicators
Table 10-3: MediaStore 7200 disk drive LED indicators
Drive State Activity LED (Blue) Status LED (Red)
Drive is powered on Solid Off
Drive activity Blink Off
RAID rebuild in progress Blink Slow blink (1 Hz)
Drive failure Solid Rapid blink (2 Hz)
Drive is being winked Slow blink (1 Hz) Off
