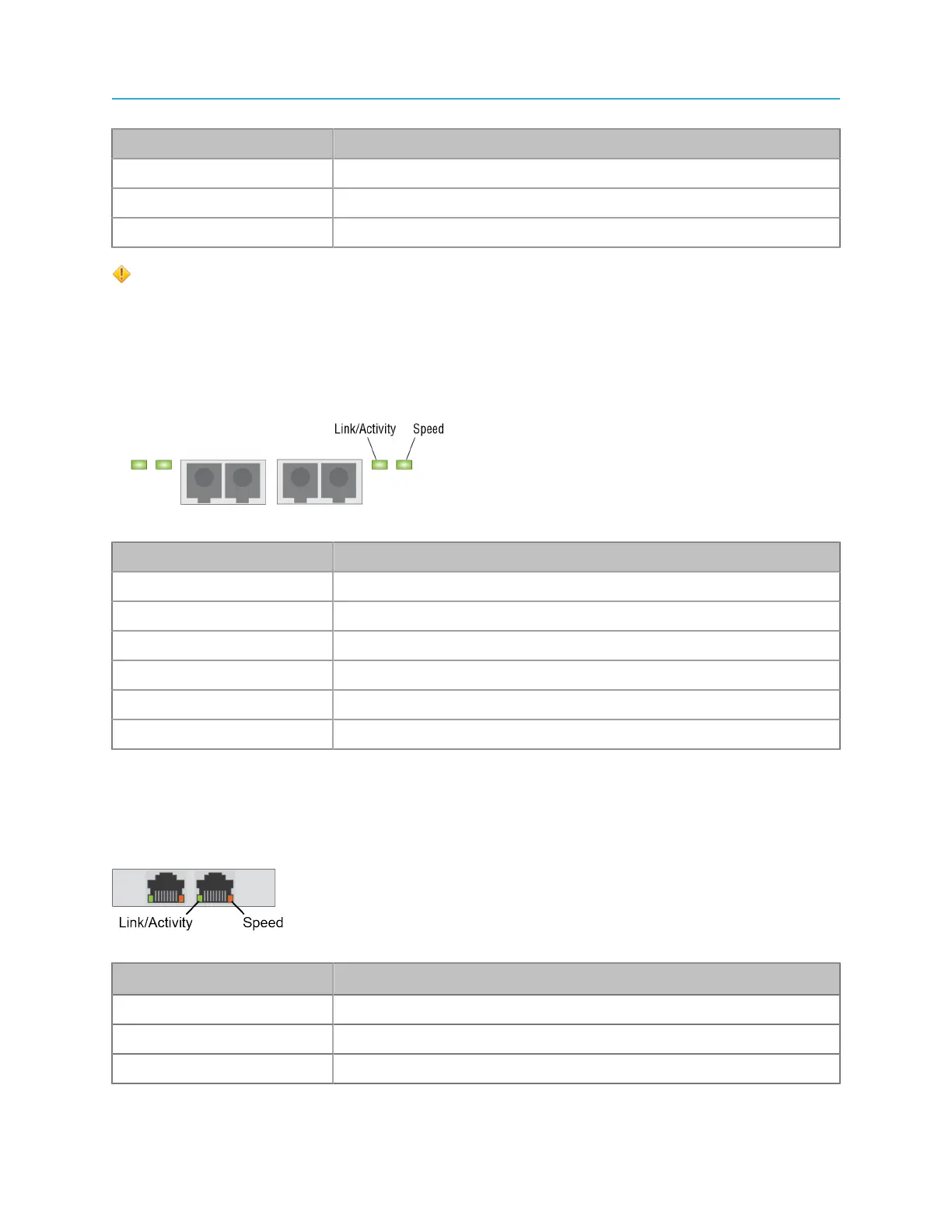

Spectrum X rear panel
LED/State Condition
Speed: green Network traffic at 1 Gbps
Speed: yellow Network traffic at 100 Mbps
Speed: off No link
CAUTION: If two power supplies are used, they must be of the same type and have the
same maximum output power.
10 Gb fiber optic port LED states
The optional 10 Gb fiber optic ports I/O module ports can be used for SMPTE 2022-6 video. The LEDs
provide information on link status, activity, and speed.
LED/State Condition
Link/Activity: green (blink) Network activity
Link/Activity: green (solid) Network link established
Link/Activity: off No link
Speed: green Network traffic at 10 Gbps
Speed: amber Network traffic at 1 Gbs
Speed: off Network traffic at 100 Mbps or no activity
10 Gb copper I/O module LED states
The optional 10 Gb copper I/O module ports can be used for SMPTE 2022-6 video. The LEDs provide
information on link status, activity, and speed.
LED/State Condition
Link/Activity: green (blink) Network activity
Link/Activity: green (solid) Network link established
Link/Activity: off No link
111 Spectrum System 8.4 Installation Guide
