Chapter 4: Spectrum X hardware reference
Breakout cable
Harmonic provides a breakout cable for use with the DSUB 60 connector, which provides six RS-422
connectors, one GPIO connector, a Reference In connector, and four multi-function I/O (MFIO)
connectors.

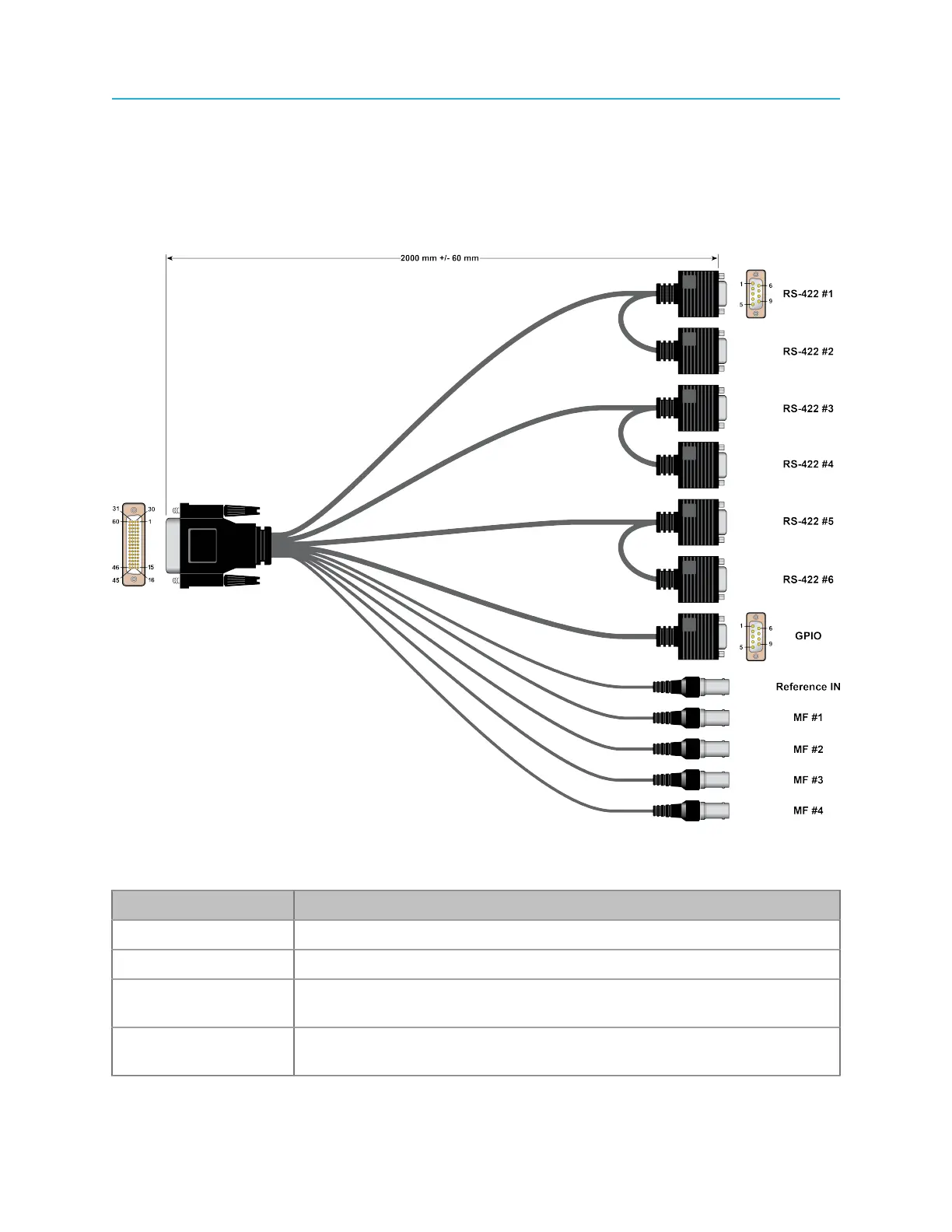

Figure 4-13: Breakout cable overview
Table 4-11: Breakout cable connector use
Connector Description
RS-422 #1 Use for channel A player control with VDCP
RS-422 #2 Use for channel B player control with VDCP
RS-422 #3 Use for Oxtel and EAS. Shown as Serial 0 in SystemManager or
Spectrum Management
RS-422 #4 Use for Oxtel and EAS. Shown as Serial 1 in SystemManager or
Spectrum Management
