Chapter 8: ChannelPort module hardware reference
Key Component Description
15 Gigabit Ethernet Port Not applicable for systems running 8.4 and later
software; only systems running 8.3.x.x and earlier
software use this port.
16 Gigabit Ethernet Port Used only in MediaPort 7000.
Related information
About MediaPort 7000 and ChannelPort timing on page 156
GPIO/RS-422 connector signal assignments on page 181
ChannelPort 8100 rear panel: Standard Channel mode
Review to the diagram and the table for details on the rear panel component functionality when
theChannelPort 8100 is in Standard Channel mode.

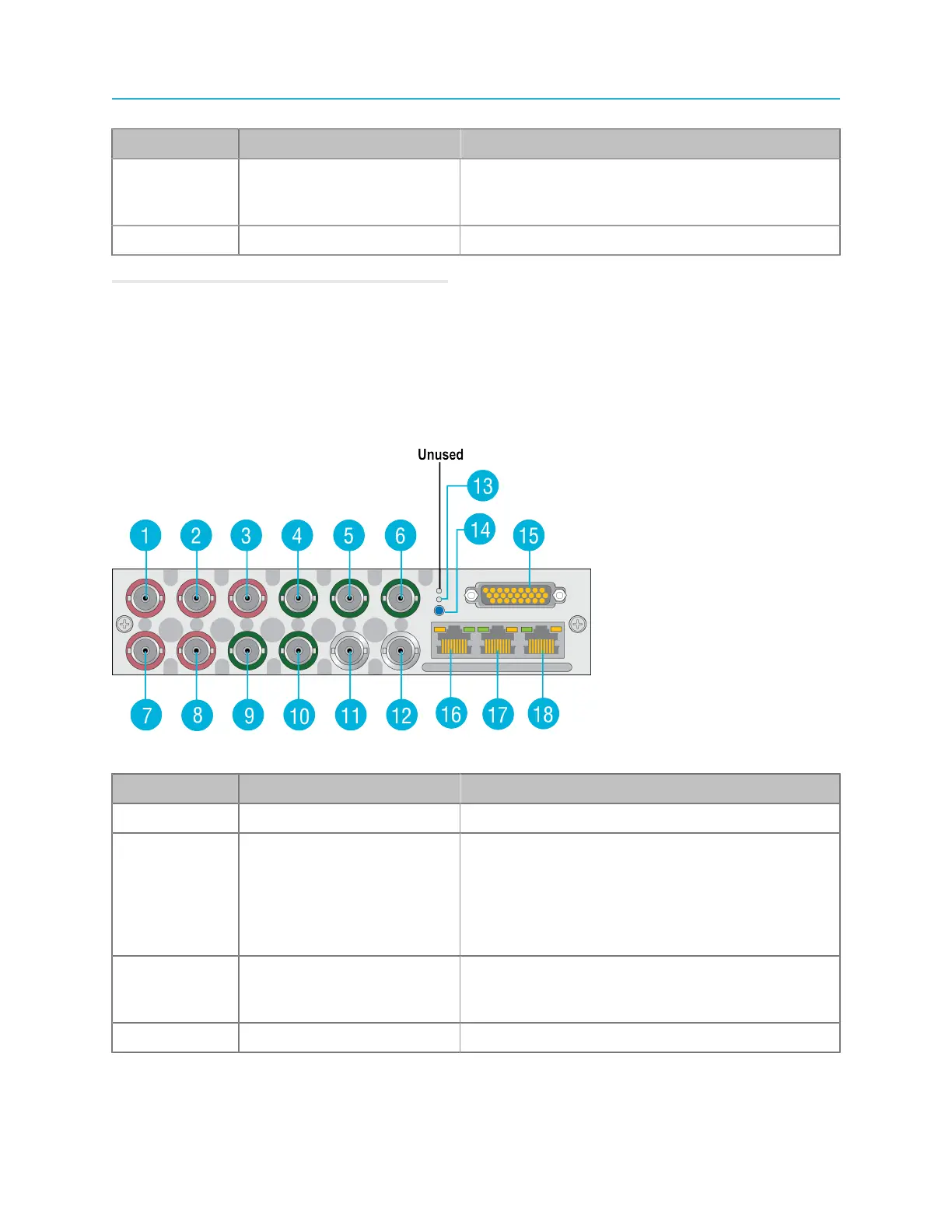

Figure 8-2: ChannelPort 8100 rear panel (Standard Channel mode)
Key Component Description
1 External Input 1 Channel A Use for video input on Channel A.
2 Video Output Channel A
(Primary)
Use for primary video output or for HD-branded
output when in Independent Branding mode on
Channel A. Refer to “Configuring a ChannelPort
channel” in the Harmonic SystemManager User
Guide for instructions on configuring Independent
Branding mode.
3 Video Output Channel A
(Secondary)
Use for secondary video output or for SD-branded
output when in Independent Branding mode on
Channel A.
4 External Input 1 Channel B Use for video input on Channel B.
174
