MediaDirector status LEDs
MediaDirector status LEDs
The MediaDirector status LEDs indicate basic information about the system.

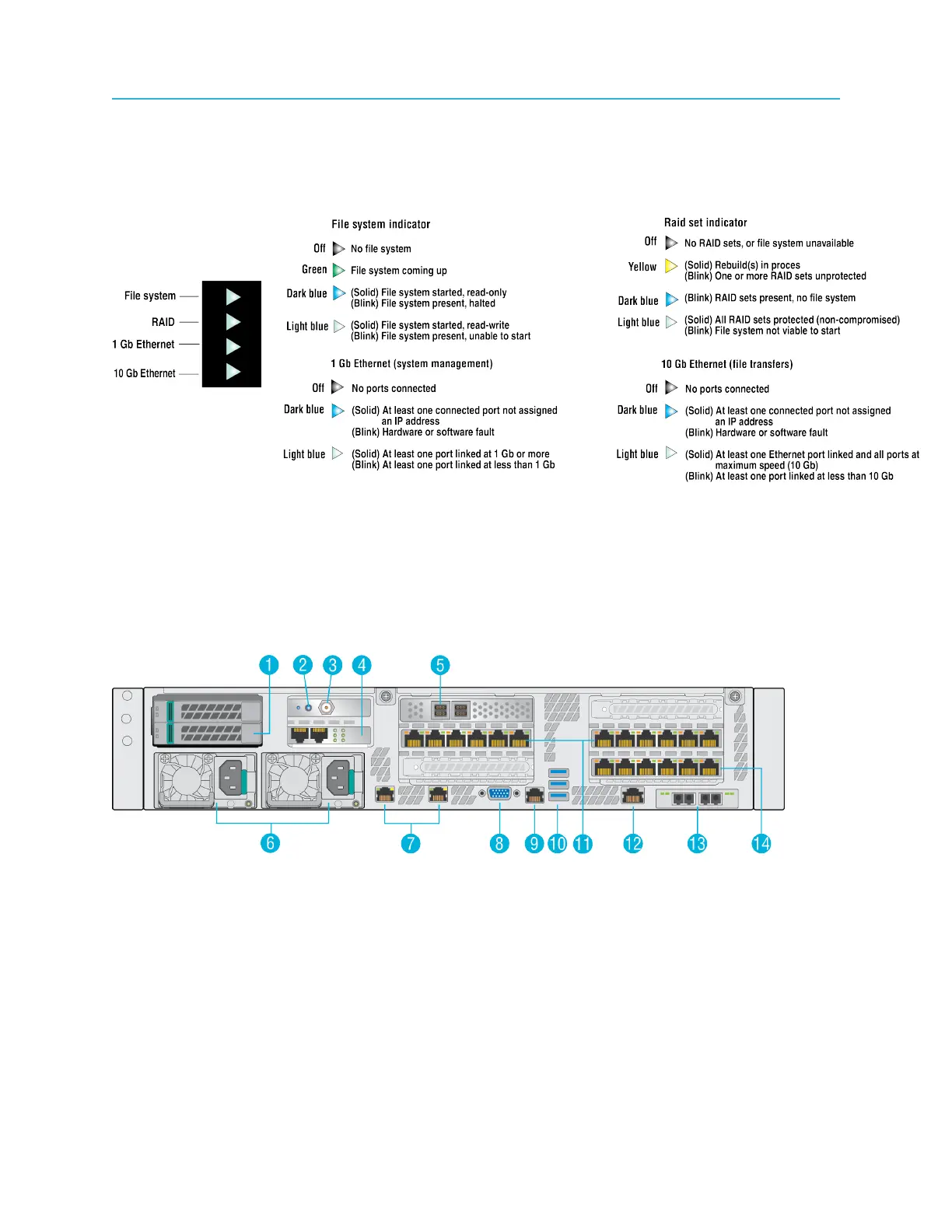

Figure 5-3: MediaDirector status LEDs
MediaDirector 2252B and 2252B-DS rear panel
The rear panel for the MediaDirector 2252B and 2252B-DS includes connections for I/O modules, as well
as 10 Gb Ethernet ports for file transfers, SAS connections for storage, and EFS connections.
Figure 5-4: MediaDirector 2252B rear panel
129 Spectrum System 8.4 Installation Guide
