Chapter 4: Spectrum X hardware reference
Use the Attach Devices page in SystemManager to configure LTC or AES audio for a connector. For
instructions, see "Attaching Devices and Setting Conversion Options" in the Harmonic SystemManager
User Guide.
Related information
Partial breakout cable on page 116
Breakout cable: RS-422 connector pinout
The breakout cable includes six RS-422 connectors, which can be used for control or EAS connections.

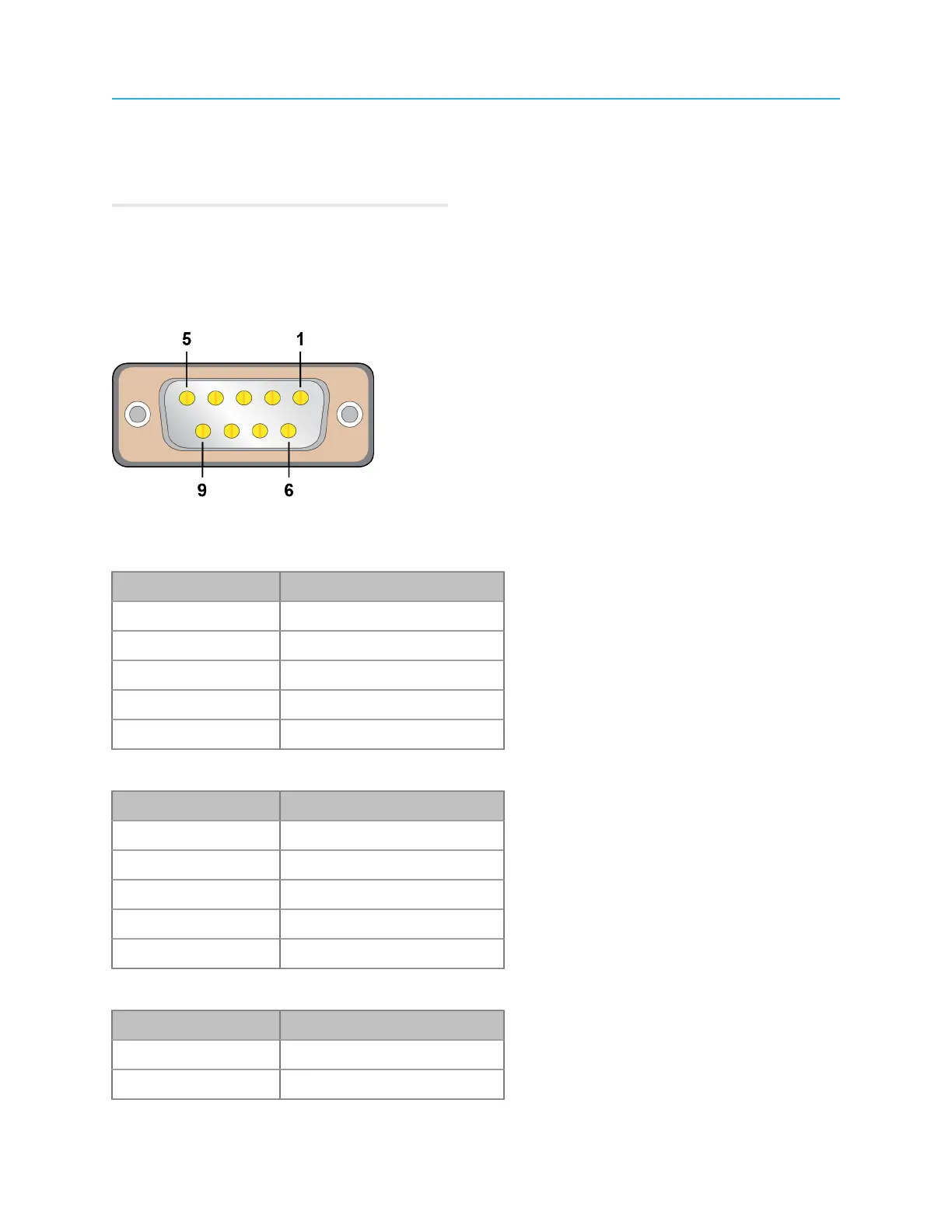

Figure 4-16: RS-422 connector pinout
Table 4-17: RS-422 connector #1
Pin Signal
8 RS422_RS0-
3 RS422_RS0+
shell GND 3
2 RS422_TS0-
7 RS422_TS0+
Table 4-18: RS-422 connector #2
Pin Signal
8 RS422_RS1-
3 RS422_RS1+
shell GND 28
2 RS422_TS1-
7 RS422_TS1+
Table 4-19: RS-422 connector #3
Pin Signal
8 RS422_RS2-
3 RS422_RS2+
