Harmonic Spectrum X - Power Supply LED States

Chapter 6: MediaCenter 2200B hardware reference
LED/State Condition
Link/Activity: off No link
Speed: green Network traffic at 10 Gbps
Speed: amber Network traffic at 1 Gbs
Speed: off Network traffic at 100 Mbps or no activity
MediaPort Ethernet array LED states
The MediaPort Ethernet array ports provide access to MediaPort, ChannelPorts, and Spectrum X.
Do not use these ports for any purpose other than I/O module connection.

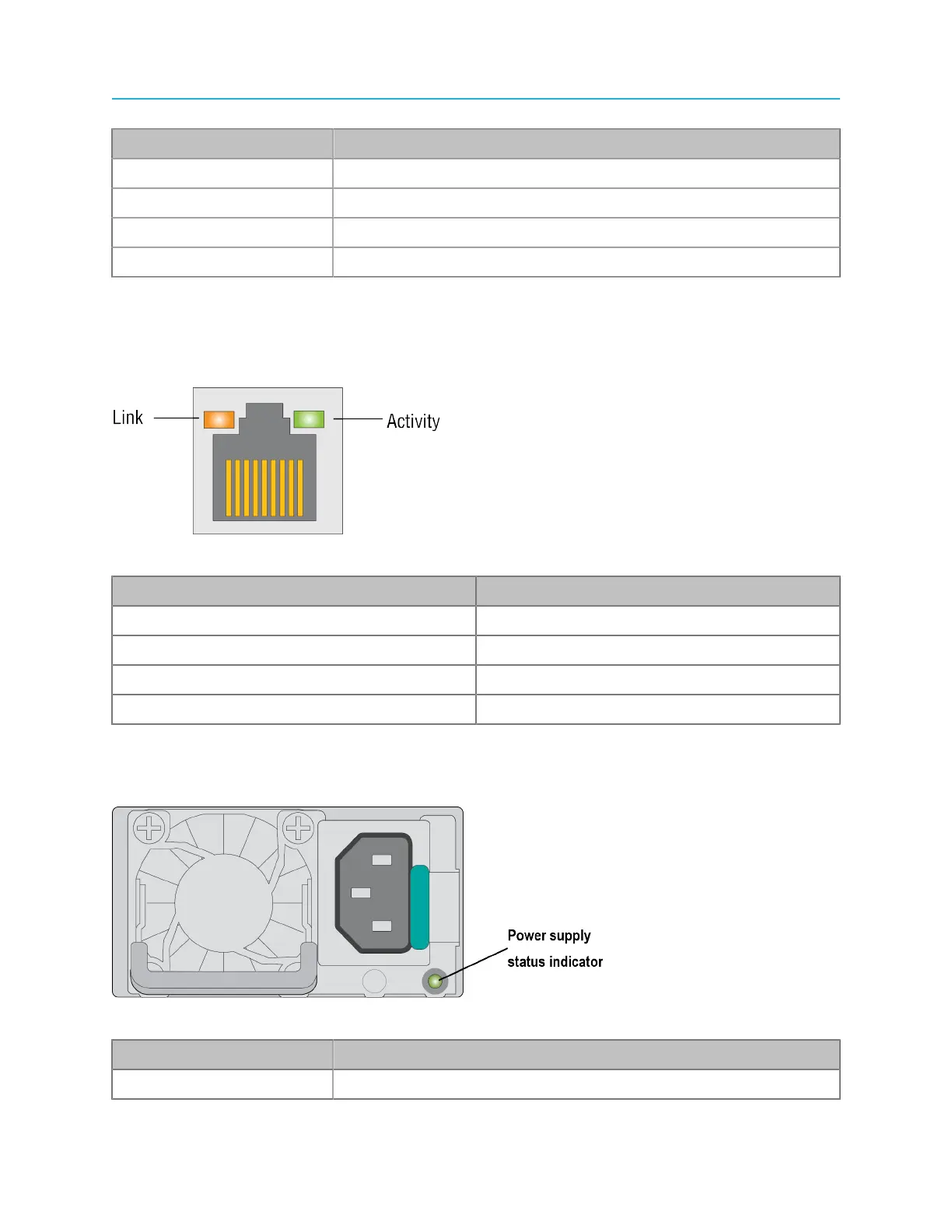

Figure 6-9: MediaPort Ethernet array LED states
LED/state Condition
Link: amber 100 Mbps
Link: green 1 Gbps
Link: off Inactive or 10 Mbps
Activity: green, blink Normal
Power supply LED states
Each power supply includes an LED to indicate the status of AC power to the system.
Figure 6-10: Power supply LED
LED state Condition
Off AC power is not connected.
146
