Control panel indicators
Control panel indicators
The control panel provides LED indicators for power, system status, temperature, and fans.

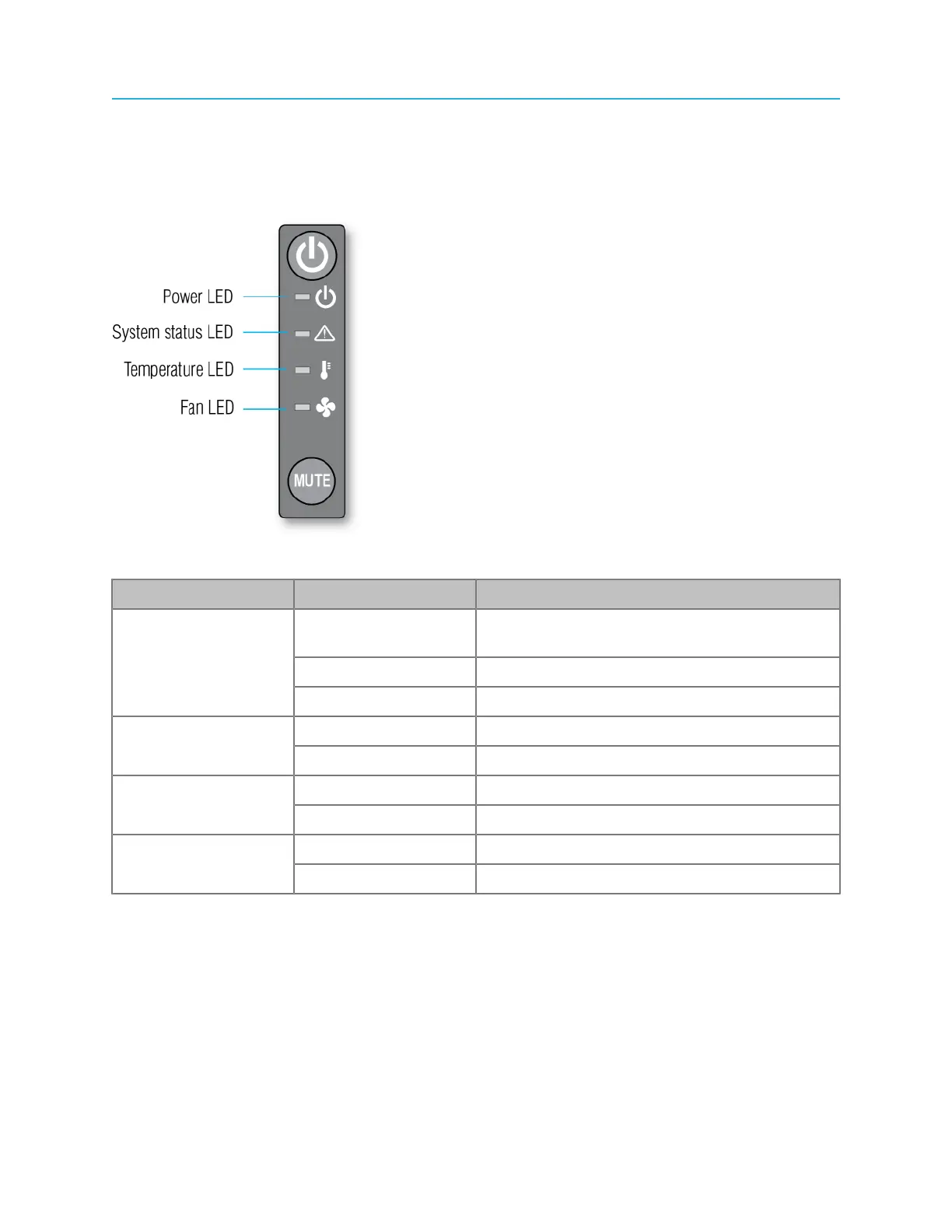

Figure 10-3: control panel
LED State Description
Blue Power is being supplied to both power supply
units.
Red Power supply fault detected.
Power
Off Power is off.
Off System is operating normally.System status
Red System fault detected.
Off Temperature is normal.Temperature
Red System is overheating.
Off Fans are operating normally.Fan
Red Fan fault detected.
221 Spectrum System 8.4 Installation Guide
