Chapter 5: MediaDirector hardware reference
LED State
100 On with 100 Mbps link
1000 On with 1 Gbps link

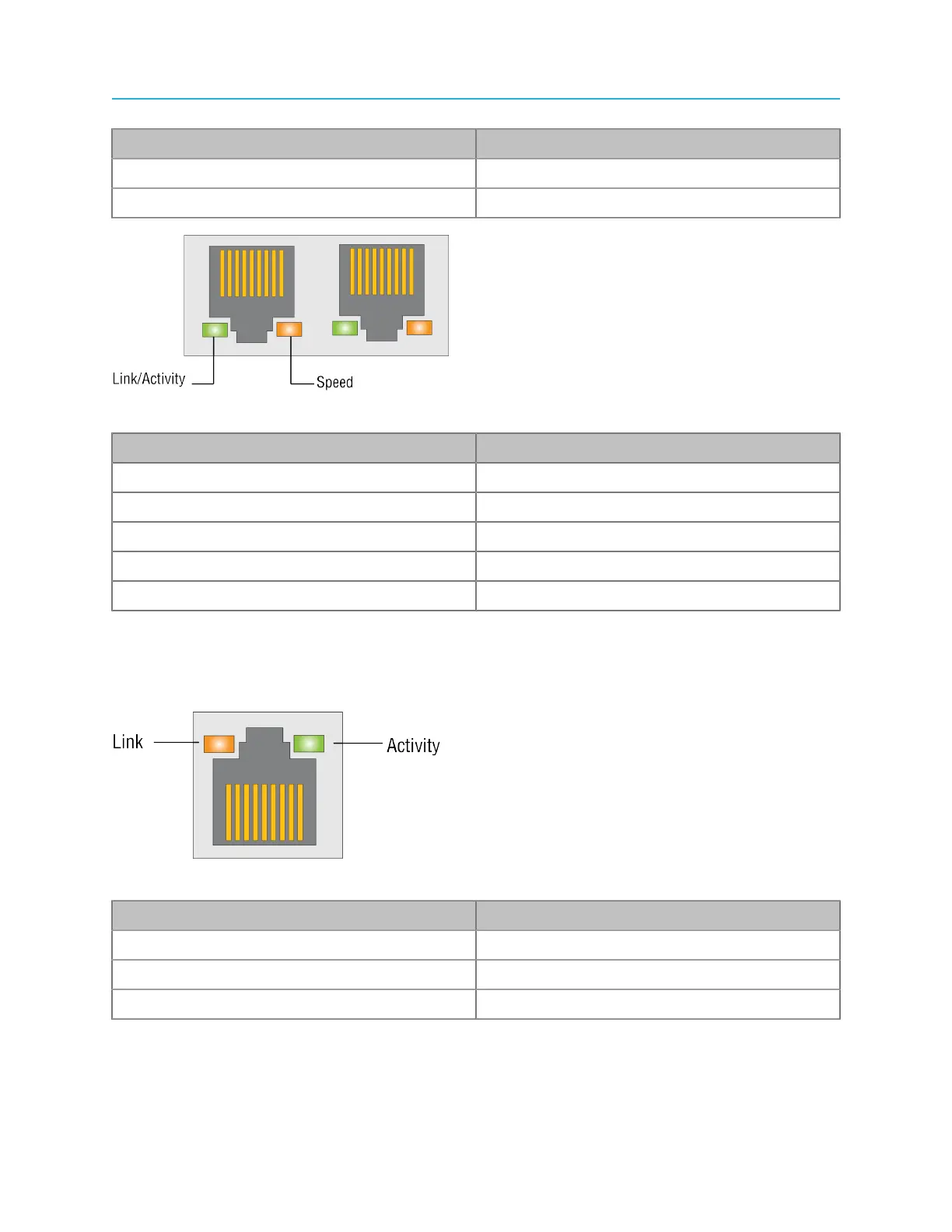

Figure 5-7: 1 Gb Ethernet port LEDs (green, amber, yellow)
LED/State Condition
Link/Activity: green 1 Gbps
Link/Activity: off No link
Speed: amber 1 Gbps
Speed: green 100 Mbps
Speed: off Inactive or 10 Mbps
1 Gb Ethernet LED states (for EFS connections)
Six 1 Gb Ethernet ports are provided for connecting up to three additional MediaDirectors in an Extended
File System (EFS) configuration.
Figure 5-8: 1 Gb Ethernet LED states (for EFS connections)
LED/state Condition
Link: green 100 Mbps
Link: amber 1 Gbps
Activity: green, blink Normal
