Harmonic Spectrum X - 10 Gb Ethernet Port LED States; 10 Gb Fiber Optic Port LED States

MediaCenter 2200B and 2200B-DS rear panel
LED/State Condition
Link/Activity: green 1 Gbps
Link/Activity: off No link
Speed: amber 1 Gbps
Speed: green 100 Mbps
Speed: off Inactive or 10 Mbps
10 Gb Ethernet port LED states
The 10 Gb Ethernet ports can be used for file transfers. The LEDs provide link, activity, and link speed
status.

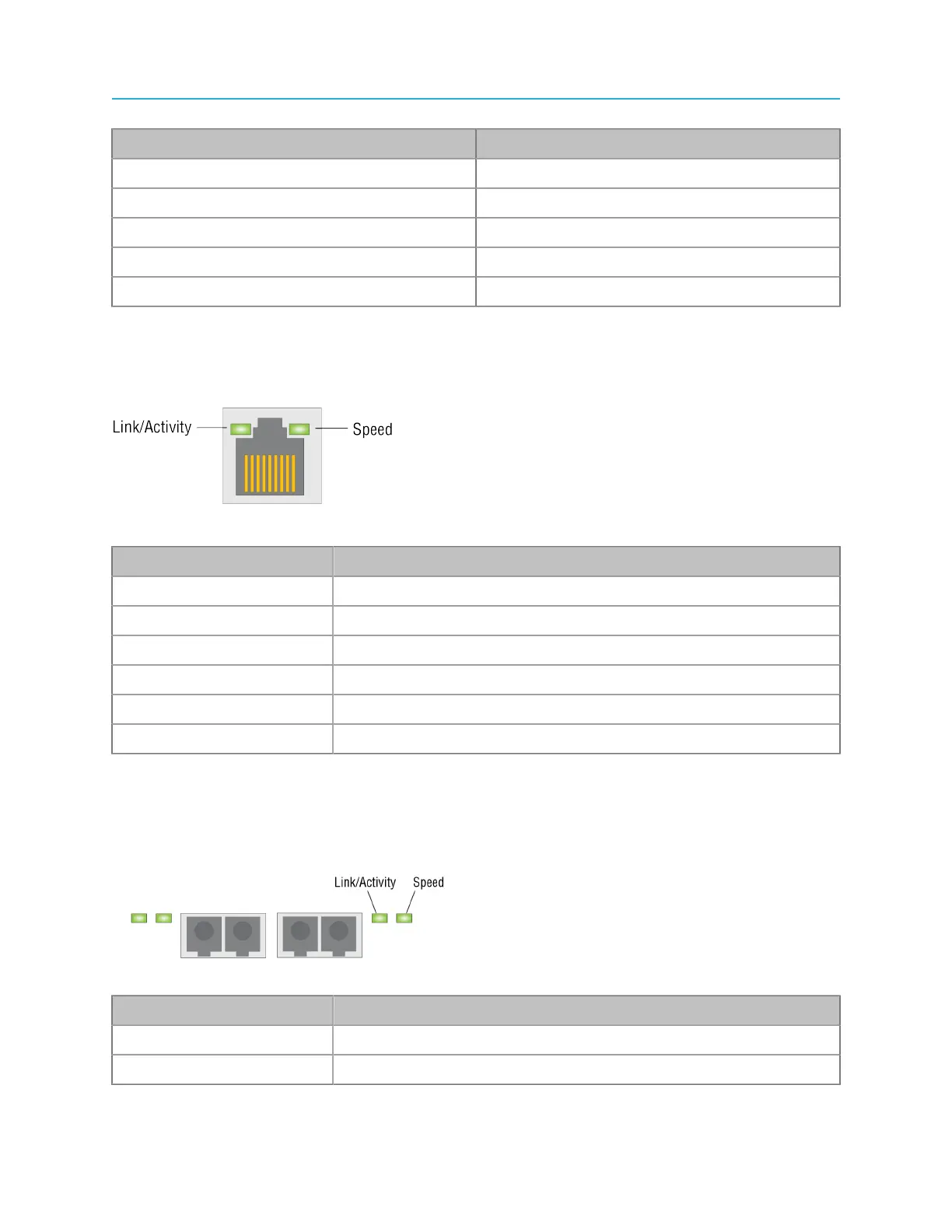

Figure 6-8: 10 Gigabit Ethernet port LED states
LED/State Condition
Link/Activity: green (blink) Network activity
Link/Activity: green (solid) Network link established
Link/Activity: off No link
Speed: green Network traffic at 10 Gbps
Speed: amber Network traffic at 1 Gbs
Speed: off Network traffic at 100 Mbps or no activity
10 Gb fiber optic port LED states
The optional 10 Gb fiber optic ports I/O module ports can be used for SMPTE 2022-6 video. The LEDs
provide information on link status, activity, and speed.
LED/State Condition
Link/Activity: green (blink) Network activity
Link/Activity: green (solid) Network link established
145 Spectrum System 8.4 Installation Guide
