Chapter 4: Spectrum X hardware reference
LED/State Condition
Speed: green Network traffic at 10 Gbps
Speed: amber Network traffic at 1 Gbs
Speed: off Network traffic at 100 Mbps or no activity
Power supply LED states
Each power supply includes an LED to indicate the status of AC power to the system.

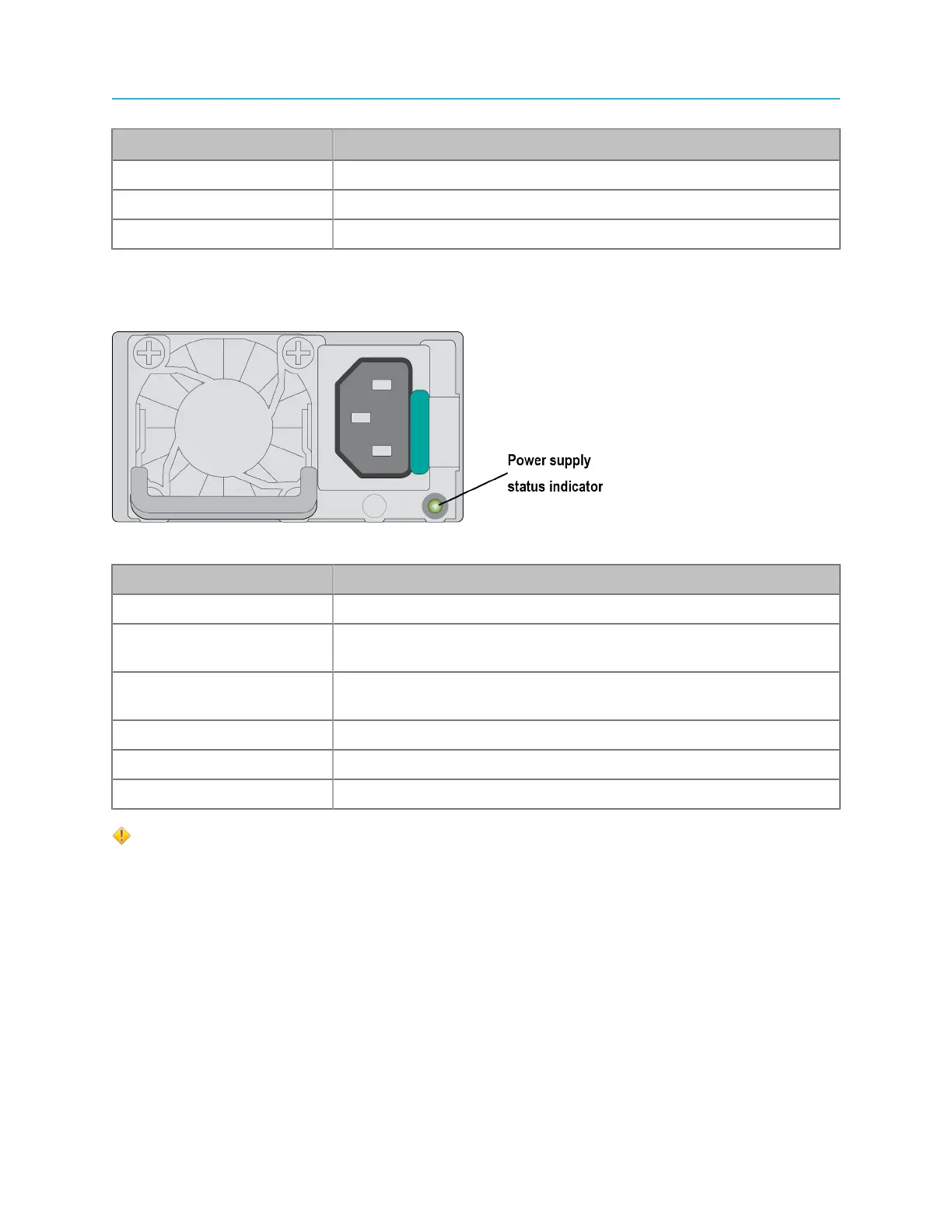

Figure 4-11: Power supply LED
LED state Condition
Off AC power is not connected.
Green, solid A valid AC source is connected to the power supply, and the power
supply is operational.
Green (1 Hz blink) AC is present, but the power switch on the front panel is off or in a
cold redundant state due to low system power load.
Green (2 Hz blink) Power supply firmware updating.
Amber, blink Power supply is operational, but experiencing a warning event.
Amber, solid AC power is lost or a power supply is shut down.
CAUTION: If two power supplies are used, they must be of the same type and have the
same maximum output power.
About Spectrum X storage
The Spectrum X in internal storage configuration provides four hot-swappable disk drives in a 3+1 RAID
set.
Refer to the following table for supported RAID configurations.
