Chapter 6: MediaCenter 2200B hardware reference
MediaCenter 2200B drive LEDs
Each drive includes a status and activity LED, which provide information on the RAID set state, drive
usage or faults, and a wink capability.

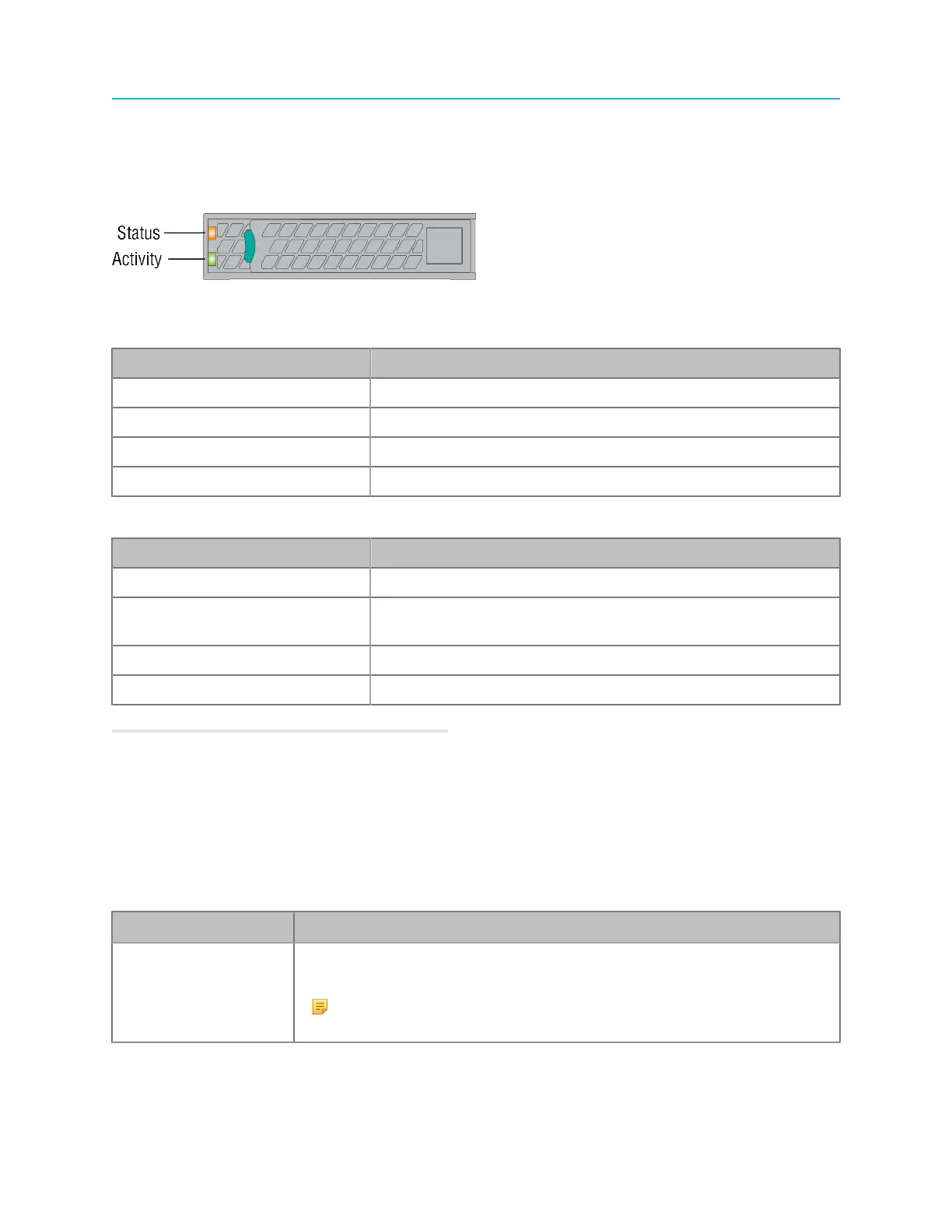

Figure 6-12: Drive LEDs
Table 6-2: Status LED (amber)
State Description
Solid Hard drive fault
Blink, 1 Hz RAID rebuild in progress
Blink, 2 Hz Drive being winked
Off No access and no fault
Table 6-3: Activity LED (green)
State Description
Solid Power on, no drive activity
Blink off when processing
command
Power on with drive activity
Off Power on and drive spun down
Blink Power on and drive spinning up
Related information
Gathering drive failure information on page 228
MediaCenter 2200B specifications
Find MediaCenter 2200B specifications here.
Table 6-4: Public Ethernet ports
Specification Details
2 × 10 Gb Ethernet
Optional: 2 × 10 Gb
Ethernet Optical SR
Spectrum API, Windows File System Interface (Samba), FTP, Apple Filing
Protocol
NOTE: If 10 Gb optical ports are installed, the onboard
10 Gb Ethernet ports are disabled.
148
