Chapter 10: MediaStore 7200 series hardware reference
Power supply unit LED indicators
Each power supply module has AC, DC, and Warning LED indicators.

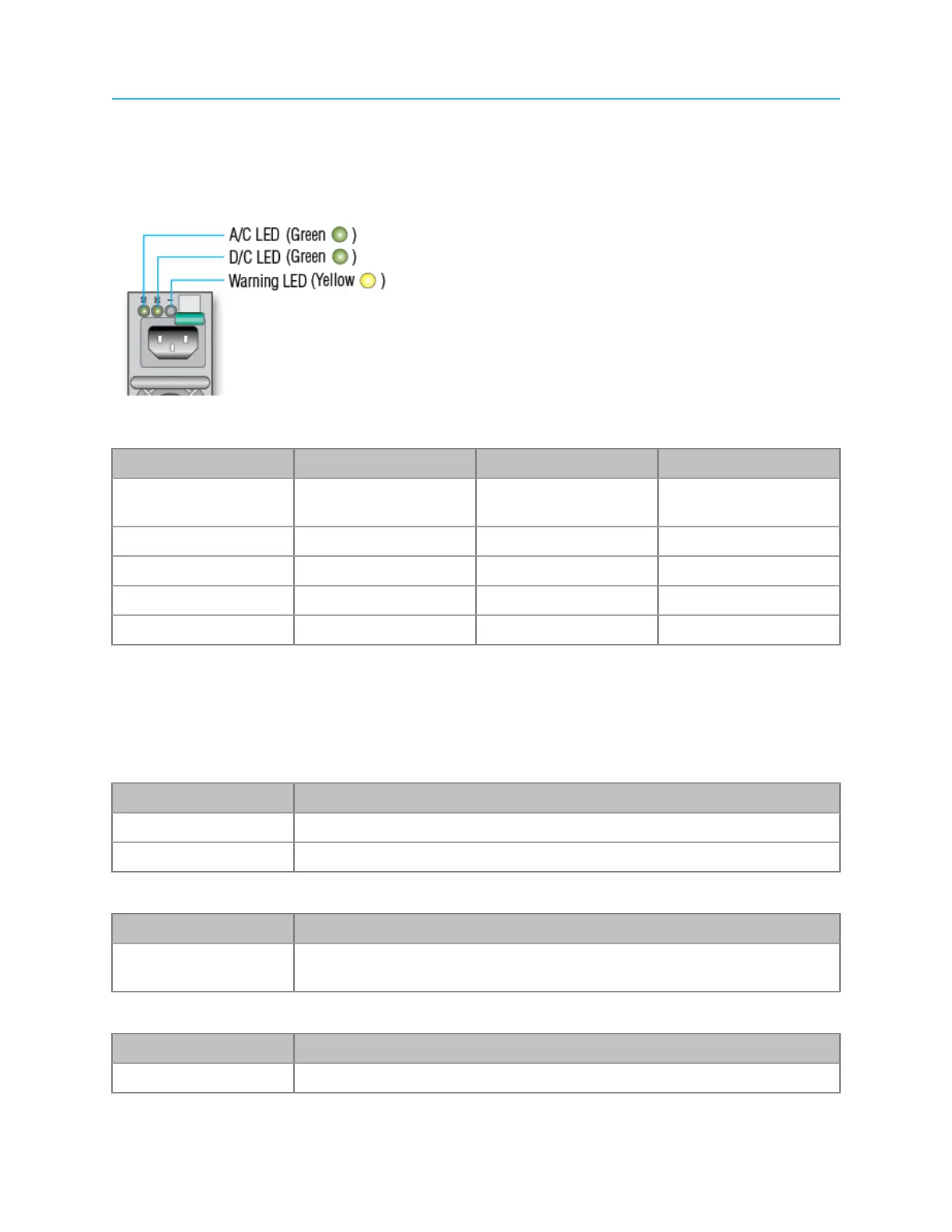

Figure 10-6: MediaStore 7200 power supply unit LED indicators
PSU state AC LED DC LED Warning LED
PSU normal, AC
present
Solid Solid Off
No AC to PSU Slow blink (1 Hz) Off Solid
PSU Warning Solid Off Slow blink (1 Hz)
PSU failure Off Off Solid
No AC input Off Off Off
MediaStore 7200 series specifications
The specifications for the MediaStore 7200 are described here.
Table 10-4: General information
Specification Detail
External interface 6 Mini SAS HD ports (SFF-8644)
Total capacity 12 or 24 drives
Table 10-5: System availability
Specification Detail
Hot-swappable
components
Fans, disk drives, power supplies
Table 10-6: Dimension
Specification Detail
Width 483 mm (19.01”)
