Component Description
Redundant Power
Supplies
Two redundant power supplies are provided, each with an independent
AC In connector. If one supply fails, the load is transferred to the
remaining supply without interruption of service. To take full advantage of
the redundant supplies, Harmonic recommends that you use separate,
isolated power sources for each AC input.
Filler Panels Filler panels may cover the slots for I/O modules when the chassis ships
from the factory.
Power supply LED states
The power supply LED can help you determine the state of the power supply.

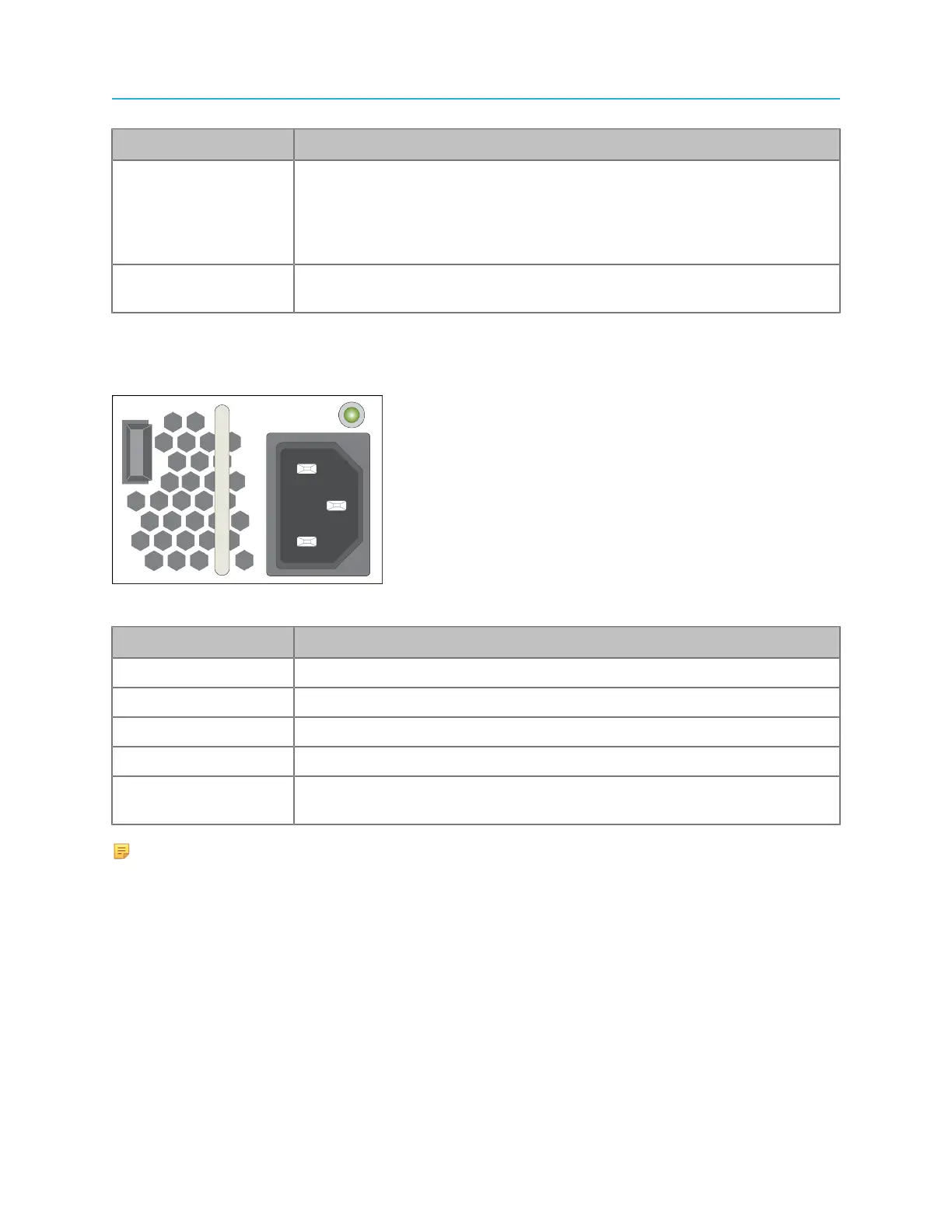

Figure 7-3: Power Supply LED States
LED state Condition
Off No power
Green, solid On
Green, blink Power attached, unit on standby
Red, solid Power supply failure
Red, blink (1 second
on/ 1 second off )
No AC power to this power supply
NOTE: When a power supply fails, an audible alarm sounds.
153 Spectrum System 8.4 Installation Guide
