MediaDirector bezel
MediaDirector bezel
The bezel provides power and status indicators to quickly assess the status of the MediaDirector
products.

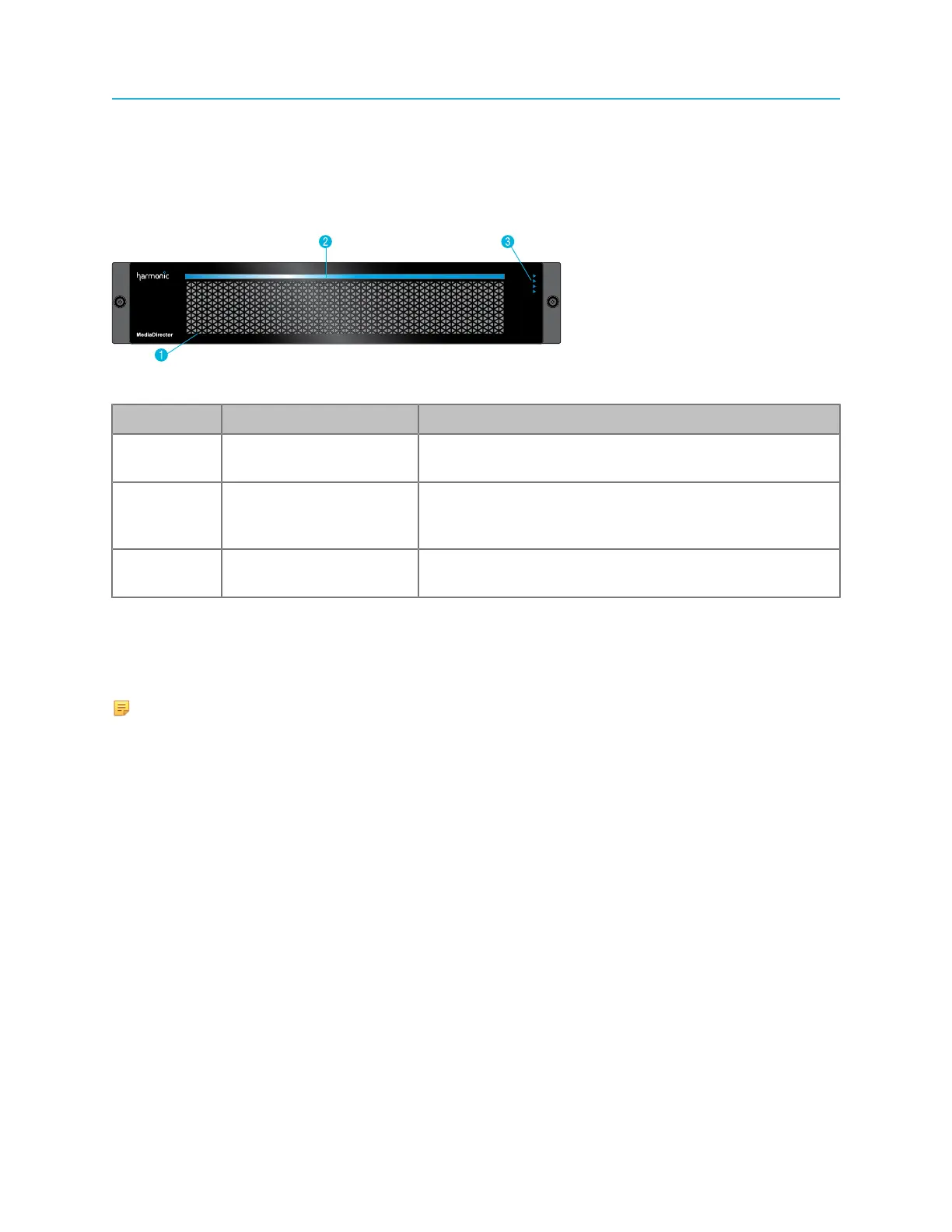

Figure 5-1: MediaDirector bezel
Key Component Detail
1 Air vents Air vents provide optimum air flow from the internal fans.
Do not obstruct the air vents.
2 Power indicator This indicator lights when the system is powered on,
and also provides a "wink" function that identifies a
selected MediaDirector
3 Status LEDs The status LEDs indicate status for the file system,
RAID set,and Ethernet network connection.
MediaDirector and MediaCenter 2200B front panel buttons
Power and reset buttons are provided on the right-hand rack ear behind the bezel. To access them,
remove the bezel by loosening the captive thumb screws and pulling the bezel straight back.
NOTE: The physical buttons are only accessible with the use of a small tipped tool.
127 Spectrum System 8.4 Installation Guide
