Rear panel components
Rear panel components
The rear panel includes dual redundant power supplies and SAS expander modules.

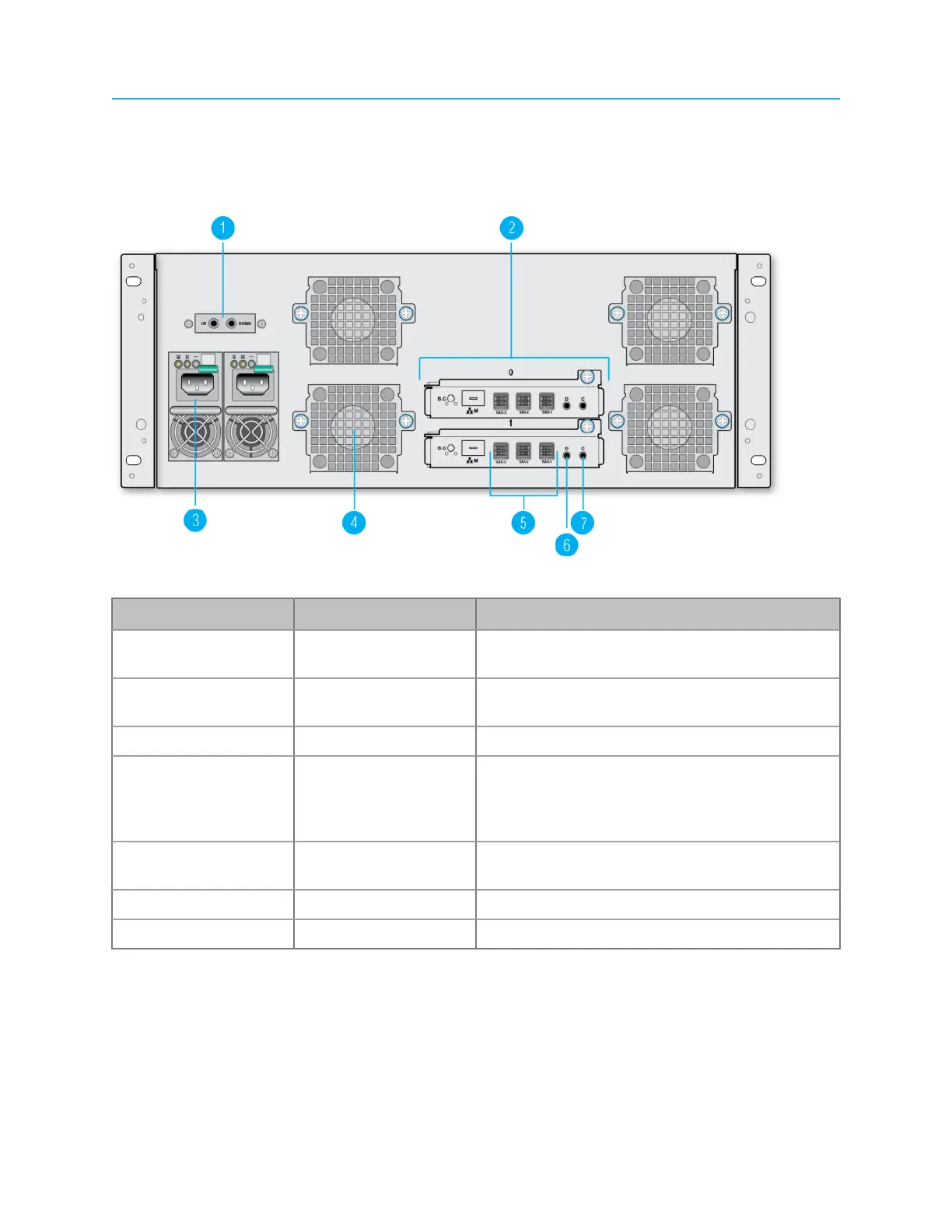

Figure 10-5: MediaStore 7200 rear panel
Key Component Description
1 Serial port for remote
power on/off
Do not use.
2 Expander modules Provides SAS I/O ports. May be replaced in the
event of a failure.
3 Power supply units Dual redundant power supplies.
4 Fan modules Four fan modules maintain all system
components below their maximum temperature,
assuming the ambient temperature is below 35
degrees Celsius.
5 SAS I/O ports Used for connecting the MediaStore to the
MediaCenter.
6 Debug port Unused.
7 Console port Unused.
223 Spectrum System 8.4 Installation Guide
