Chapter 6: MediaCenter 2200B hardware reference

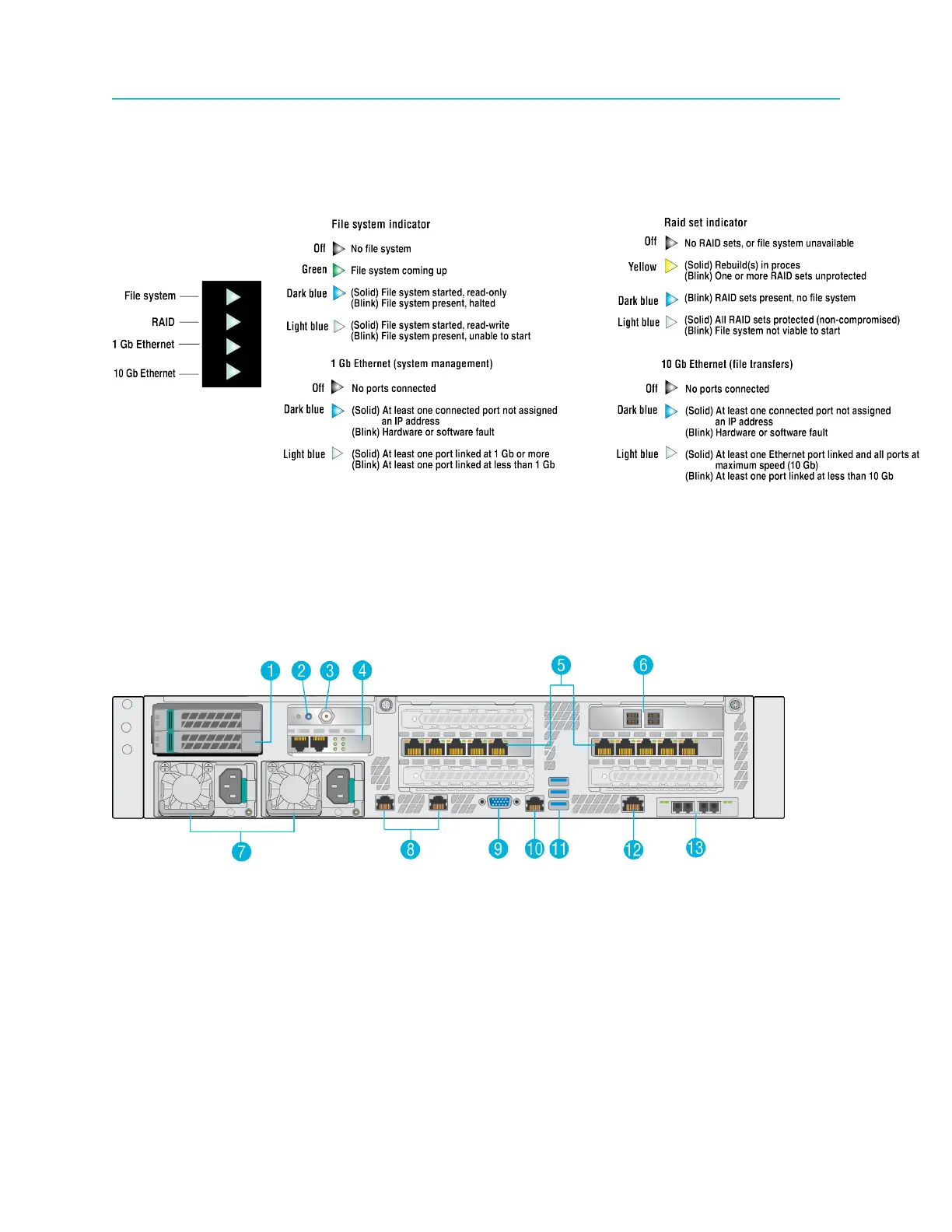

MediaCenter 2200B status LEDs
The MediaCenter 2200B status LEDs indicate basic system status.
Figure 6-3: MediaCenter 2200B status LEDs
MediaCenter 2200B and 2200B-DS rear panel
The MediaCenter 2200B and 2200B-DS rear panels include connections for I/O modules, external
storage, and 10 Gb Ethernet ports for file transfers.
Figure 6-4: MediaCenter 2200B-DS rear panel
