ChannelPort module rear panel
The rear panel component functionality will vary based on the channel mode of the ChannelPort module.
ChannelPort 8100 rear panel: Enhanced Channel mode
Review to the diagram and the table for details on the rear panel component functionality when
theChannelPort 8100 is in Enhanced Channel mode.

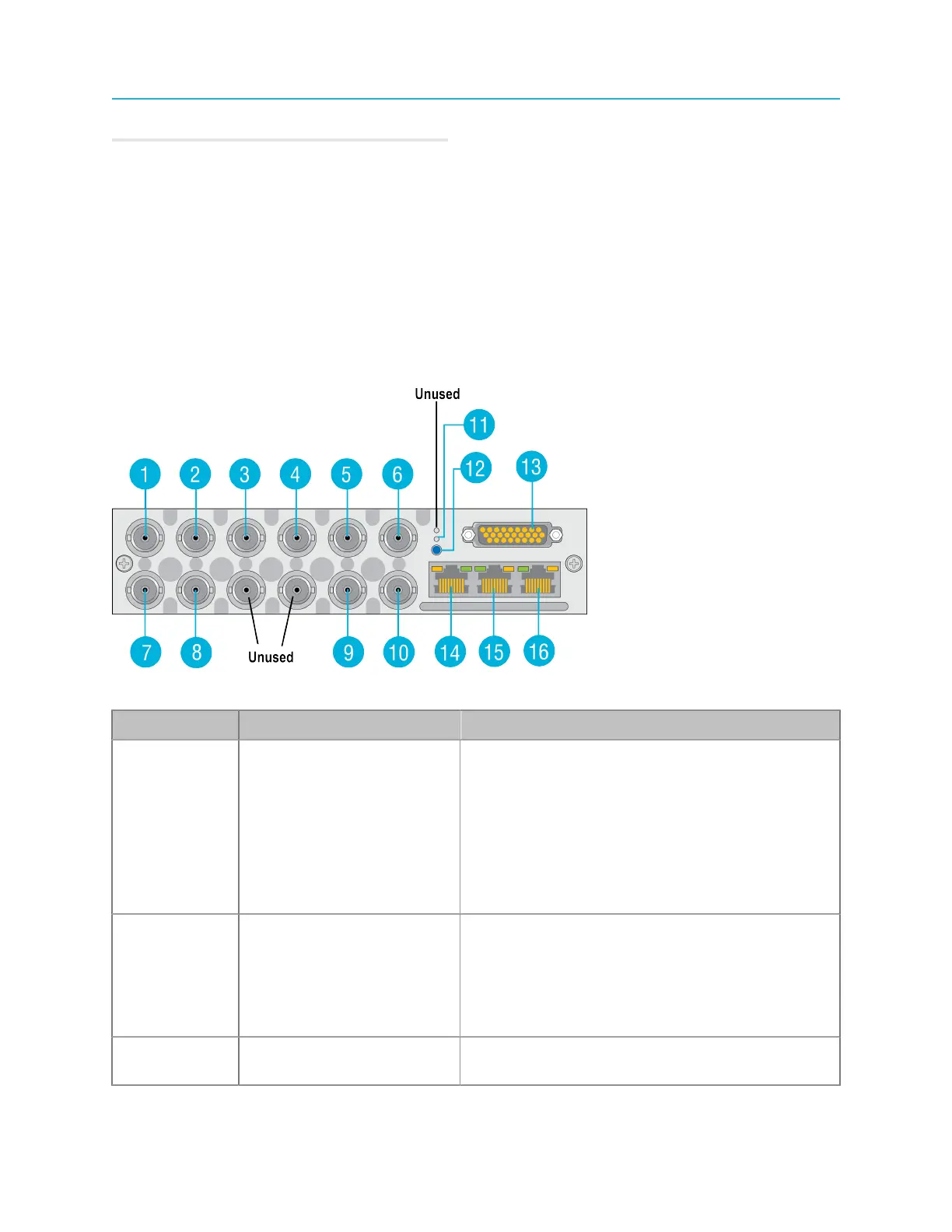

Figure 8-1: ChannelPort 8100 rear panel (Enhanced Channel mode))
Key Component Description
1 External Input 1/External
Key Input
Use for video input or External Key input. Refer
to “Enabling Enhanced Channel mode” in the
Harmonic SystemManager User Guide for
instructions on configuring Enhanced Channel
mode to enable Key/Fill.
Refer to the Spectrum X and ChannelPort
Template Authoring Guide for information on
External Key/Fill.
2 Video Output (Primary) Use for primary video output or for HD-branded
output when in Independent Branding mode.
Refer to “Configuring a ChannelPort channel” in
the Harmonic SystemManager User Guide for
instructions on configuring Independent Branding
mode.
3 Video Output (Secondary) Use for secondary video output or for SD-branded
output when in Independent Branding mode.
