ChannelPort module rear panel

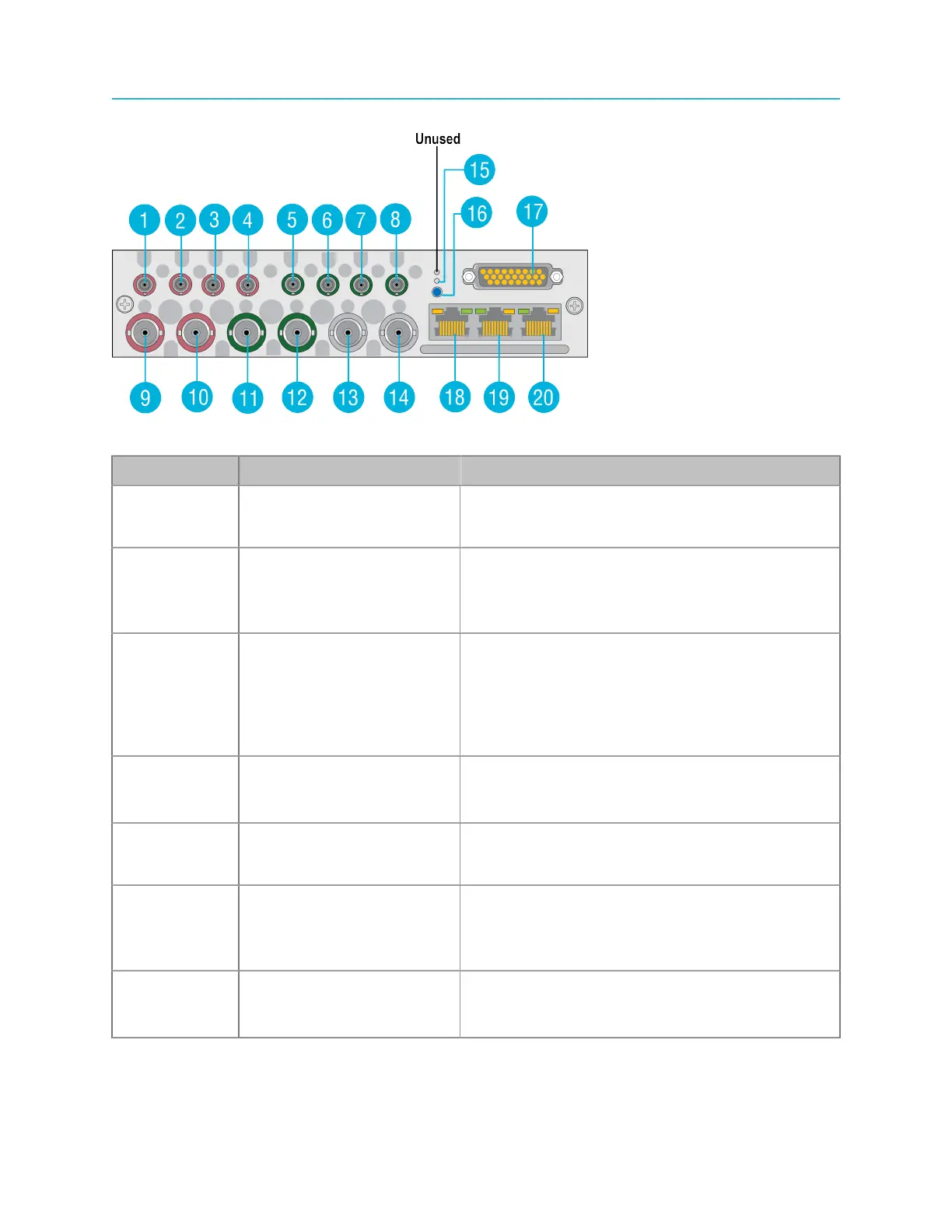

Figure 8-4: ChannelPort 8200 rear panel (Standard Channel mode)
Key Component Description
1 External Input 1
Channel A
Use for video input on Channel A.
2 External Input 2/Clean
Primary Video Output
Channel A
Use for video input or for clean primary video
output on Channel A. Note that if used for clean
video output, “clean” output refers to video output
with no graphics or overlays.
3 Video Output (Secondary)
Channel A
Use for secondary video output or for SD-branded
output on Channel A when in Independent
Branding mode. Refer to “Configuring a
ChannelPort channel” in the Harmonic
SystemManager User Guide for instructions on
configuring Independent Branding mode.
4 Video Output (Primary)
Channel A
Use for primary video output or for HD-branded
output on Channel A when in Independent
Branding mode.
5 External Input 1
Channel B
Use for video input on Channel B.
6 External Input 2/Clean
Primary Video Output
Channel B
Use for video input or for clean primary video
output on Channel B. Note that if used for clean
primary video output, “clean” refers to video
output with no graphics or overlays.
7 Video Output (Secondary)
Channel B
Use for secondary video output or for SD-branded
output on Channel B when in Independent
Branding mode.
