Connecting MediaDirectors and MediaStores using SAS

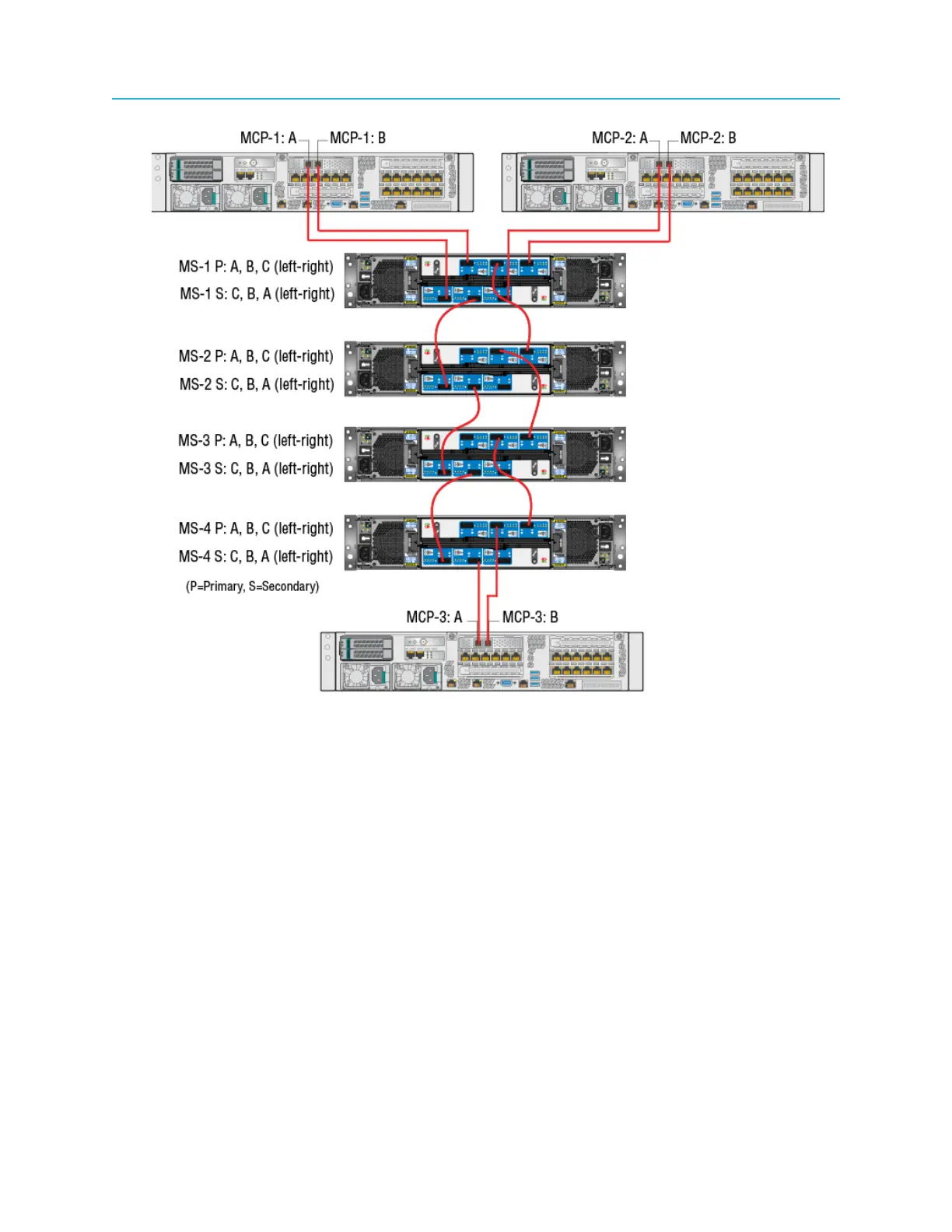

Figure 2-18: Three MediaDirector 2252Bunits connected to four MediaStore 5000 series units with
SAS
Using SAS cables, make the following connections.
1. MCP-1: A to MS-1 S: C
2. MS-1 S: B to MS-2 S: C
3. MS-2 S: B to MS-3 S: C
4. MS-3 S: B to MS-4 S: C
5. MS-4 S: B to MCP-3: A
6. MCP-1: B to MS-1 P: A
7. MS-1 P: B to MS-2 P: C
8. MS-2 P: B to MS-3 P: C
9. MS-3 P: B to MS-4 P: C
10. MS-4 P: B to MCP-3: B
47 Spectrum System 8.4 Installation Guide
